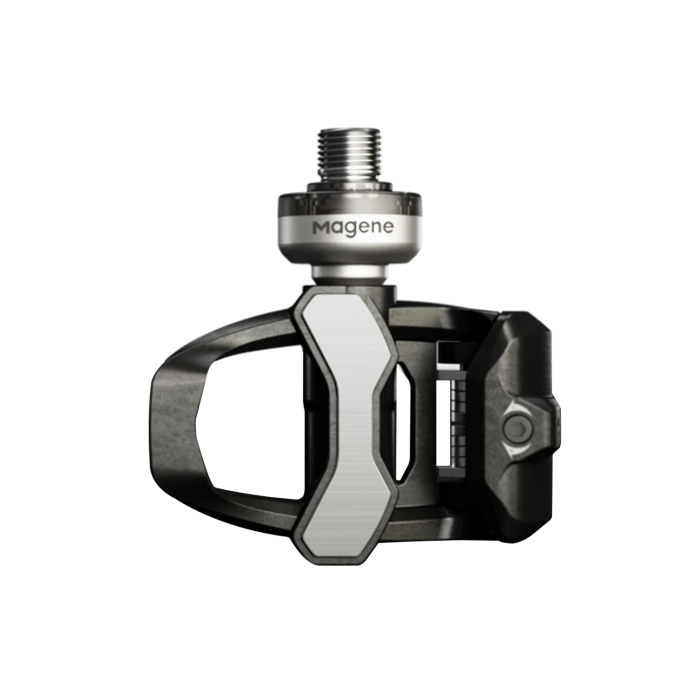

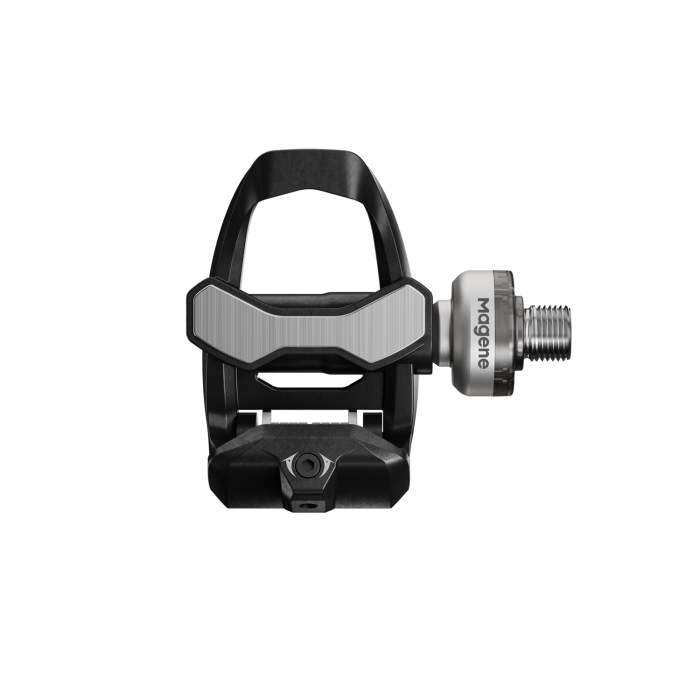

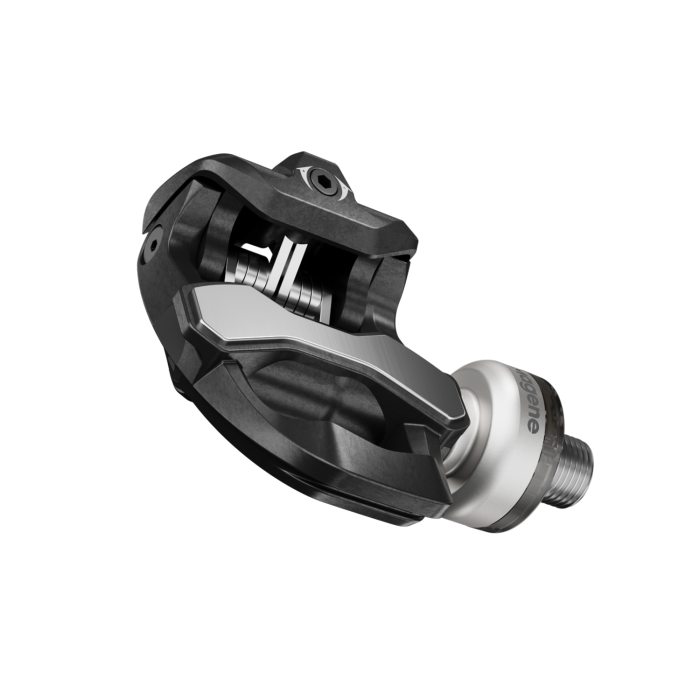

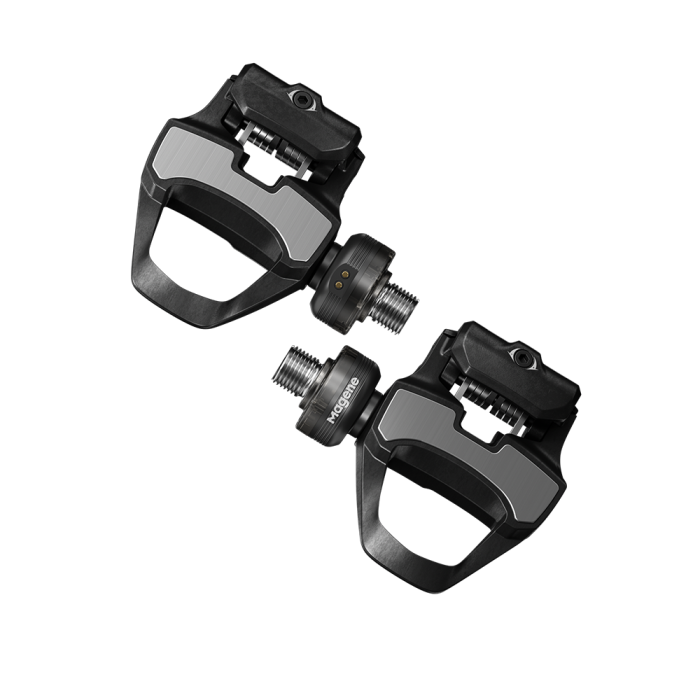

Magene P715 Pedal-Based Power Meter

Magene P715 Pedal-Based Power Meter

Dual-Sided Pedal Power Meter – ±1% Accuracy, 1-Minute Install, KEO or SPD-SL

🔥 Swap your pedals and get dual-sided power on any bike 🔥

🚲 Dual-sided measurement with ±1% power accuracy

🚲 Two versions: P715 K (Look KEO cleats) and P715 S (Shimano SPD-SL cleats)

🚲 Composite carbon fibre body with stainless steel spindle, 314 g (K) / 318 g (S) per pair

🚲 Up to 120 hours per charge (Magene lab test), magnetic charging, full charge in about 3 hours

🚲 7 metrics: power, cadence, left/right balance, torque effectiveness, pedalling smoothness, power phase and riding position

🚲 ANT+ and Bluetooth dual protocol, IPX7 waterproof

🚲 55 mm Q-factor, stack height 11 mm (K) / 13 mm (S)

More Information

The P715 measures the power of both legs separately with dual-sided power meter spindles. Because the power meter module sits close to the pedal's output point, it reduces wattage loss and transmission error. An embedded gyroscope tracks angular velocity to calculate instantaneous power at each pedalling angle, and a temperature compensation algorithm keeps readings accurate across changes in altitude and temperature.

The pedals are made of composite carbon fibre with precipitation-hardened stainless steel spindles. They are light, stiff, and passed Magene's 1 million pedal stroke test. Installation is as simple as fitting any road pedal: just use a wrench. Magene's testing shows it can be done in under a minute, and because it is pedal-based, it is easy to move between bikes.

Advanced metrics include power phase, riding position, left/right balance, pedalling smoothness and torque effectiveness. Note that power phase and riding position only display on bike computers that support them, such as Garmin.

Compatibility

Works with mainstream bike computers over ANT+ or Bluetooth, including Magene, Garmin, Wahoo, iGPSPORT, Bryton, XOSS and BLACK BIRD, plus apps such as Zwift and Strava. Calibrate automatically in the Magene Utility app or manually on a compatible bike computer, and set your crank length in the app or on the computer before riding.

Watch: Magene P715 Pedal-Based Power Meter

Available Options

✔ P715 K – Look KEO compatible

✔ P715 S – Shimano SPD-SL compatible

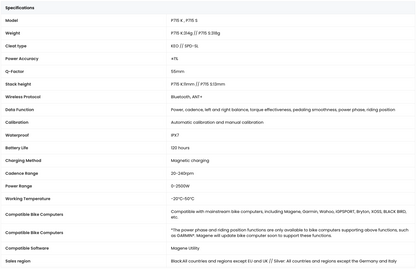

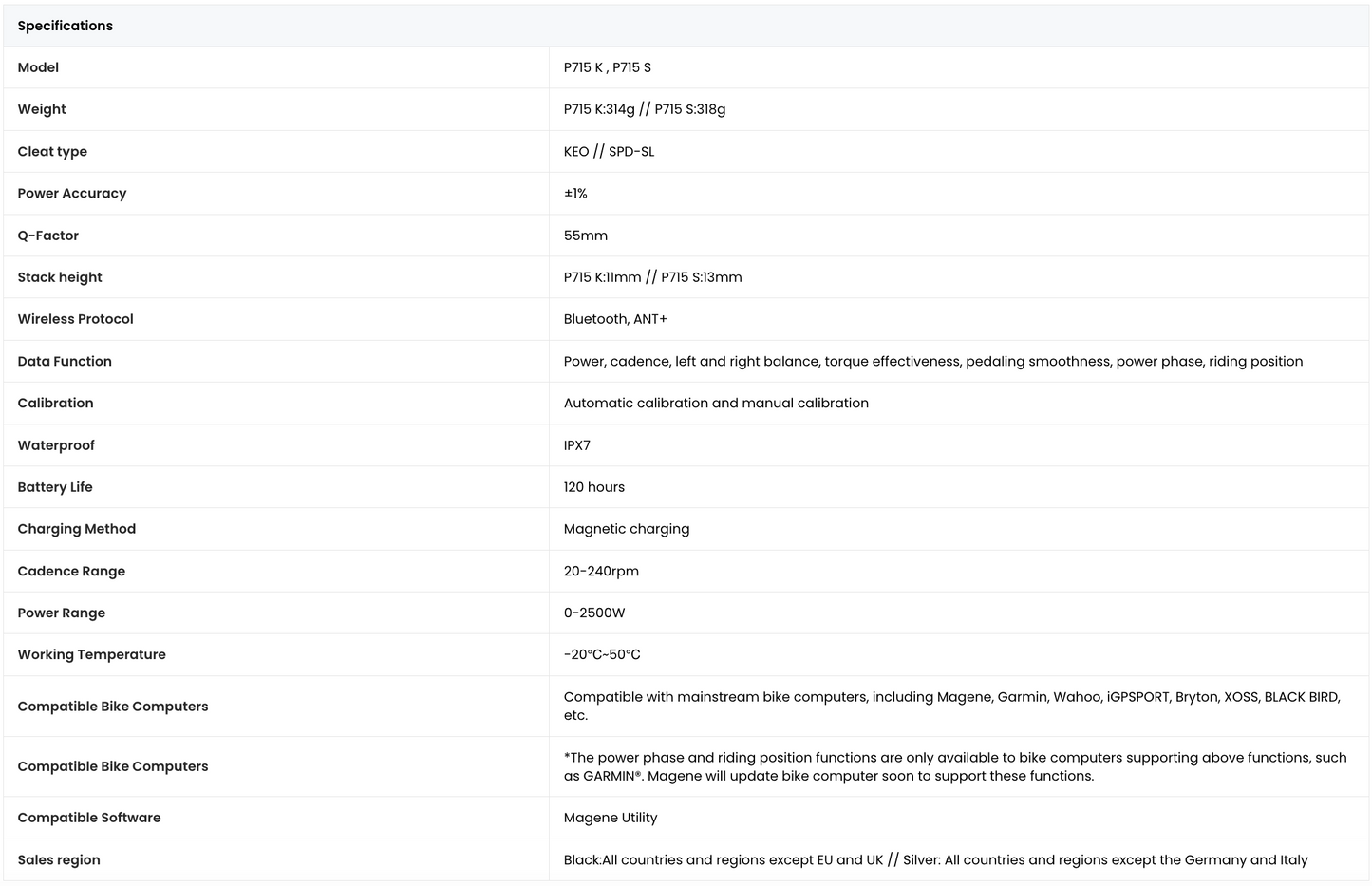

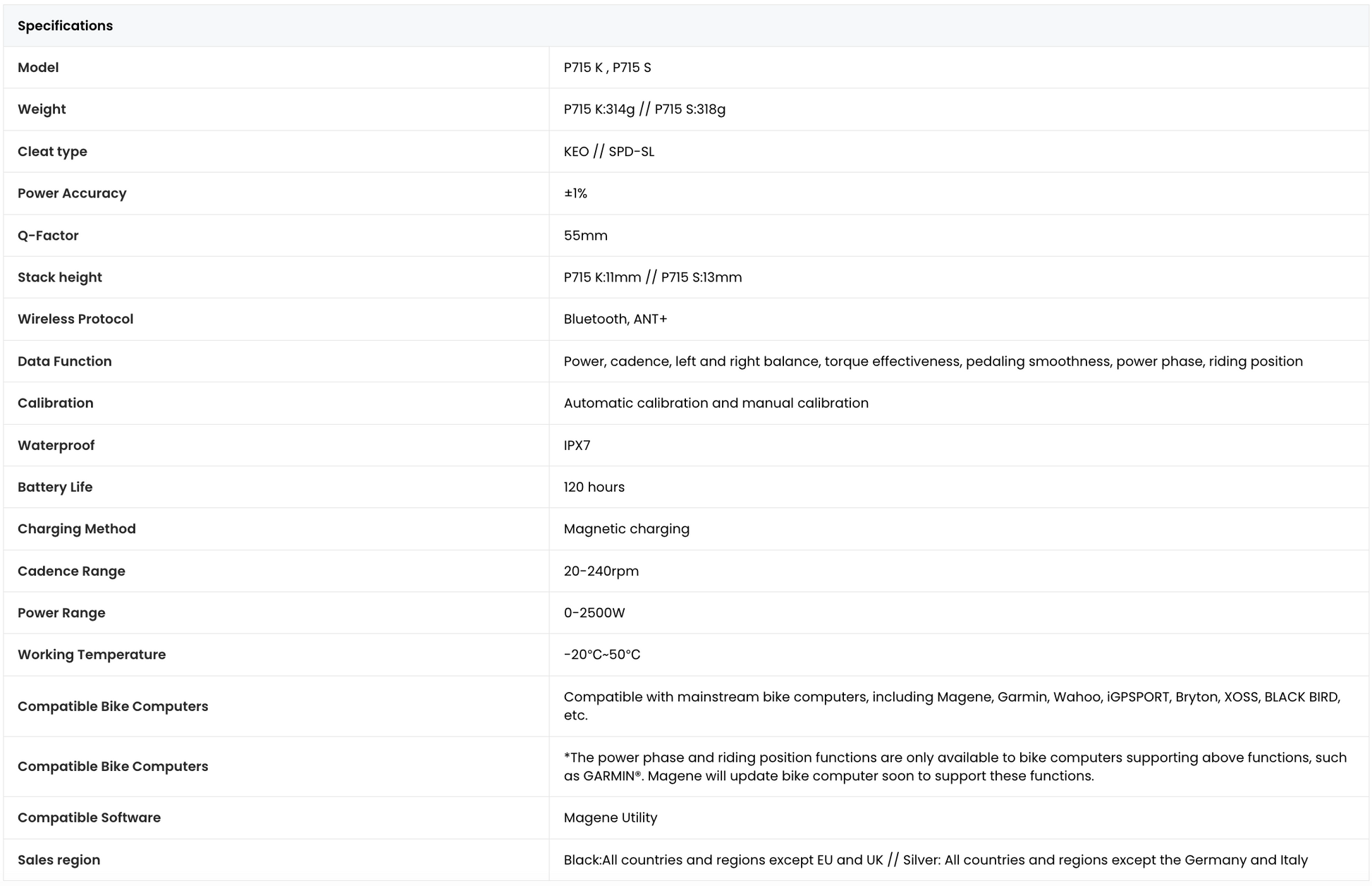

Specifications

✔ Measurement: Dual-sided pedal spindles with embedded gyroscope and temperature compensation

✔ Power Accuracy: ±1%

✔ Power Range: 0–2500 W

✔ Cadence Range: 20–240 rpm

✔ Data: Power, cadence, left/right balance, torque effectiveness, pedalling smoothness, power phase, riding position

✔ Calibration: Automatic and manual

✔ Connectivity: ANT+, Bluetooth

✔ Battery Life: Up to 120 hours (Magene lab test)

✔ Charging: Magnetic, about 3 hours for a full charge

✔ Waterproof: IPX7

✔ Working Temperature: −20°C to 50°C

✔ Weight: P715 K 314 g / P715 S 318 g (pair)

✔ Cleat Type: KEO (K) / SPD-SL (S)

✔ Q-Factor: 55 mm

✔ Stack Height: P715 K 11 mm / P715 S 13 mm

✔ Compatibility: Magene Utility app; Magene, Garmin, Wahoo, iGPSPORT, Bryton, XOSS, BLACK BIRD and other mainstream bike computers

✔ Includes: Power meter pedals (pair), crank washers x2, charging cable, quick start guide

Kindly note: stock availability shown online may not be up to date. Please WhatsApp us to confirm before ordering.
