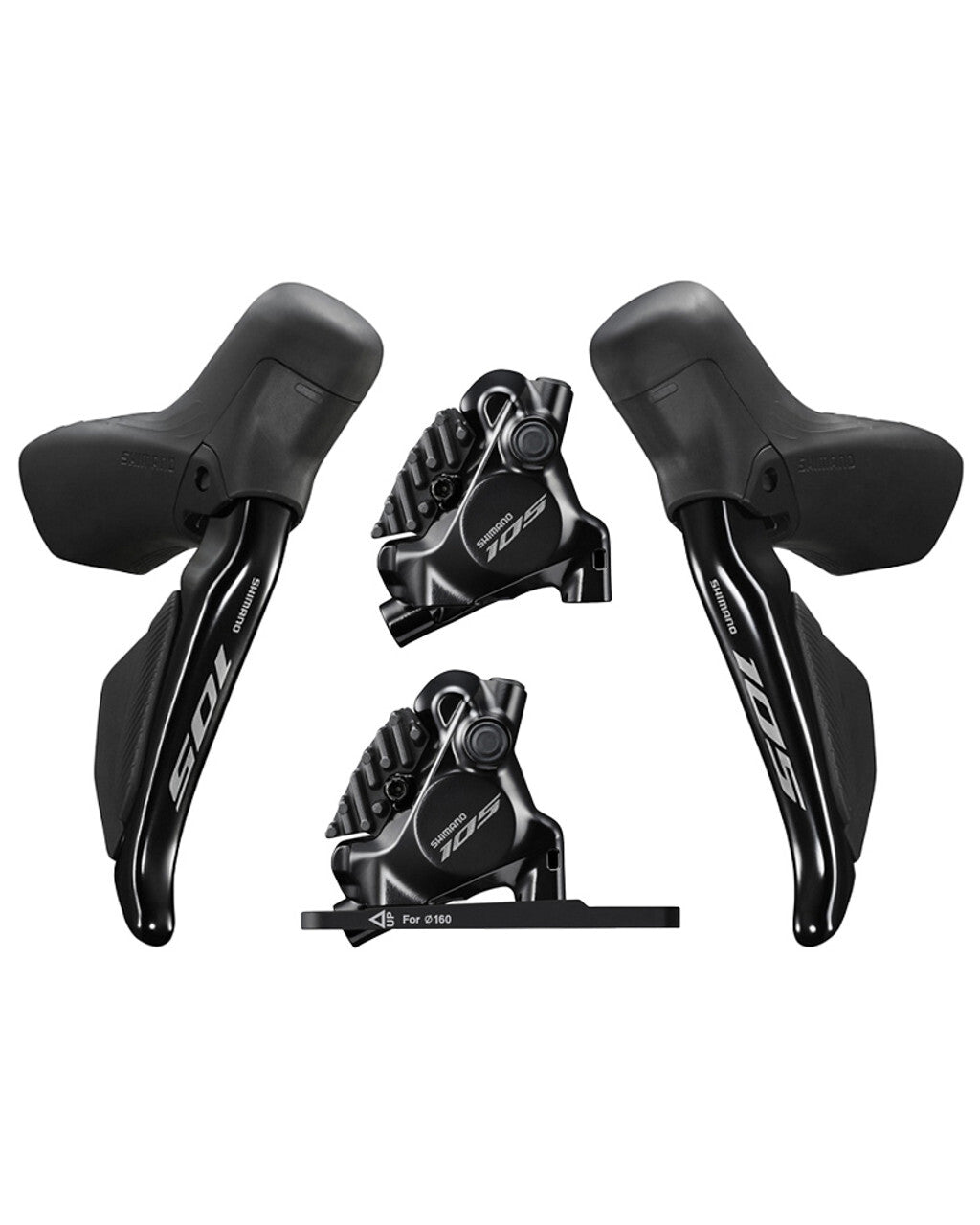

Shimano R7170 105 Di2 Shifter Brake Caliper Set, J-Kit | ST-R7170 & BR-R7170

Kindly Note:

This product does not come with retail packaging.

The current availability may not be up to date. We encourage you to contact us via WhatsApp for confirmation.

Shimano 105 R7170 Di2 2x12 Speed Shifter Set

Function and technologies inherited from Dura-Ace and Ultegra, Shimano 105 is the culmination of years of research and development. With a shared Di2 platform, sophisticated ergonomics, Shimano 105-optimized gear combinations, and an exceptional brake system, the new Shimano 105 marks a new era of affordable performance. Sleek wireless cockpit brings simplicity and clean aesthetics. Wireless connection enhances the aerodynamic effect and easy maintenance.

Never skip a shift as you fatigue or encounter an unexpected climb. Worry-free Di2 shifting and a compact R7100 series shifter keeps you in control in any situation. The difference is made over the course of a ride, saving you energy with every gear change, allowing you to focus on the scenery, your effort, and your friends.

The all-new lever shape brings comfort and control in every riding position. Raised hood peak improves ergonomics, while a longer hood body increases hand support. Compact, ergonomic performance, custom button function and adjustable ergonomics cascaded from Dura-Ace.

Shifting is automatically completed at the touch of a switch, eliminating the need for the amount of stroke required for mechanical shifting. The rider can shift into the most appropriate gear at will, depending on the ever-changing conditions, speed, and road surface. This is a great advantage not only in the world of racing, but for all cyclists.

With a new piston design, race-ready braking is now available for even more riders. The new Shimano 105 BR-R7170 brake caliper allow riders to progress in their cycling journey by learning the joys of braking and pushing their limits with better sensitive braking control in a wider control zone and 10% wider pad clearance.

105 ST-R7170 is compatible with wireless connect and easy to change of CR1632 shifter batteries that provide high electronic energy efficiency of 3.5 to 4 years of battery life.

Shifter Model: ST-R7170-L / ST-R7170-R

• Series: 105 R7100
• Front speed: 2
• Rear speed: 12
• Average weight: 227g
• Firmware update by E-Tube project: ✔
• Remote switch: ✔
• Port for remote sprinter shifter (pcs): 0
• Brake lever (clamp band): 23.8-24.2mm
• Brake lever (reach adjust): ✔
• Brake lever (fluid): Shimano mineral oil
• Brake lever (free stroke adjust): ✔
• Brake lever (servo wave): ✔
• Brake hose (Kit): SM-BH90-JK-SSR
• Brake lever (funnel bleeding): ✔
• Brake lever (hose joint): Straight
• Battery: 2 x CR1632
• Compatible with wired & wireless Di2 shifting: ✔
• SD300 port (pcs): 1
• Port for SD300 satellite shifter (pcs): 1

Brake Caliper Model: BR-R7170

• Series: 105 R7100
• Average weight: 173g
• Ice technologies pad compatible caliper: ✔
• Brake hose color (kit): Black
• Caliper fixing bolt (anti loosen method): Screw fixing pin
• Caliper fixing bolt (tool size): 4mm
• Fixing screw spec for rear mount (10 mm mount): ✔
• Fixing screw spec for rear mount (15 mm mount): ✔
• Fixing screw spec for rear mount (20 mm mount): ✔
• Fixing screw spec for rear mount (25 mm mount): ✔
• Fixing screw spec for rear mount (30 mm mount): ✔
• Fixing screw spec for rear mount (35 mm mount): ✔
• Hose joint: Straight
• Mount type: Flat
• One way bleeding: ✔
• Pad mount: Pad axle
• Piston: 2
• J-Kit Spec (for OEM):  ✔
• Brake Fluid: Shimano mineral oil
