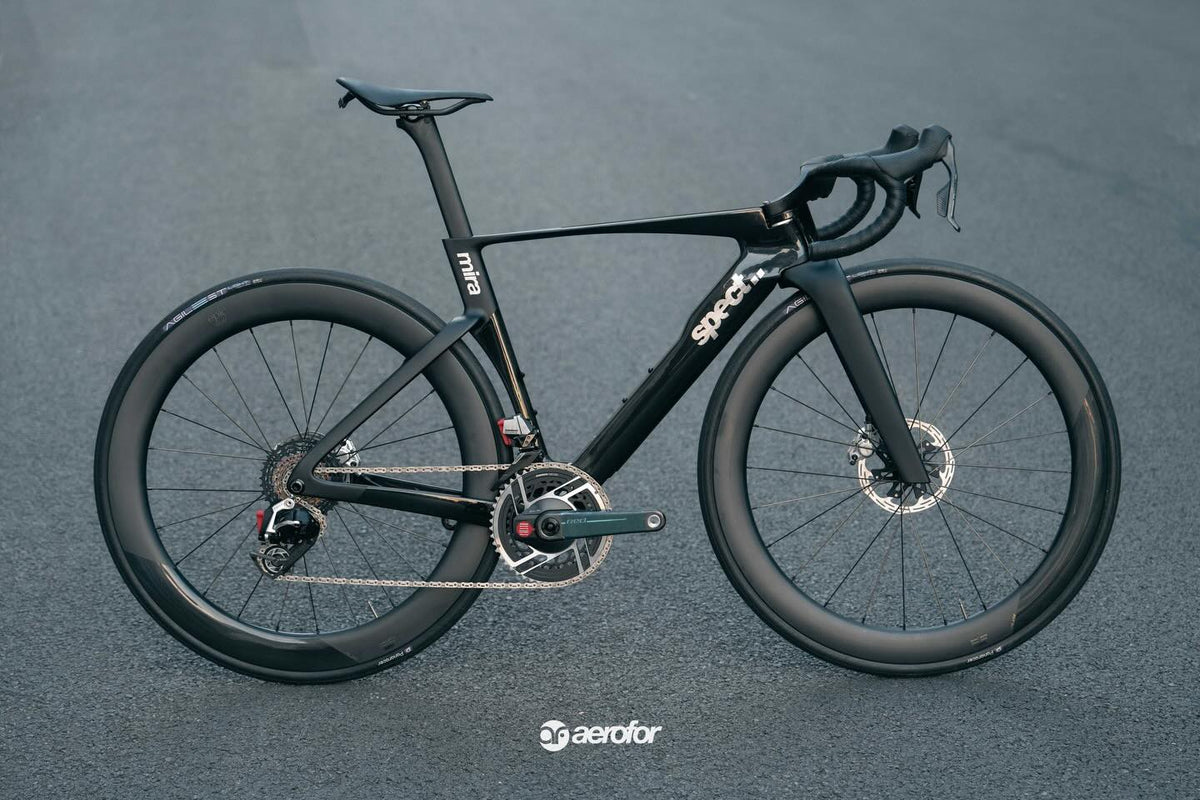

Spect Mira Carbon Road Bike Frameset
Spect Mira Carbon Road Bike Frameset
Couldn't load pickup availability
Kindly Note:
The stock availability may not be up to date. Kindly contact us via WhatsApp for confirmation.

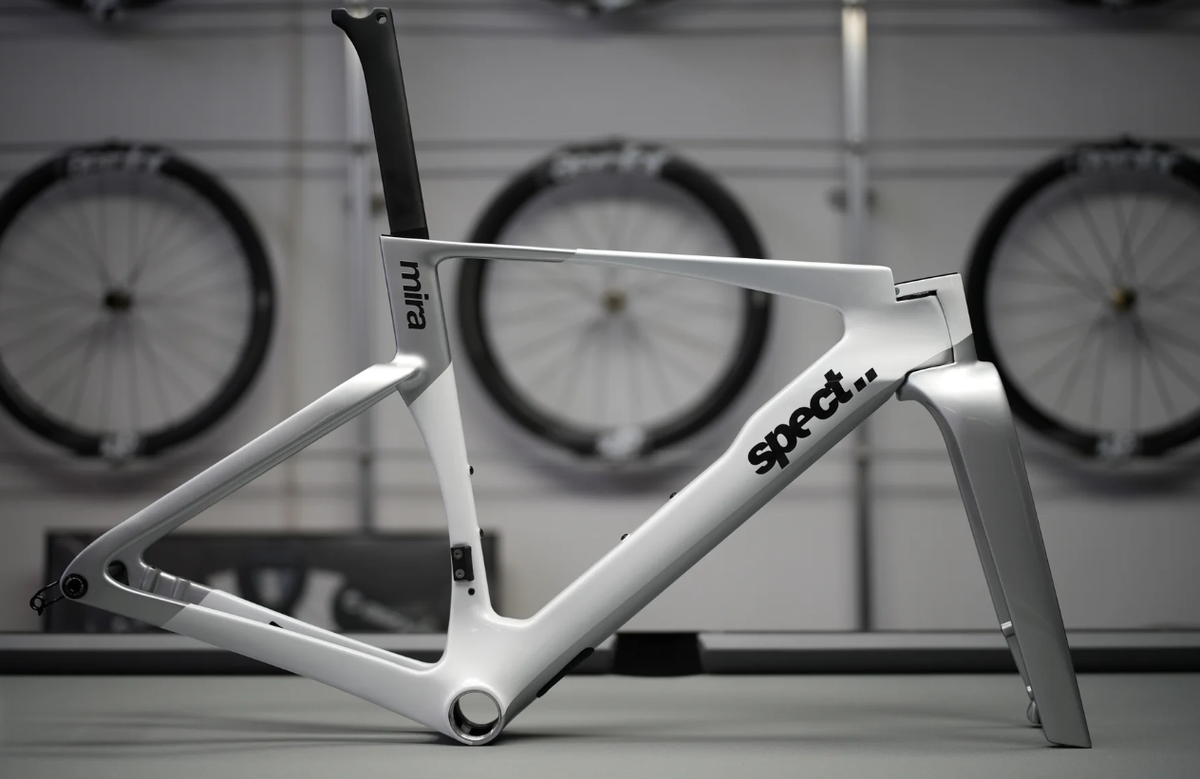

Spect Mira Aero Road Frameset
Pure Aero Race Frameset with Integrated Cockpit Included
Available in sizes 48 / 51 / 54 / 56 / 58.
🔥 Built to Be Seen. Built to Be Fast. 🔥
🚲 T1100 + M90 High-Modulus Carbon Blend
🚲 Proprietary Resin Formula for +12% Strength
🚲 Pure Aero Road Race Geometry
🚲 405mm Chainstay for Stable, Sharp Handling
🚲 42mm External Head Tube / Steerer for Higher Steering Stiffness
🚲 T47 x 86 Threaded Bottom Bracket
🚲 UDH (Universal Derailleur Hanger)

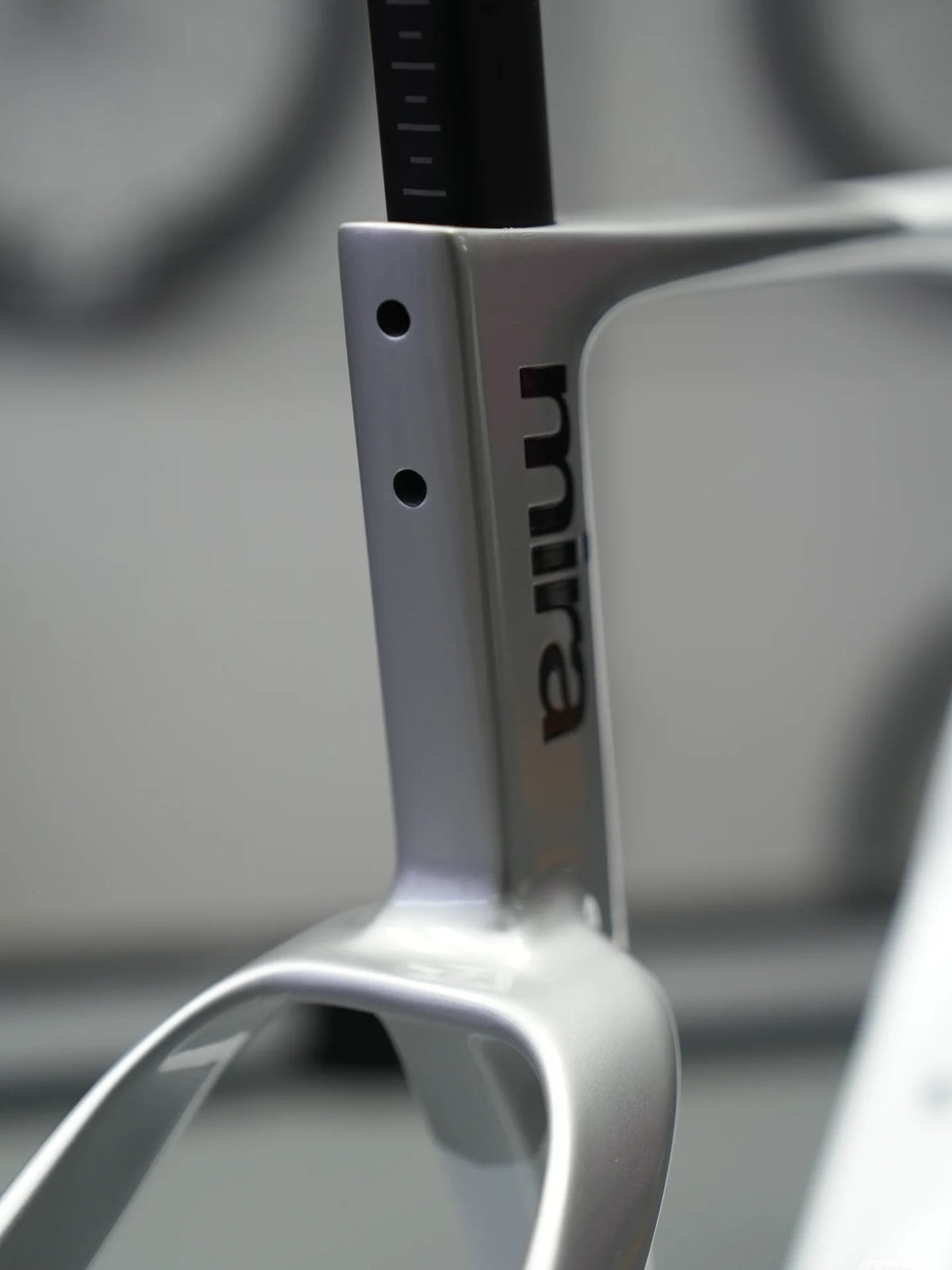

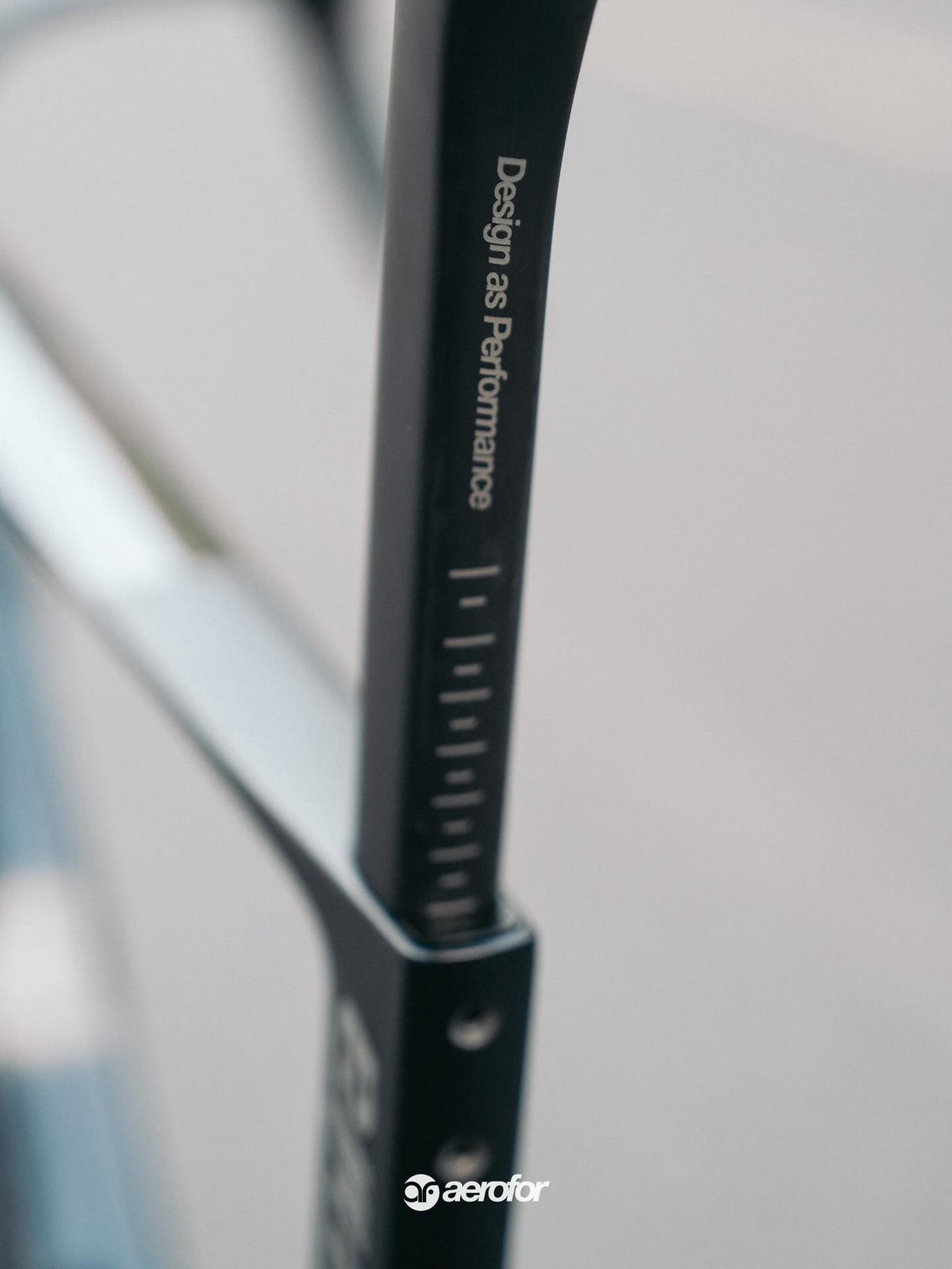

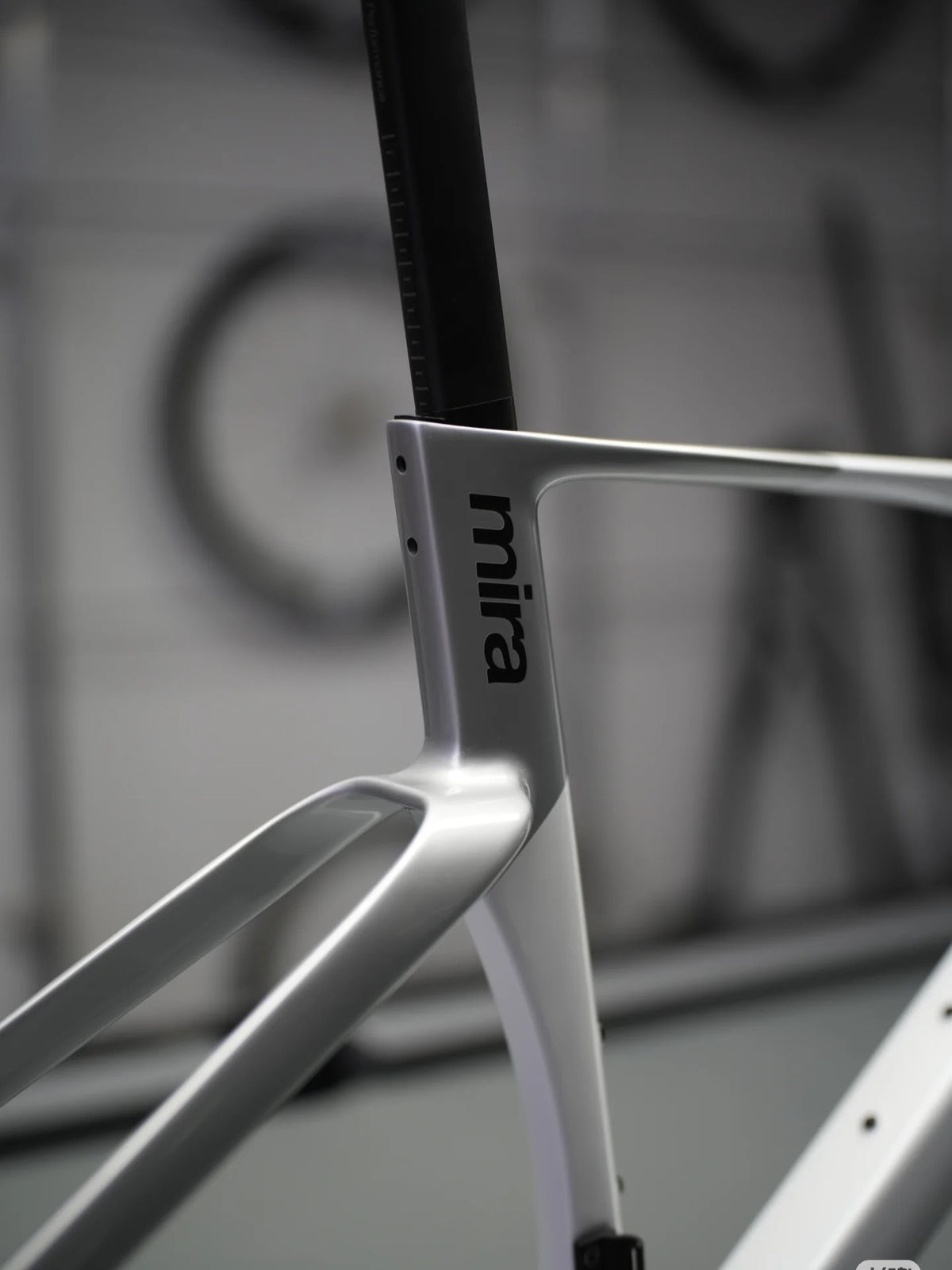

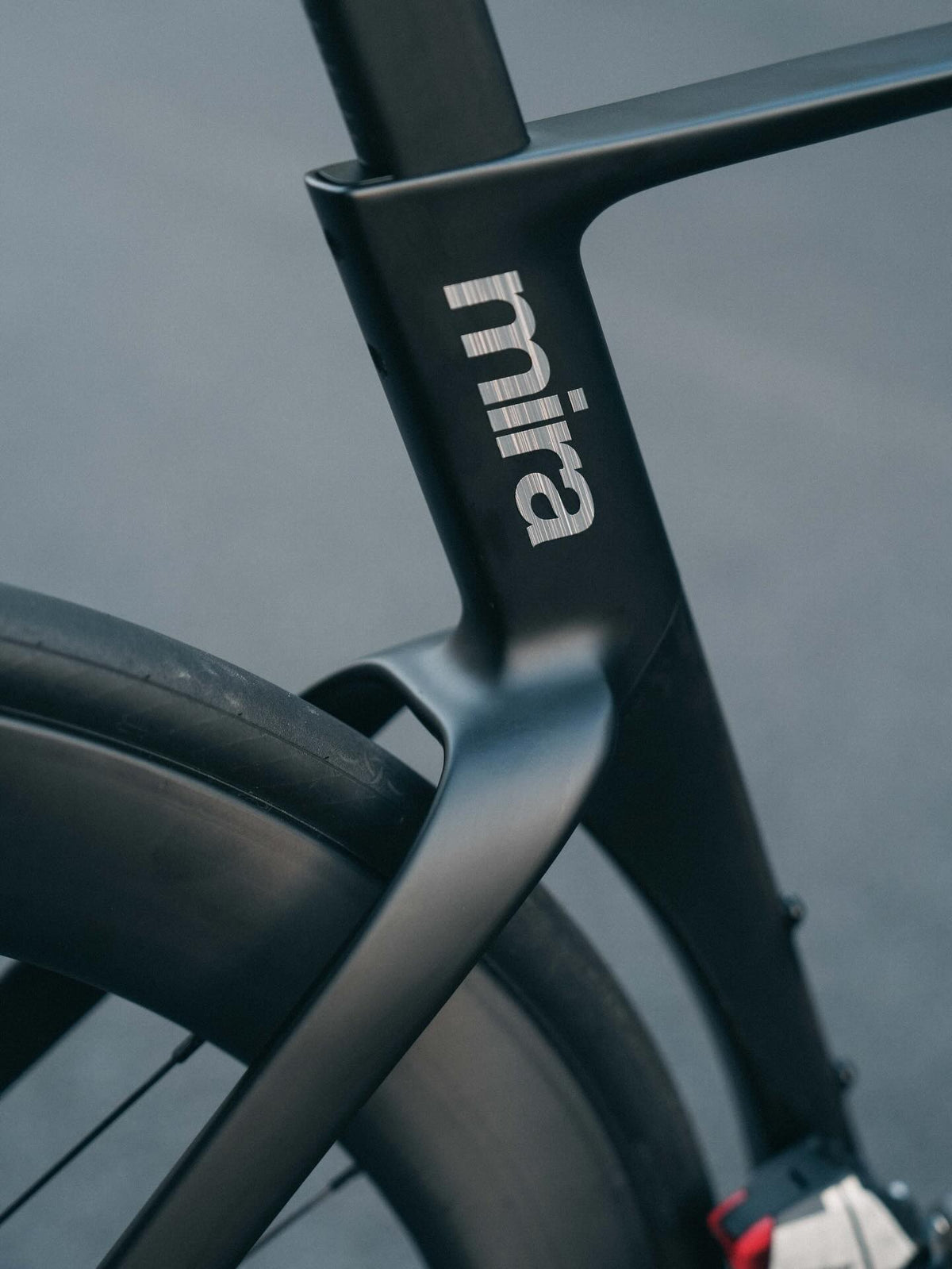

🚲 Aero Seatpost with Hidden Seatpost Clamp
🚲 Tire Clearance: 25–32C
🚲 Electronic Shifting Only (Optimized for 1x, 2x Compatible)
🚲 55mm Rise Aero Integrated Handlebar Included
🚲 Scratch-Resistant UV Coating
More Information
"Mira" comes from the Italian for "look at me", and this frame lives up to the name. With its sharp lines and wind-cheating silhouette, the Mira stands out the moment it rolls into a group ride. But it's not just about looks. The Mira is built to rethink how an aero road bike handles, so it commands attention in every corner, every sprint and every fast mile.
The frame is made from a T1100 and M90 high-modulus carbon blend, combined with a proprietary resin formula that increases strength by 12% over conventional frame materials. The result is a lightweight frame with stiff aero tube profiles, delivering direct power transfer with virtually no flex and holding its aerodynamic efficiency at race speed.
Handling has been carefully tuned. The 405mm chainstay keeps the bike planted and stable at high speed while staying nimble on climbs and quick changes of direction. Up front, the 42mm external head tube keeps the integrated aero profile clean while significantly increasing steering stiffness for sharper, more confident cornering.
Every frameset comes with a matching 55mm rise aero integrated handlebar, so there's nothing extra to source. Designed for an aggressive race position, it gives quicker steering response and more direct power at speed, while lowering your total build cost and complexity.

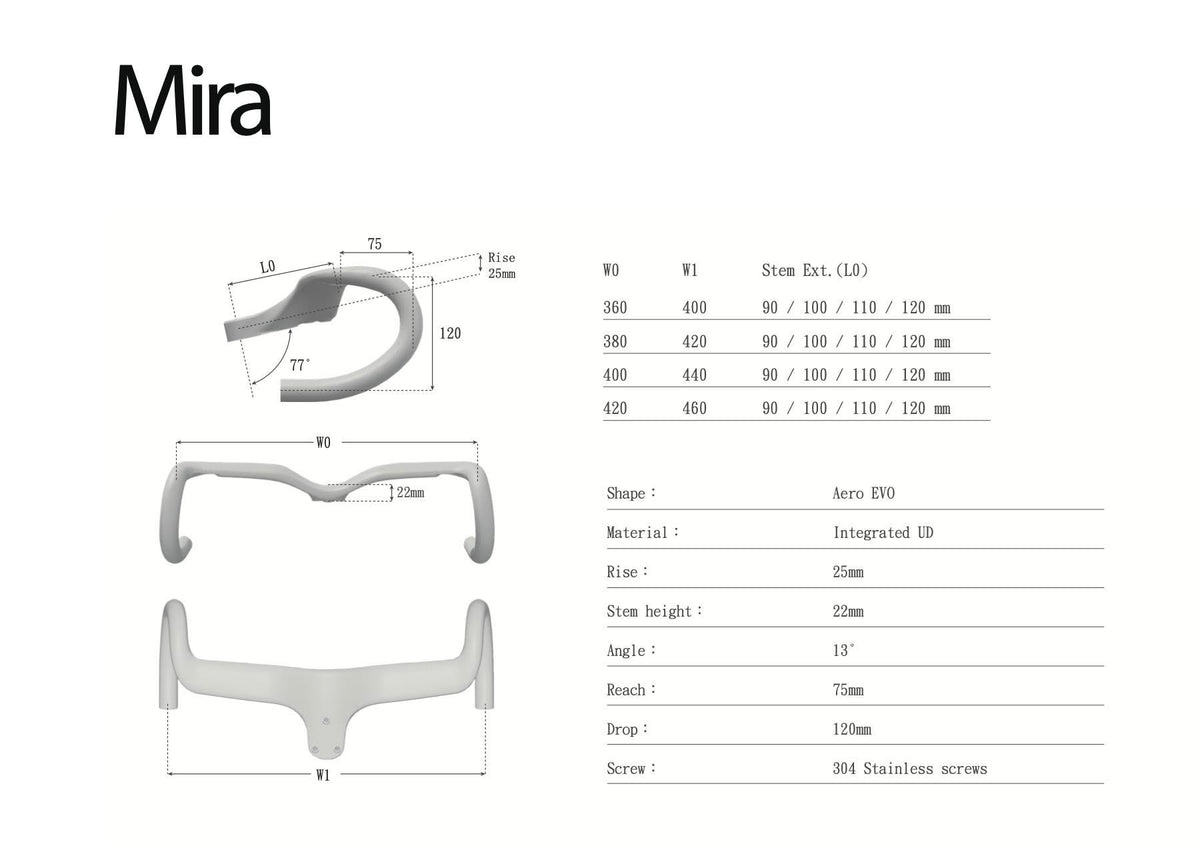

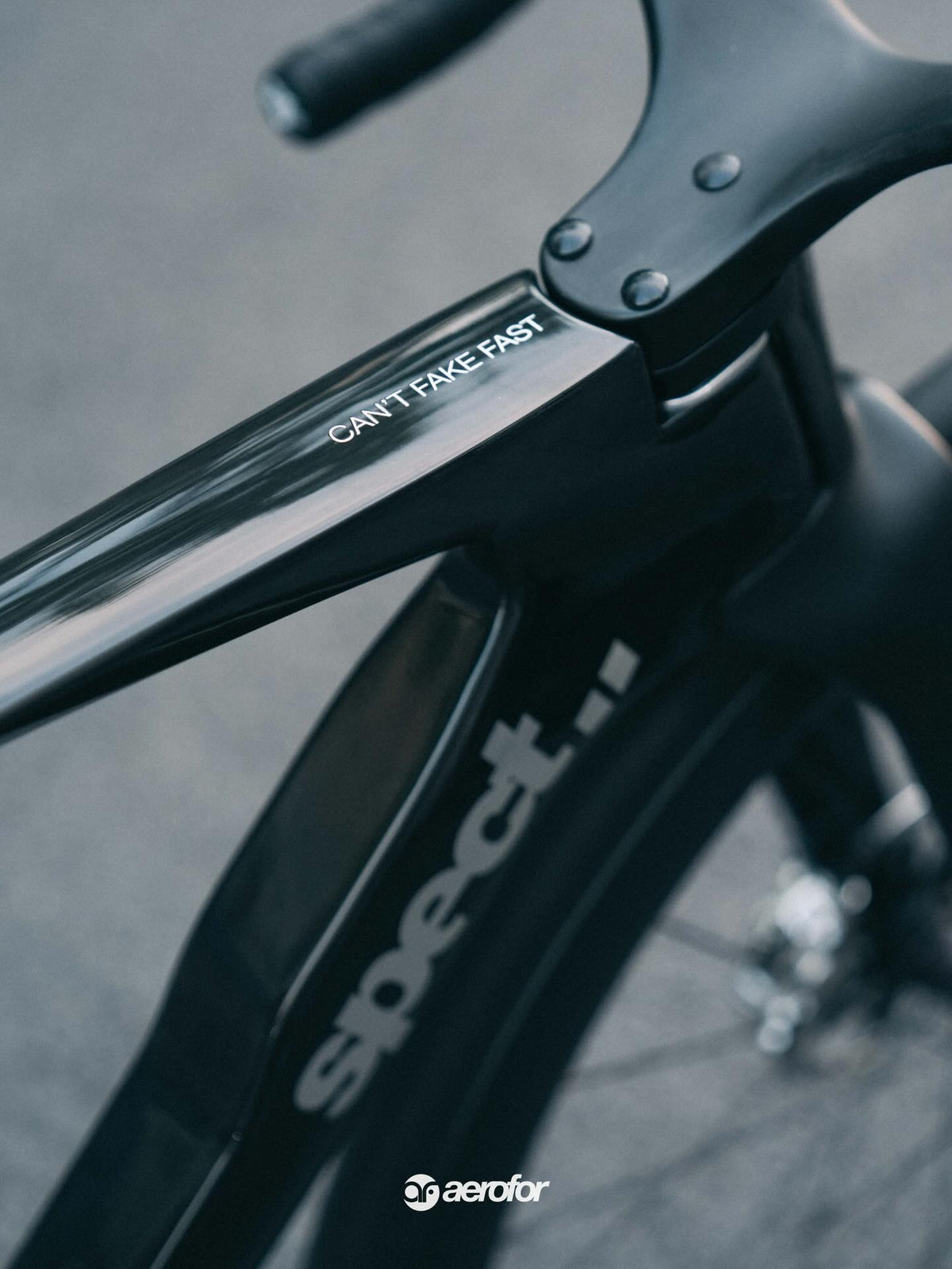

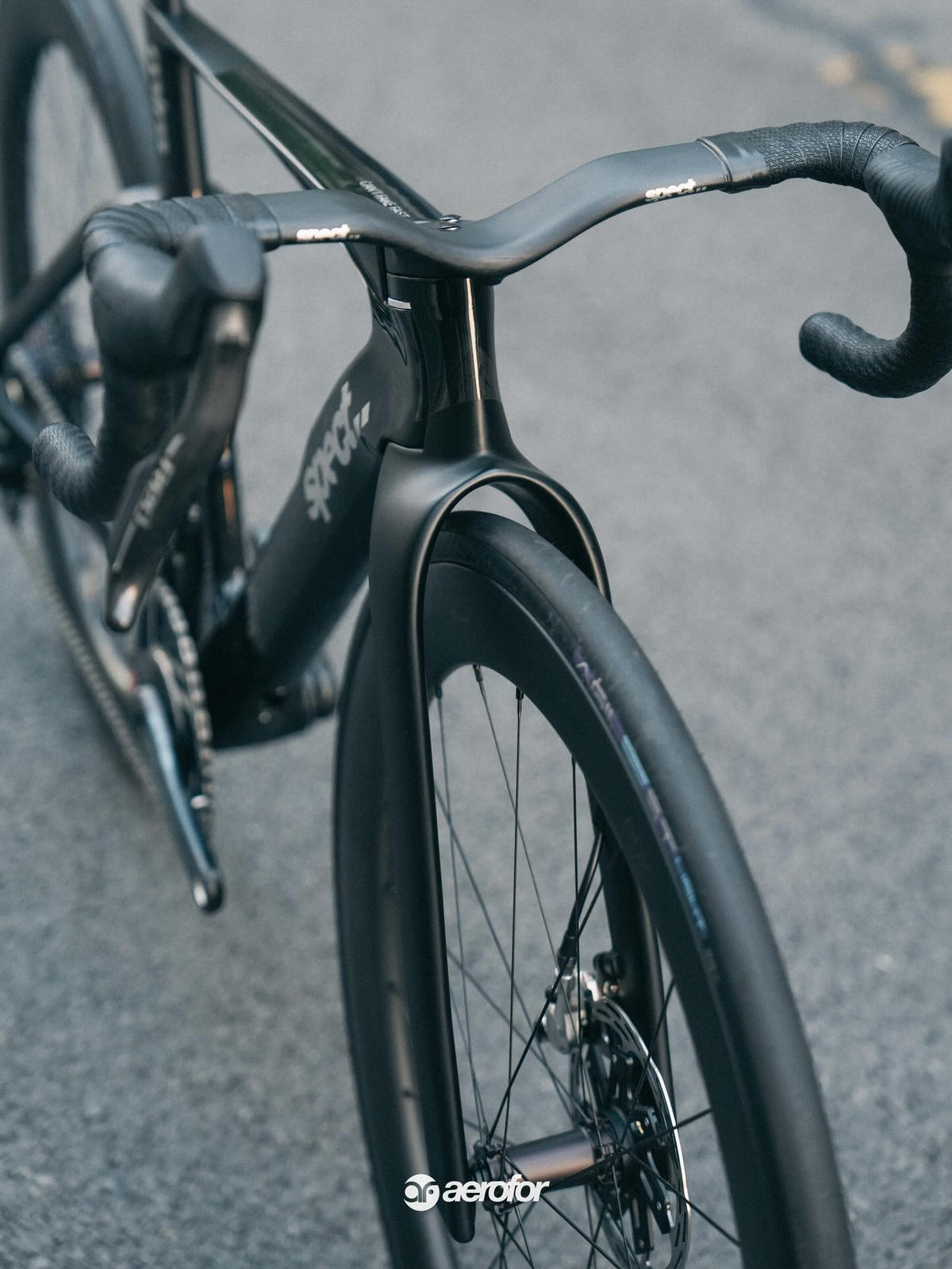

Included Aero Integrated Handlebar
✔ Shape: Aero EVO
✔ Construction: One-Piece Moulded Full UD Carbon
✔ Rise: 25mm
✔ Stem Height: 22mm
✔ Angle: 13°
✔ Reach: 75mm / Drop: 120mm
✔ Bolts: 304 Stainless Steel (Silver)
✔ Up to 80 Size Combinations (5 Frame Sizes x 4 Stem Lengths x 4 Bar Widths)
Available Bar Sizes (Hoods / Drops – Stem Length)
✔ 360mm / 400mm – 90 / 100 / 110 / 120mm
✔ 380mm / 420mm – 90 / 100 / 110 / 120mm
✔ 400mm / 440mm – 90 / 100 / 110 / 120mm
✔ 420mm / 460mm – 90 / 100 / 110 / 120mm

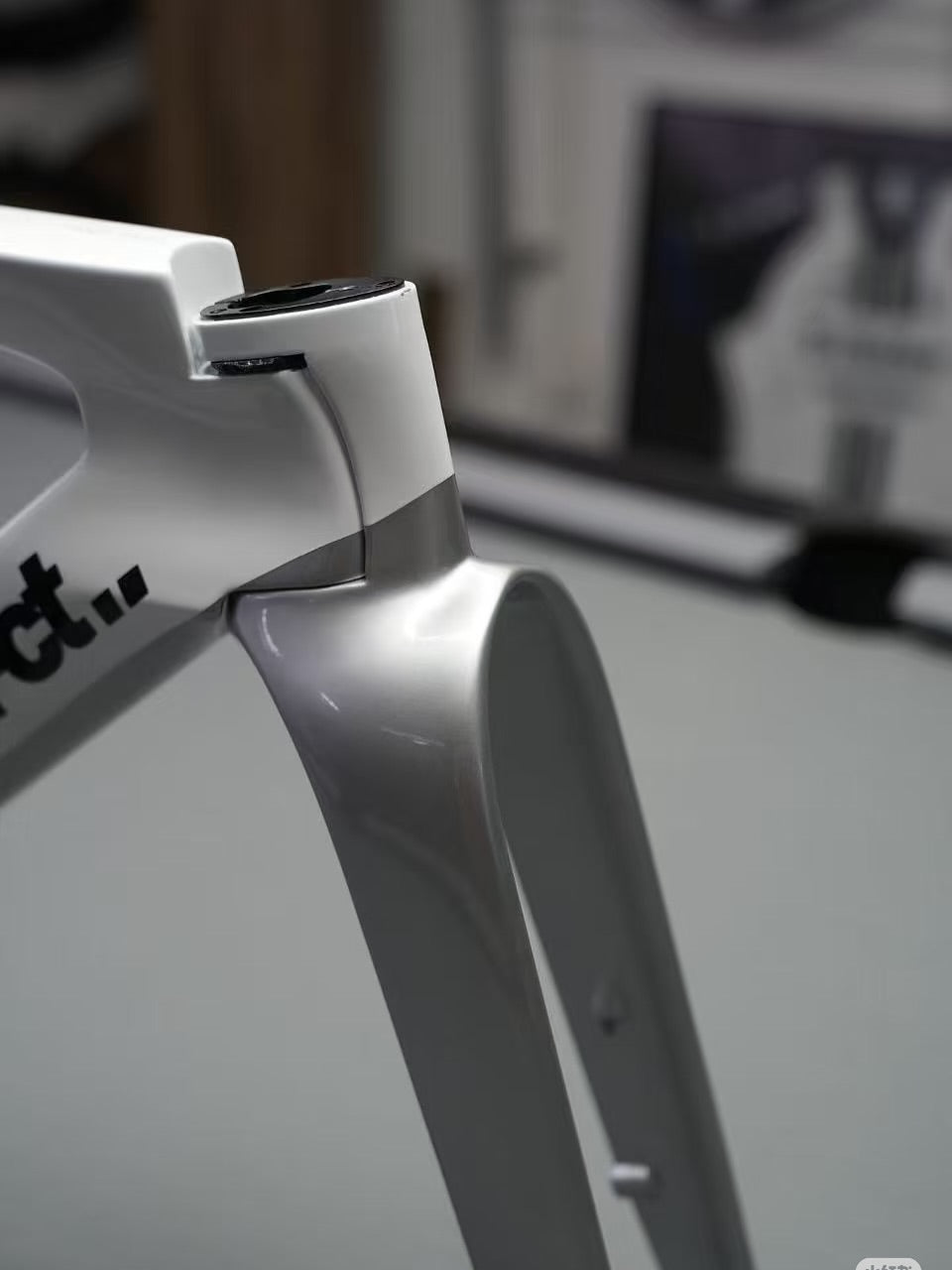

Available Colours
✔ Matte Titanium Silver with Gloss Titanium Silver Accents
✔ Gloss Clear Raw Carbon with Matte Black Accents
Logo Finish: 3K Raw Carbon Weave / Brushed Silver Decal

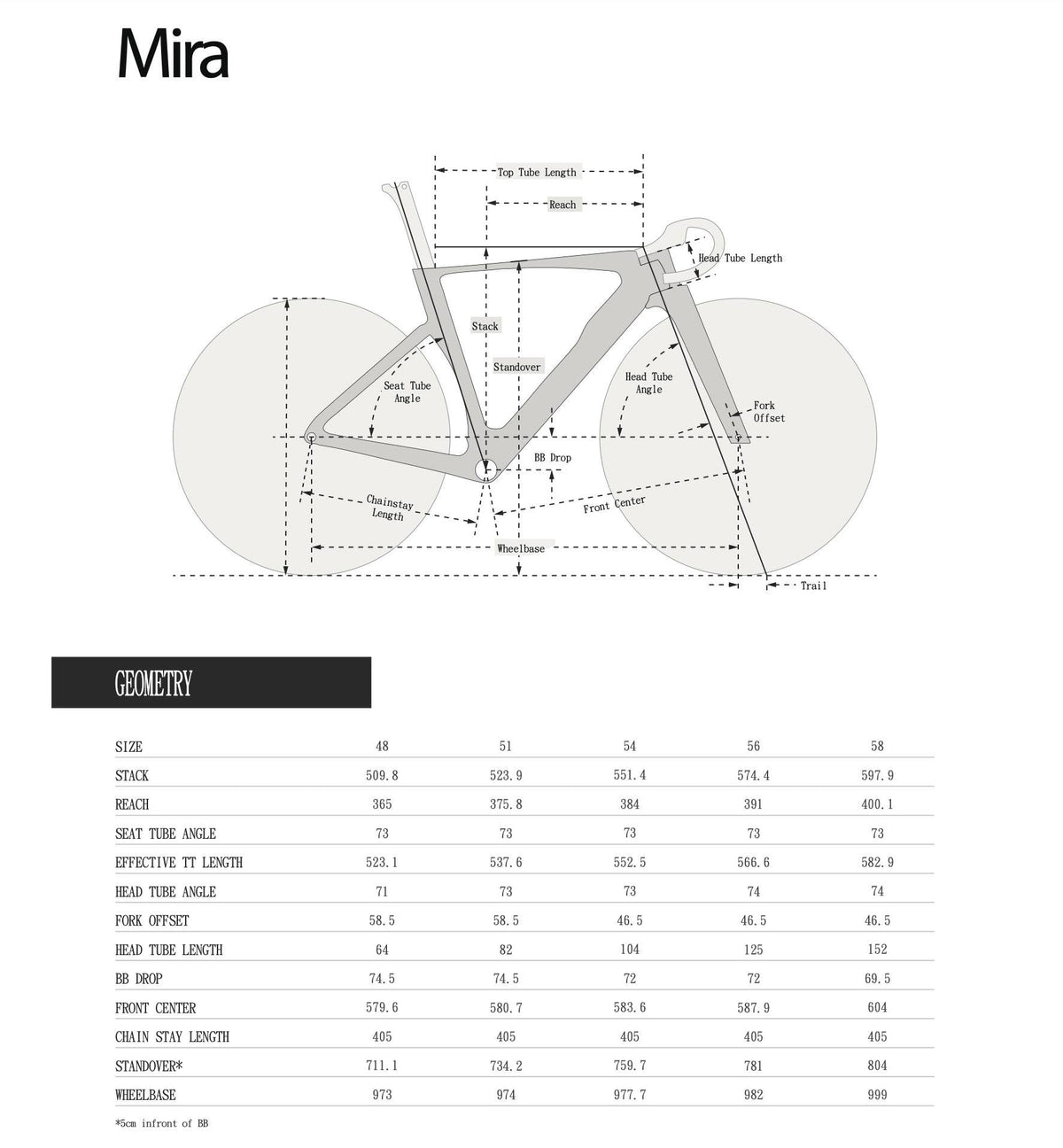

Specifications
Frame Material: T1100 + M90 High-Modulus Carbon
Frame Type: Pure Aero Road
Sizes: 48 / 51 / 54 / 56 / 58
Bottom Bracket: T47 x 86 Threaded
Head Tube / Steerer: 42mm External
Chainstay Length: 405mm
Tire Clearance: 25–32C
Drivetrain: Electronic Shifting Only (1x Optimized / 2x Compatible)
Derailleur Hanger: UDH
Seatpost: Aero Seatpost with Hidden Clamp
Surface Treatment: Scratch-Resistant UV Coating
Included: Frame, Fork, Seatpost, 55mm Rise Aero Integrated Handlebar
