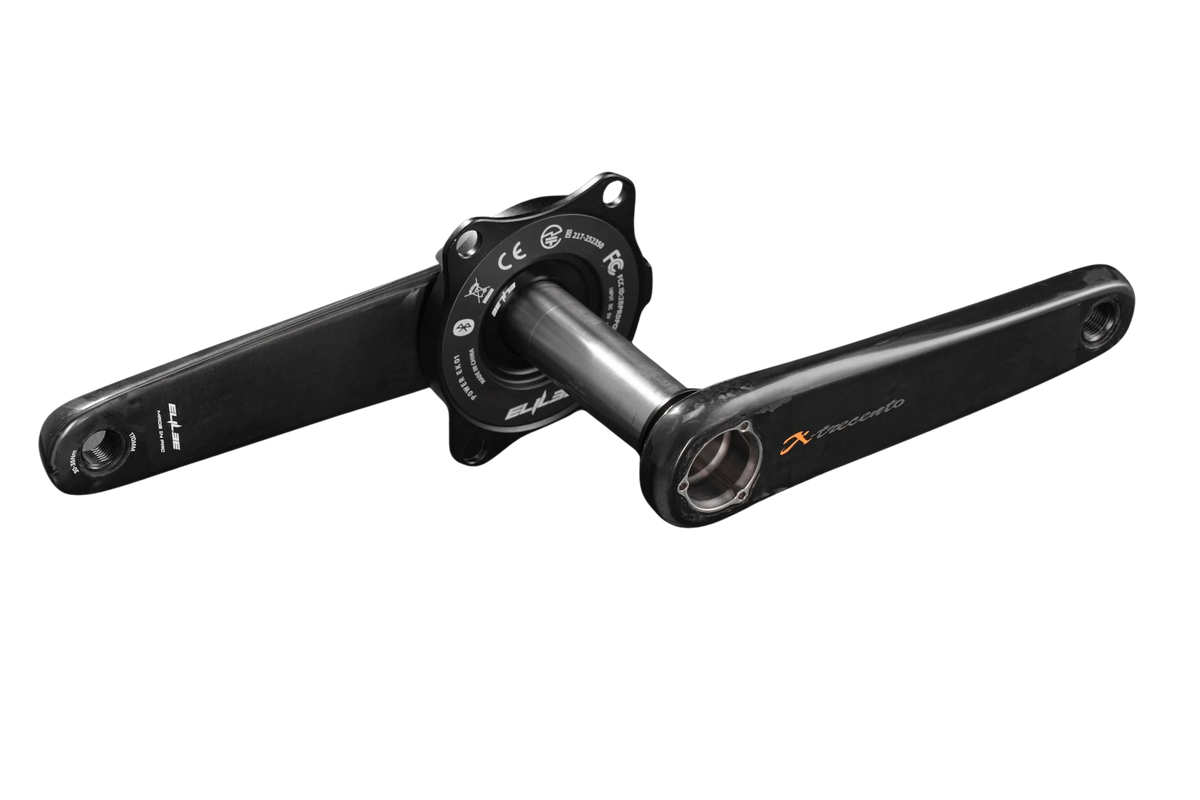

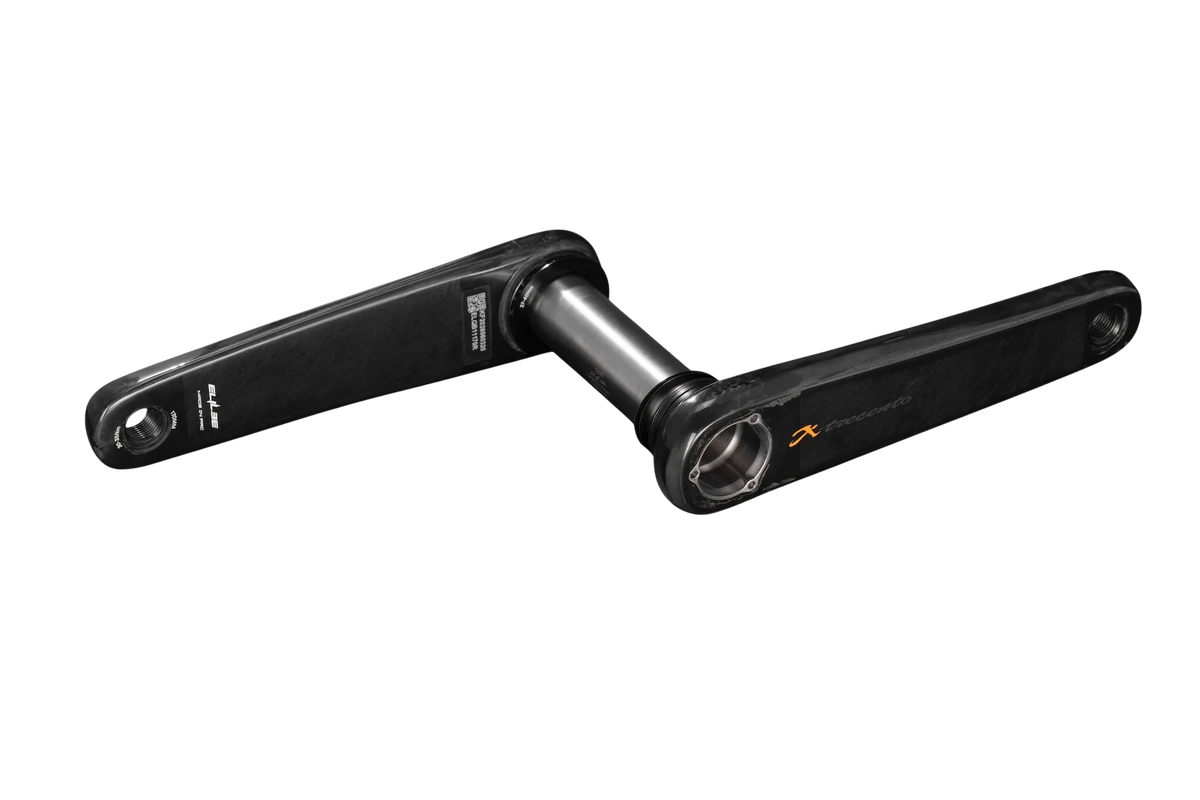

ELILEE X-TRECENTO GEN 2 X270 – Carbon Crankset

NEXT-GENERATION CARBON PERFORMANCE. TITANIUM AT ITS CORE.

Introducing the ELILEE X-TRECENTO Gen 2 X270, the latest evolution of ELILEE's high-performance carbon crankset platform.

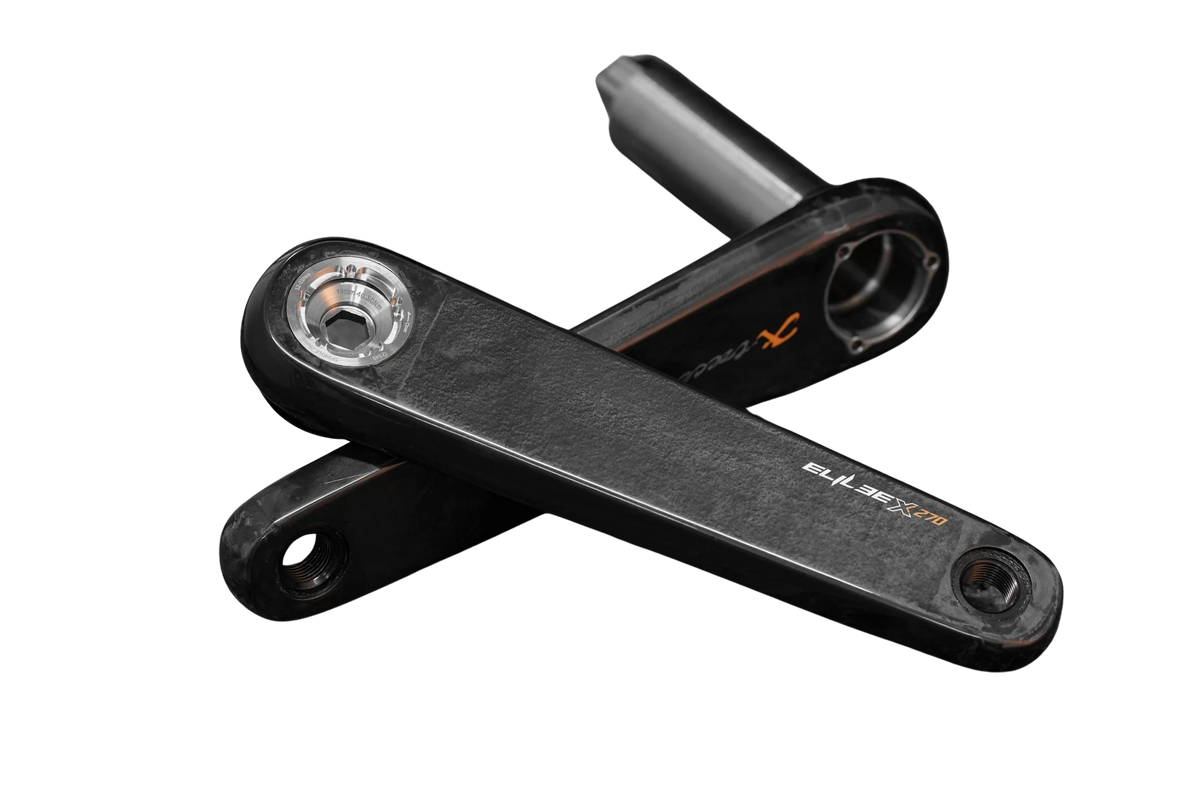

Combining carbon fibre crank arms with a titanium spindle, the X270 has been developed for riders seeking exceptional weight savings, efficient power transfer and uncompromising performance.

With a claimed weight of just 270g, a narrow 149mm Q-factor and ELILEE's 13T direct-mount interface, the X-TRECENTO Gen 2 delivers an impressive combination of lightweight engineering and purposeful design.

Available with either a 24mm or 28.99mm titanium spindle, the X270 offers additional configuration options for performance-focused road bike builds.

Key Features

• 270g claimed weight – exceptionally lightweight carbon crankset construction

• Titanium spindle – available in 24mm and 28.99mm diameters

• Carbon fibre crank arms – lightweight construction engineered for stiffness and performance

• 149mm Q-factor – narrow crank profile

• ELILEE 13T interface – direct-mount EASTON / CINCH chainring and spider connection

• 42mm chainline – designed around road drivetrain configurations

• Six crank lengths – 155mm, 160mm, 165mm, 167.5mm, 170mm and 172.5mm

• Extensive structural testing – including fatigue, static load and impact testing

Carbon Engineering. Refined.

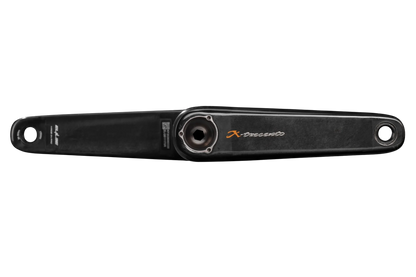

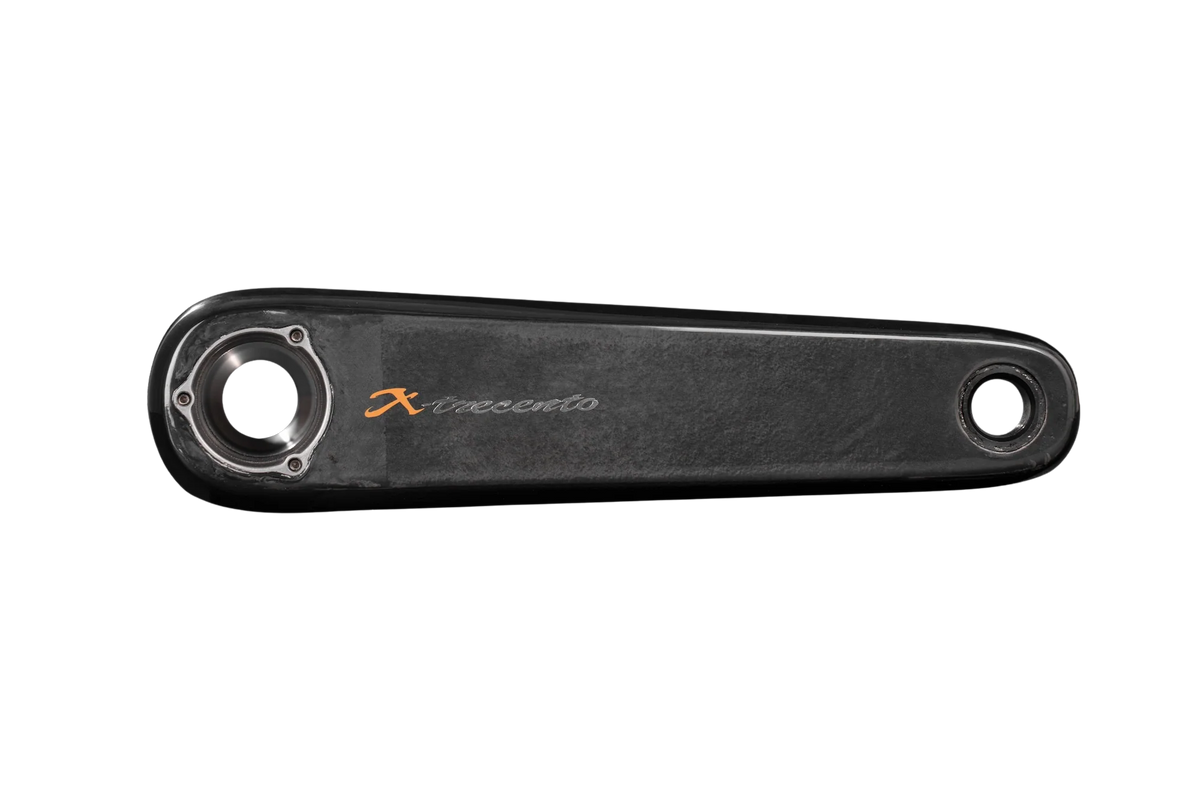

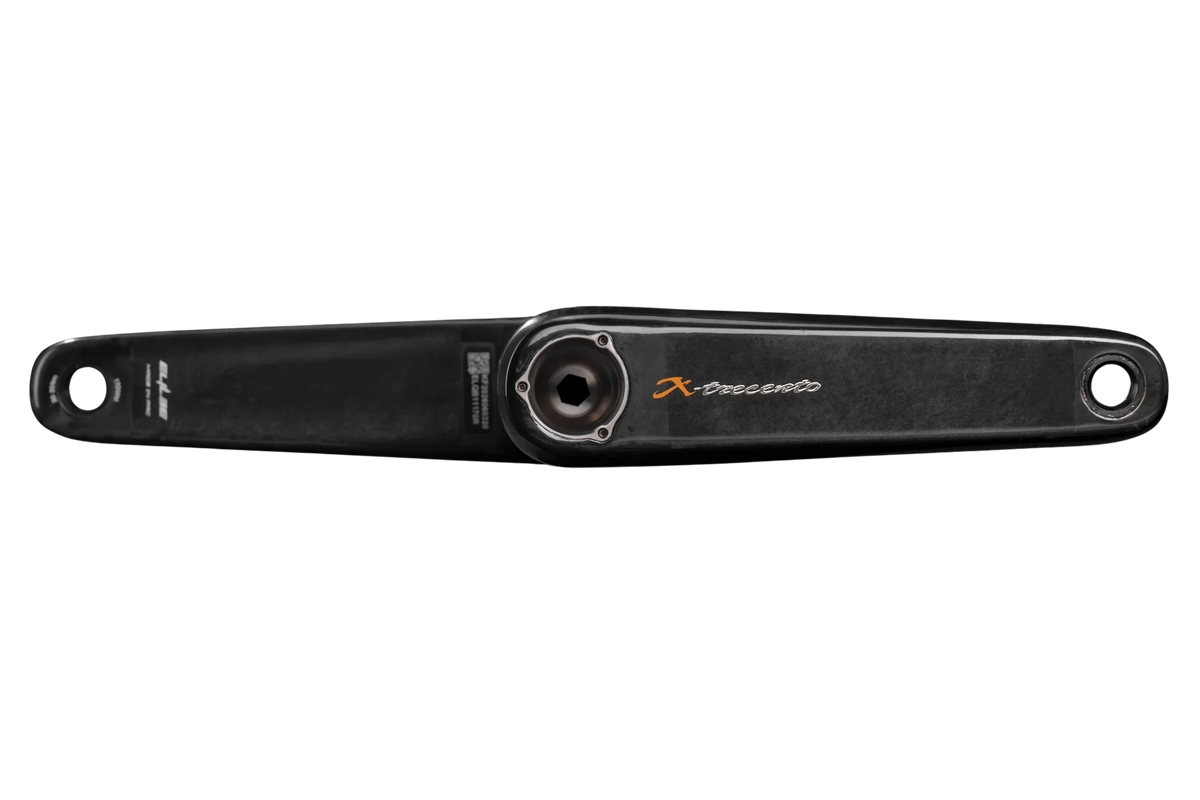

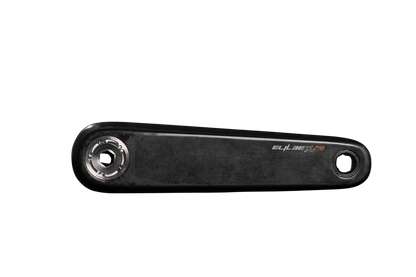

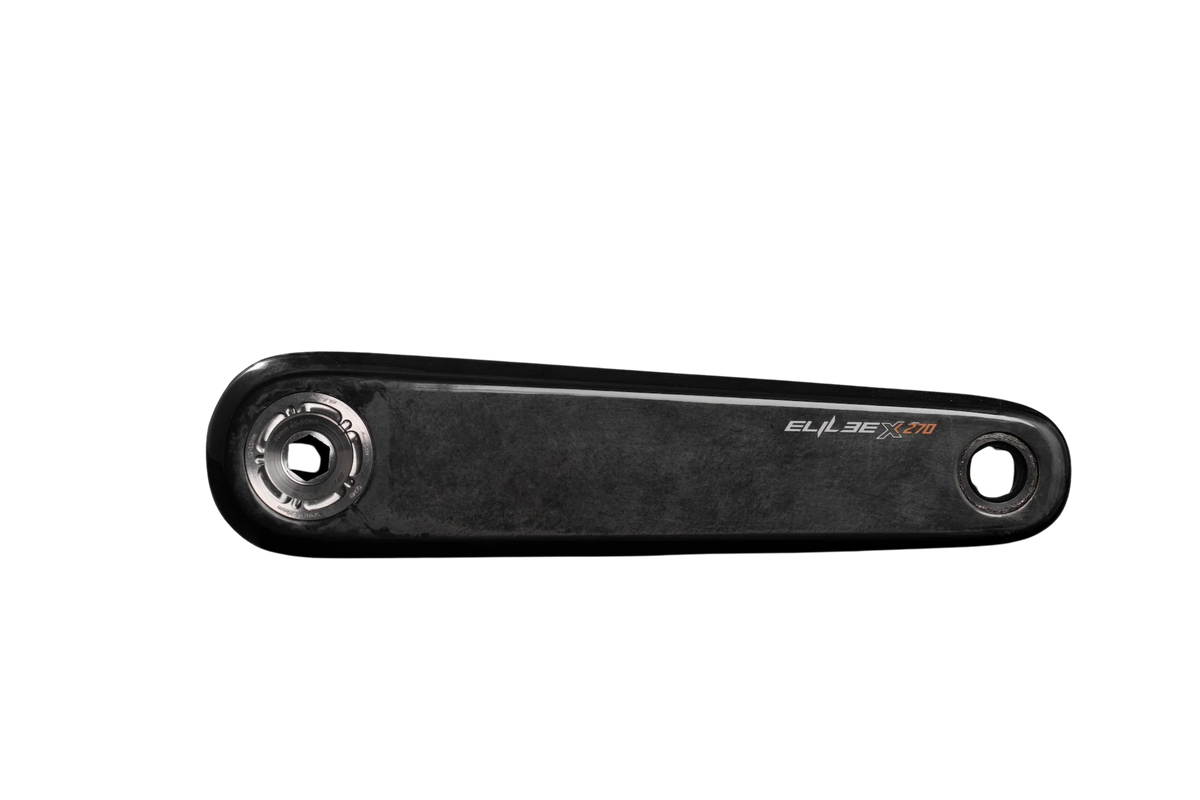

At the heart of the X-TRECENTO Gen 2 is a carbon fibre crank arm construction developed to minimise weight without compromising the structural demands of modern performance cycling.

The distinctive carbon finish reflects ELILEE's commitment to combining precision engineering with understated aesthetics.

Every detail has been considered in pursuit of a lightweight, efficient crankset designed for demanding road cycling applications.

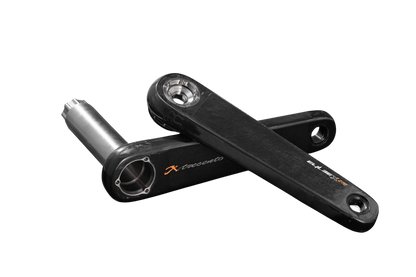

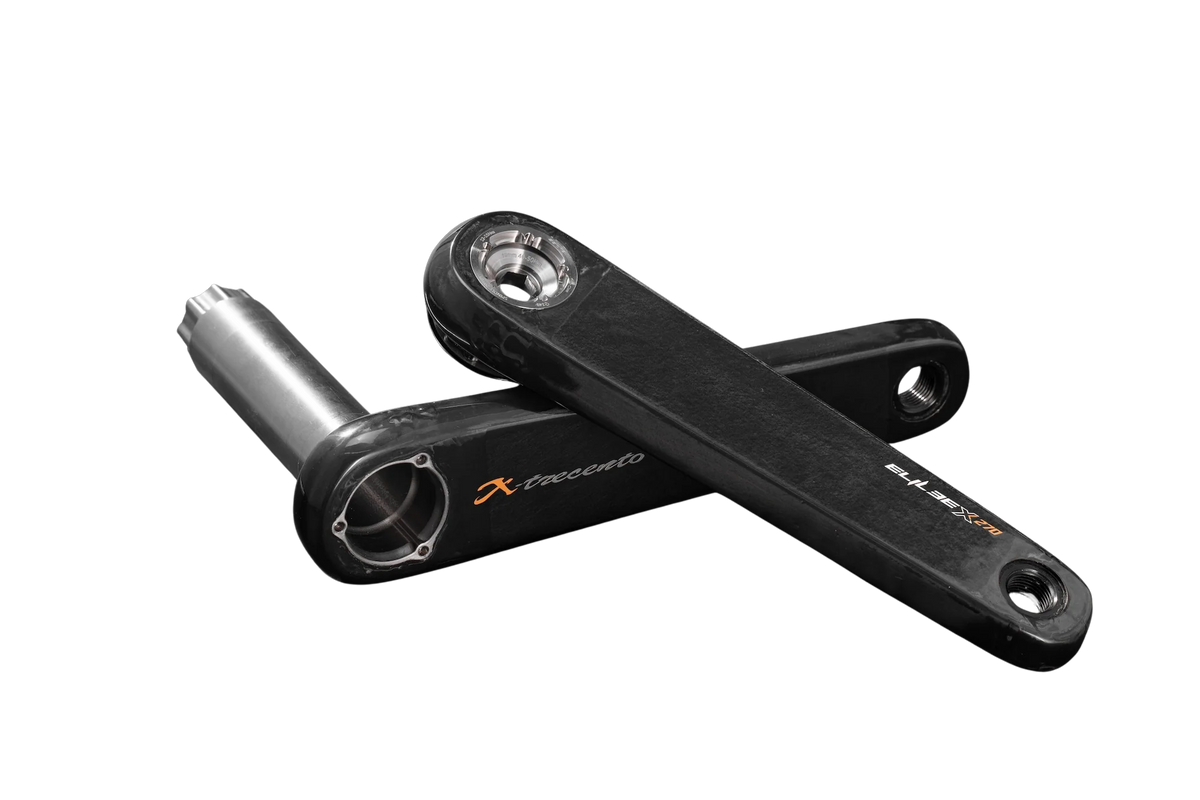

Titanium Spindle Technology

A standout feature of the X270 is its titanium spindle construction.

Available in both 24mm and 28.99mm diameters, the titanium spindle contributes to the crankset's remarkably low overall weight while providing the structural strength required for effective power transfer.

With a specified spindle length of 93mm and a Q-factor of 149mm, the X270 combines low weight with compact crankset geometry.

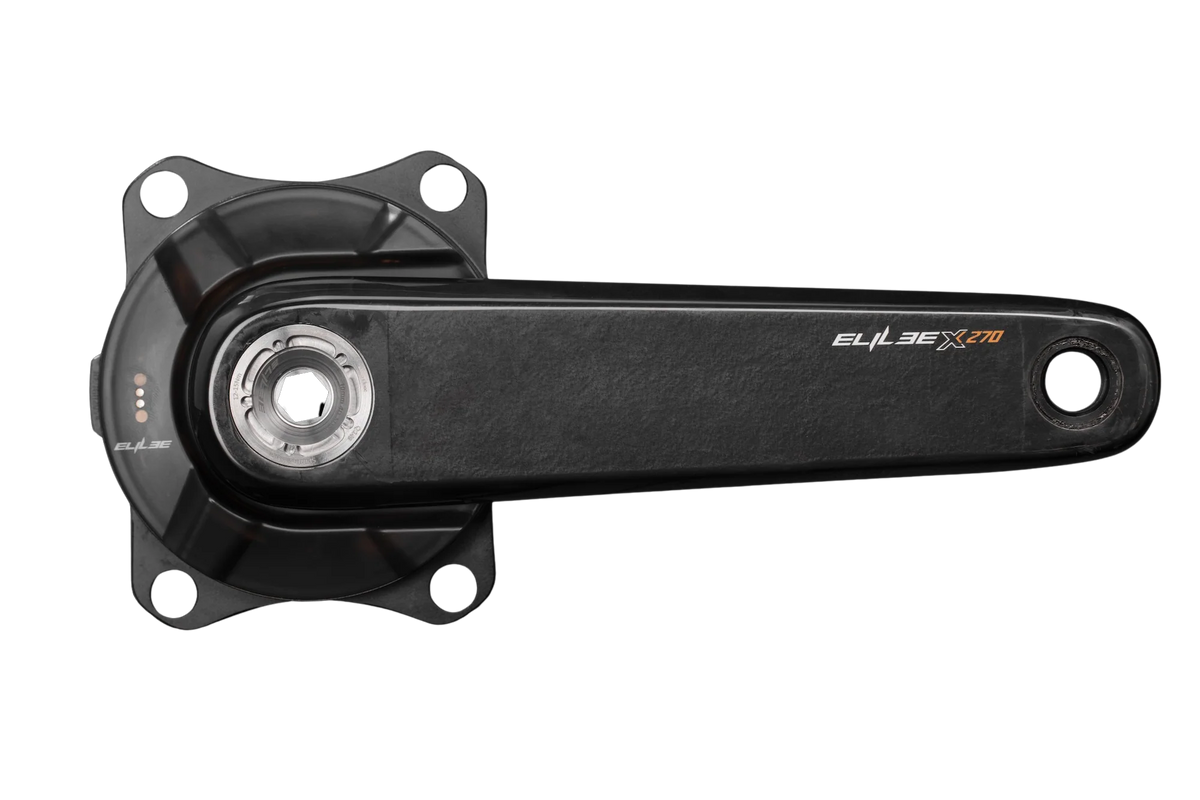

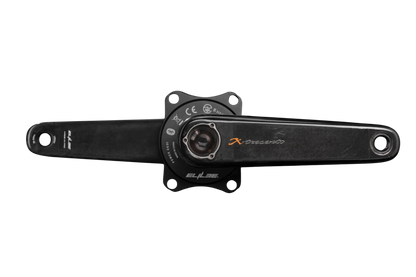

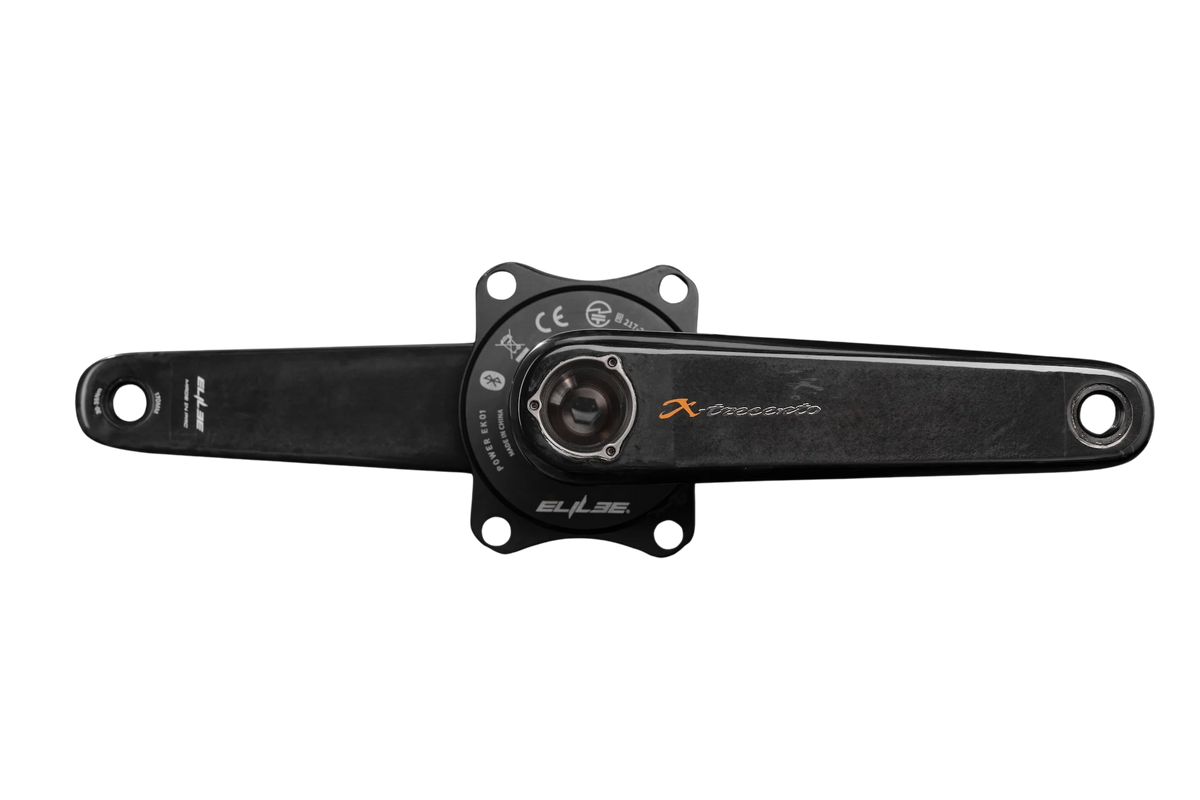

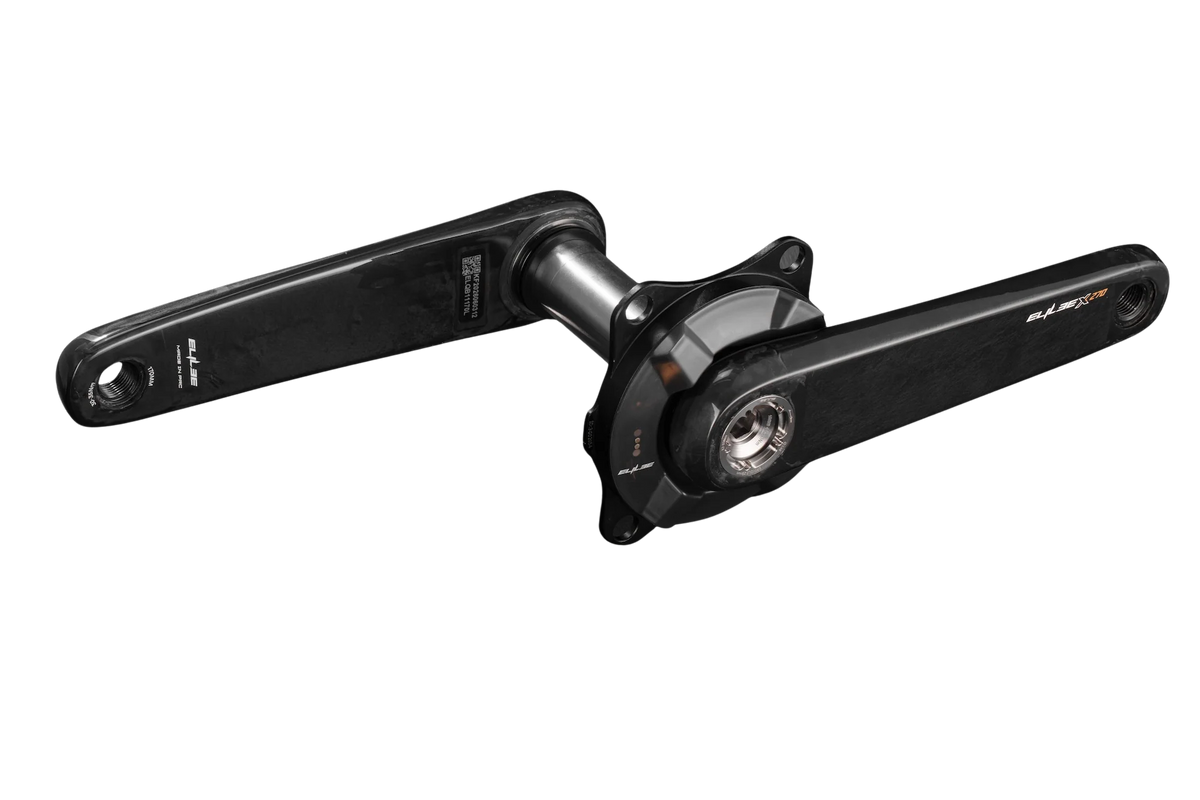

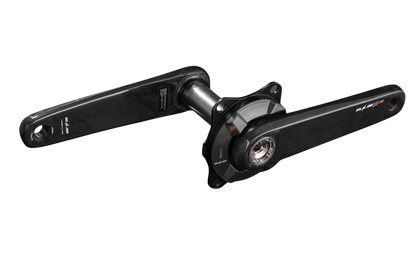

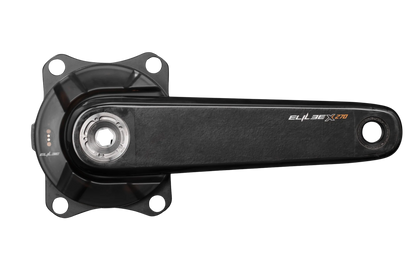

ELILEE 13T Direct-Mount Interface

The X-TRECENTO Gen 2 incorporates ELILEE's 13T interface for connecting compatible CINCH / EASTON STANDARD direct-mount spiders and chainrings.

This design provides a dedicated connection between the crank arms and drivetrain components, supporting a streamlined, lightweight crankset assembly.

Chainring and spider compatibility should be confirmed before installation.

Tested for Performance

Lightweight construction is only part of the equation.

ELILEE has subjected the X-TRECENTO Gen 2 to a programme of structural testing, including static loading, repeated fatigue cycles and impact verification.

Manufacturer-supplied testing results include:

• Stiffness: 75.87 N/mm

• Stiffness-to-weight ratio: 27.84 N/mm/g

• Maximum displacement: 26.36mm under 200kgf

• Static failure load: 407.6kgf

• Fatigue testing: 100,000 cycles per side at 180kgf

• Impact testing: Passed multi-stage impact verification up to 130J

These results demonstrate ELILEE's emphasis on structural validation alongside its commitment to reducing component weight.

Technical Specifications

Specifications and weight figures are supplied by ELILEE. Actual weights may vary depending on configuration.
