Light as the wind: a 650g aero road frame, validated in the Silverstone wind tunnel.

🔥 Light as the wind, defining imagination 🔥

🚲 650g frame (size M, unpainted), 355g fork (unpainted)

🚲 Toray T1100, T800 & M40 carbon, with a special resin that increases rigidity by 12% over traditional resin

🚲 Wind-tunnel tested at the Silverstone Sports Engineering Hub

🚲 Six sizes for riders from 146cm to 202cm, two fork offsets and three BB drops

🚲 Tyre clearance 24C to 32C

🚲 CeramicSpeed SLT headset bearings, BSA threaded BB, SRAM UDH

🚲 Internal routing for electronic shifting (Shimano, SRAM, Campagnolo WRL)

🚲 Supplied with the evolve® seatpost and a KREUZA Apex one-piece carbon handlebar

🚲 UCI approved, CE certified, limited lifetime warranty

More Information

The CIMA is evolve's aero road frame, built around an ultra-light weight target and strict testing. evolve holds frame and fork to 21 in-house testing items for reliability and riding safety, and validated the aerodynamics in the Silverstone Sports Engineering Hub wind tunnel. evolve's own press material claims a saving of 4.74W at 45km/h versus an unnamed international brand.

The frame uses Toray T1100, T800 and M40 carbon fabric with a special resin formula that increases rigidity by 12% compared with traditional resins. The six sizes cover riders from 146cm to 202cm with matched STR values (1.36 / 1.40 / 1.42 / 1.44 / 1.46 / 1.50 from XS to XL), two different fork offsets and three different bottom bracket drops, so handling stays consistent across the size range.

Premium components are part of the package: CeramicSpeed SLT headset bearings, a BSA threaded bottom bracket for easy servicing, and a SRAM UDH derailleur hanger. Routing is fully internal and the frame is designed for electronic shifting only.

What's Included

✔ Frame and fork

✔ evolve® seatpost (140g with parts)

✔ Seatpost length 310mm or 380mm, with -5mm, 10mm or 25mm offset

✔ KREUZA Apex one-piece carbon handlebar (choose your width and stem length)

Groupset Compatibility

All Shimano electronic shifting systems, all SRAM electronic shifting systems and Campagnolo WRL systems. Note: EPS systems are not compatible, as the battery diameter is too large to fit inside the frame.

Geometry & Sizes

Six sizes: XS / S / M / ML / L / XL. Fork offset is 44.0mm on XS, S and M, and 40.2mm on ML, L and XL. The geometry chart is shown below.

Watch: evolve CIMA Complete Bike Build

Available Options

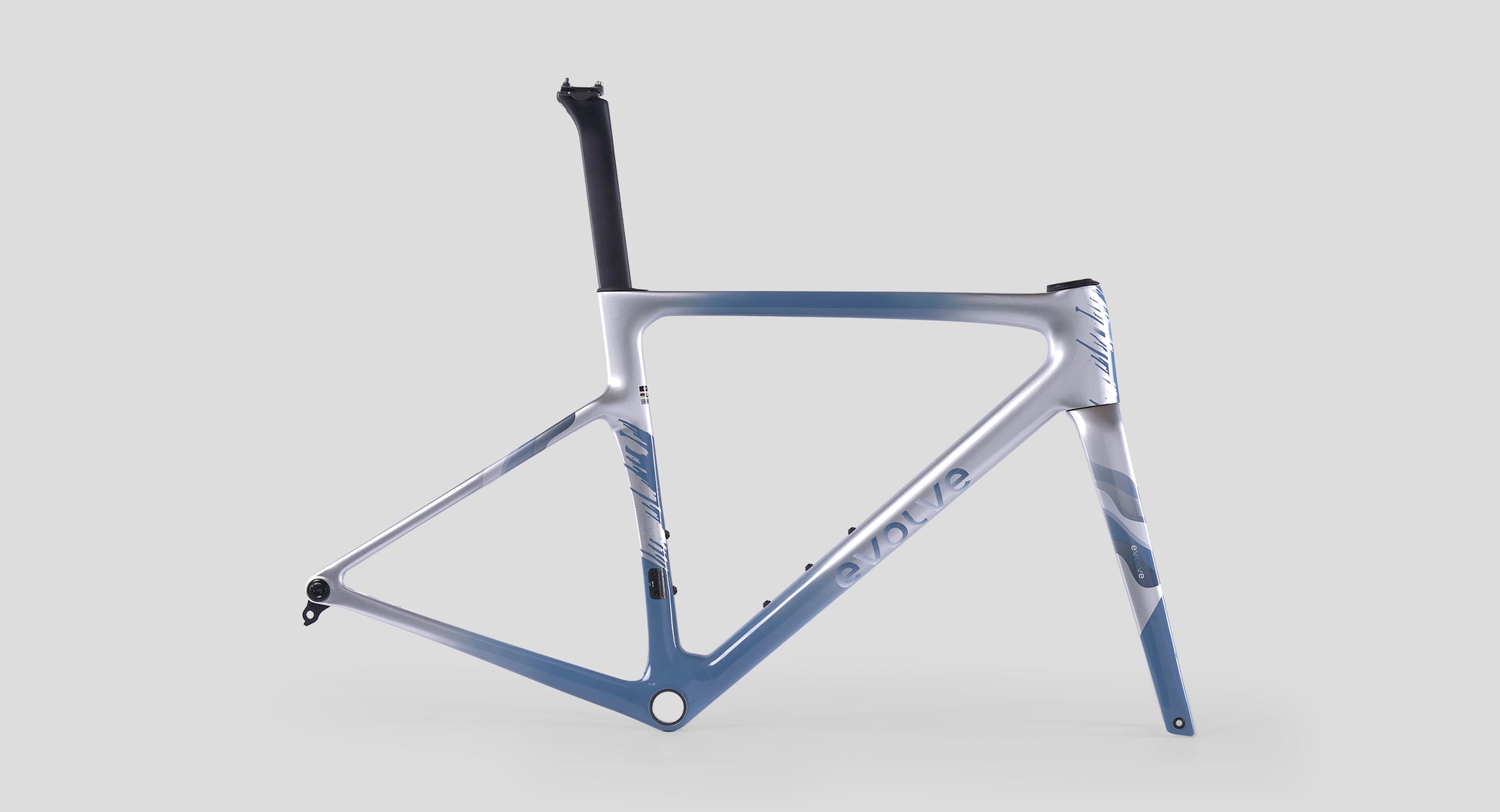

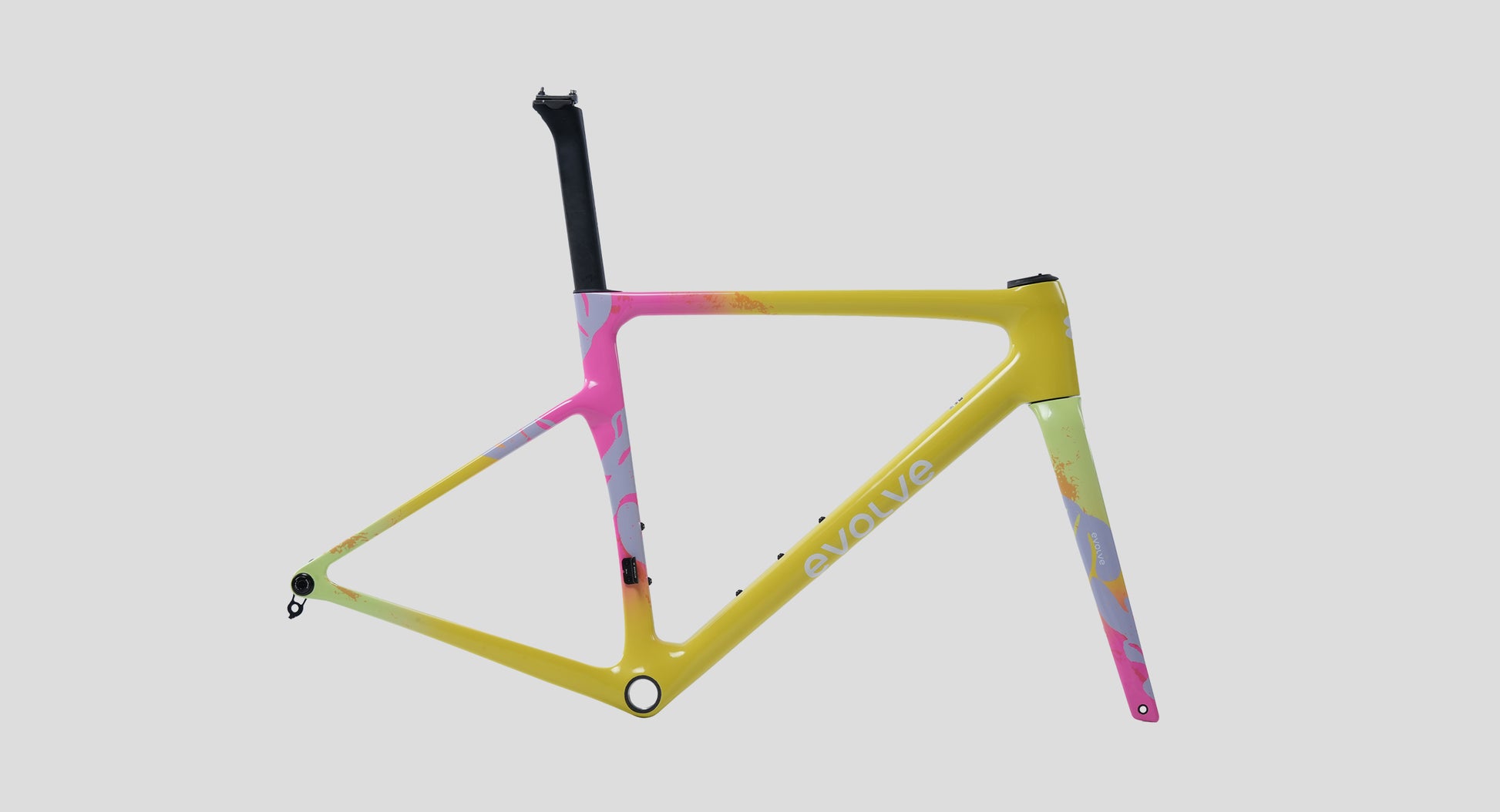

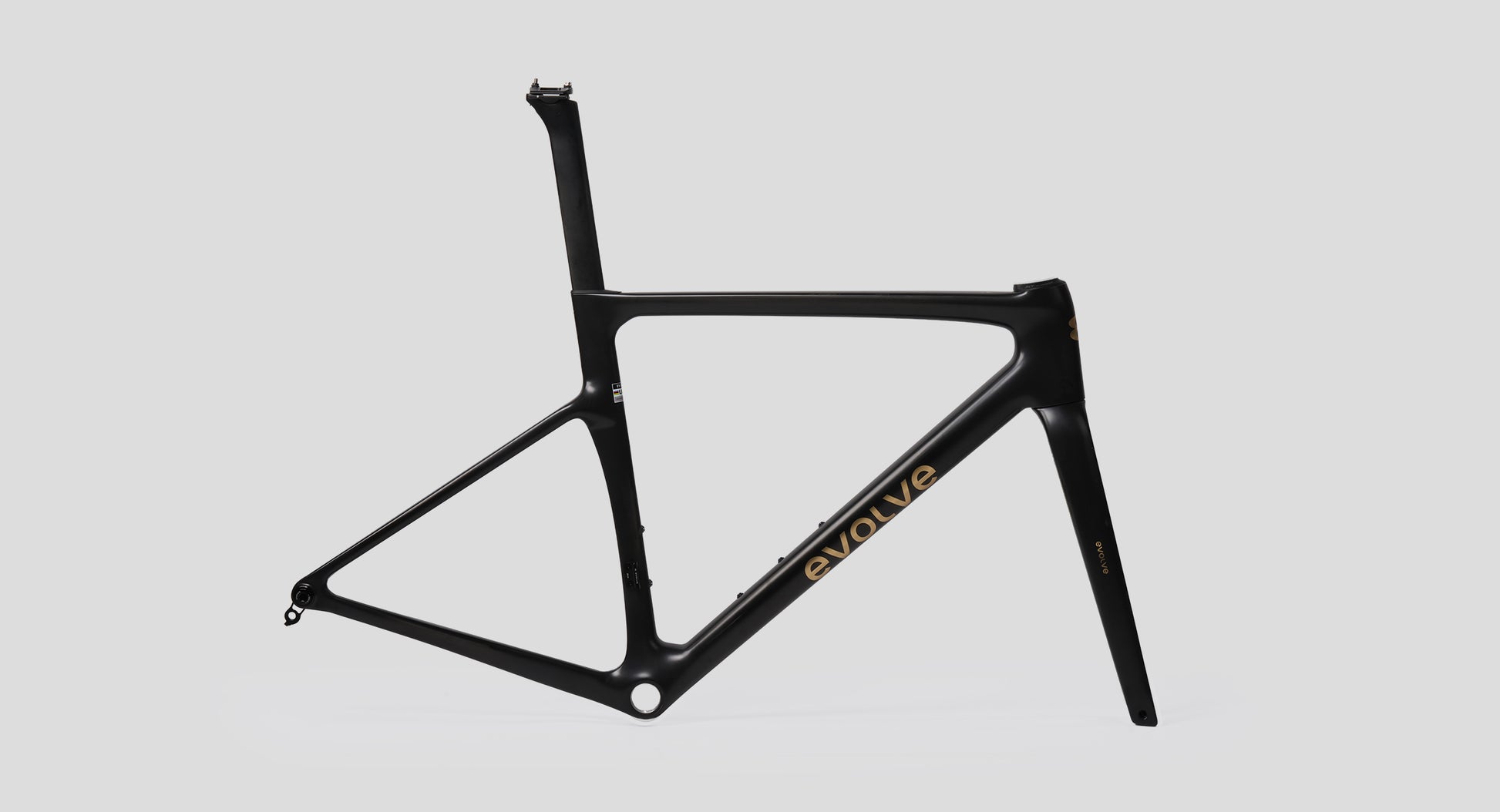

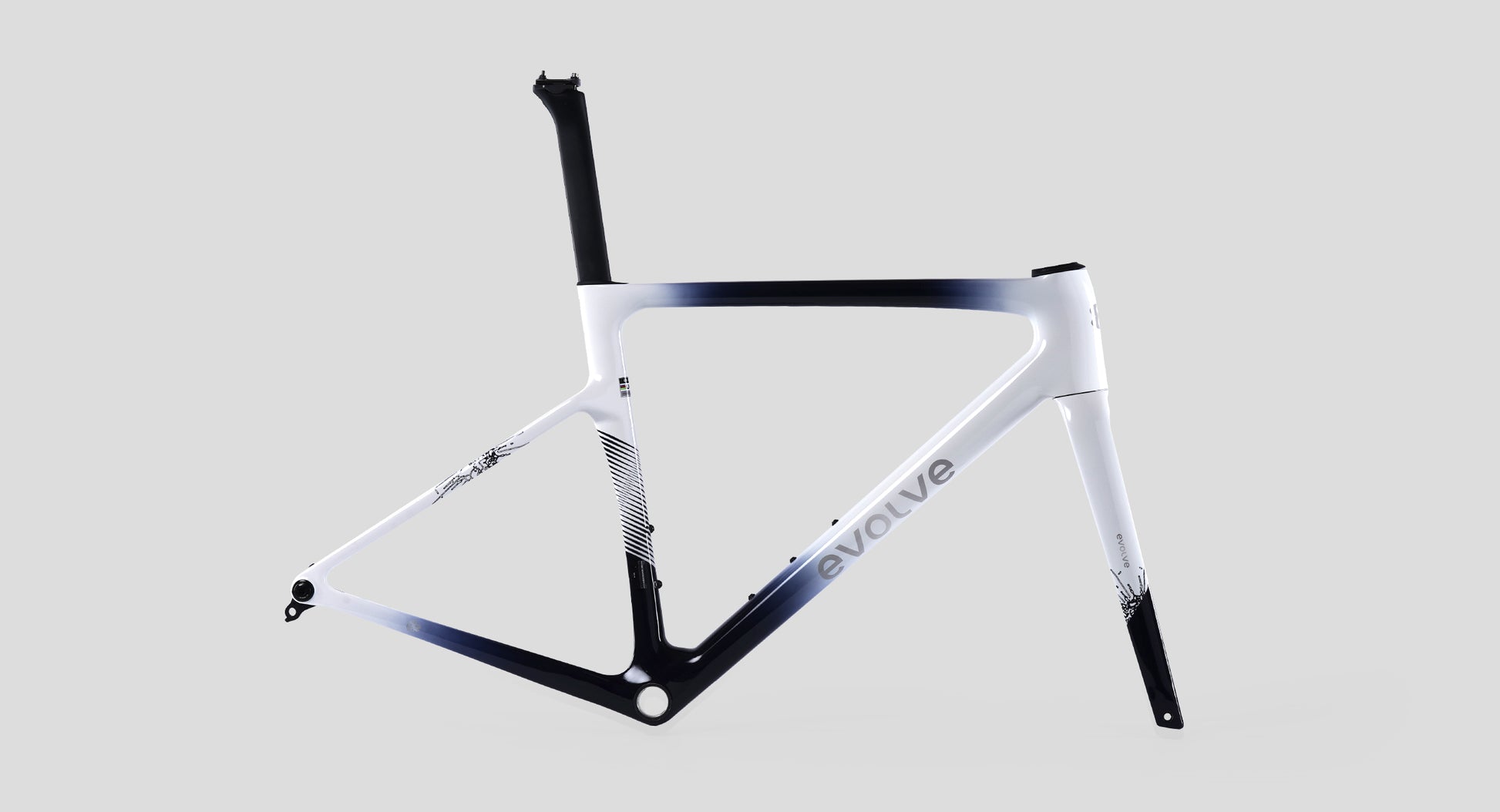

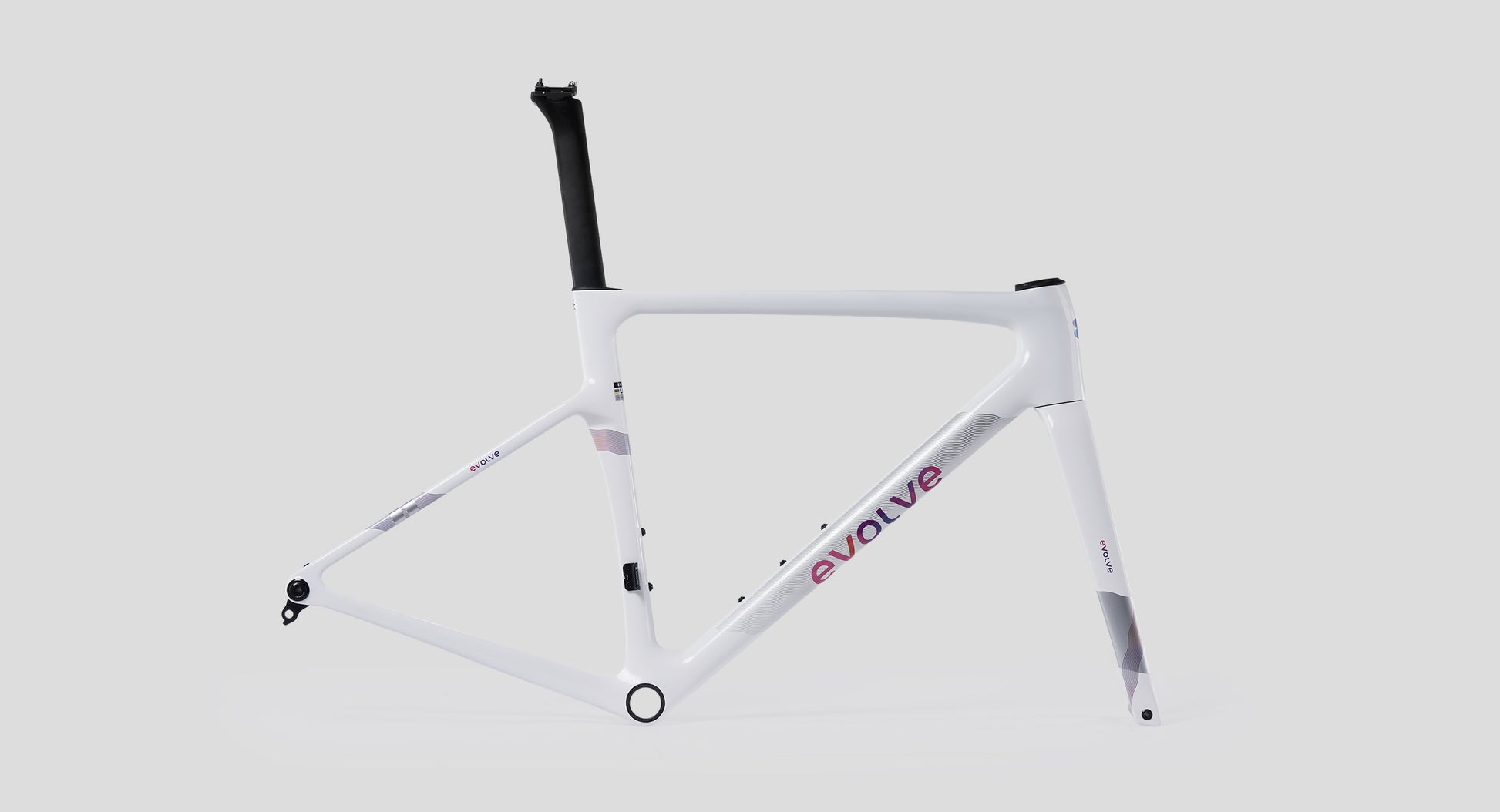

✔ Colour – Mist, Streams, Nirvana, Emerge, Billow, Wilderness, Adrift, Rewind, Special Edition-Taiwan China, MGK Team Edition, Navy White, Matte Carbon Gold, Tropical Yellow

✔ Size – XS / S / M / ML / L / XL

✔ Seatpost – 310mm or 380mm length, -5 / 10 / 25mm offset

✔ Handlebar – KREUZA Apex included: width 360 / 380 / 400mm, stem 80 to 140mm

Specifications

✔ Frame Weight: 650g (size M, unpainted)

✔ Fork: 355g (unpainted); offset 44.0mm (XS / S / M), 40.2mm (ML / L / XL)

✔ Material: Toray T1100, T800 & M40 carbon fibre

✔ Headset: CeramicSpeed SLT bearings, 40.5 × 49.5 × 6.5mm (head tube diameter 49.5mm)

✔ Seatpost: evolve® seatpost, 140g with parts; saddle rails 7×7, 7×9, 7×10mm

✔ Bottom Bracket: BSA threaded, 68mm width

✔ Tyre Clearance: 24C to 32C

✔ Brake: Flat mount disc only (max rotor 160mm front and rear)

✔ Axles: 12×100mm front / 12×142mm rear thru-axles

✔ Derailleur Hanger: SRAM UDH (M12×1mm)

✔ Routing: Internal

✔ Max Chainring: 58T

✔ Wheel Size: 700C

✔ Compatible Groupsets: Shimano, SRAM and Campagnolo WRL electronic only

✔ Rider Weight Limit: 109kg

✔ Certification: UCI approved, CE certified

✔ Warranty: Limited lifetime warranty
