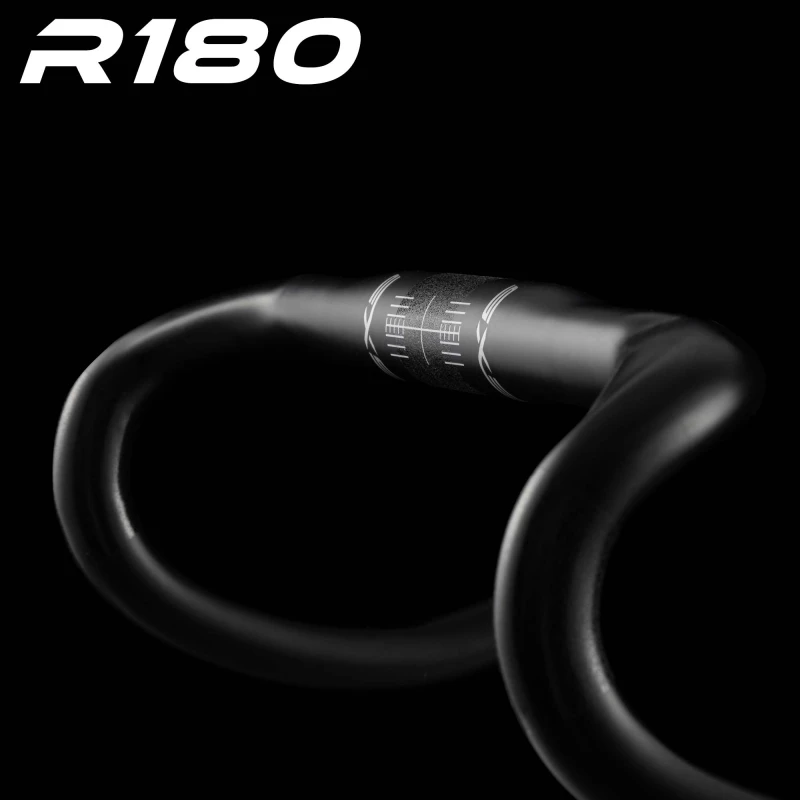

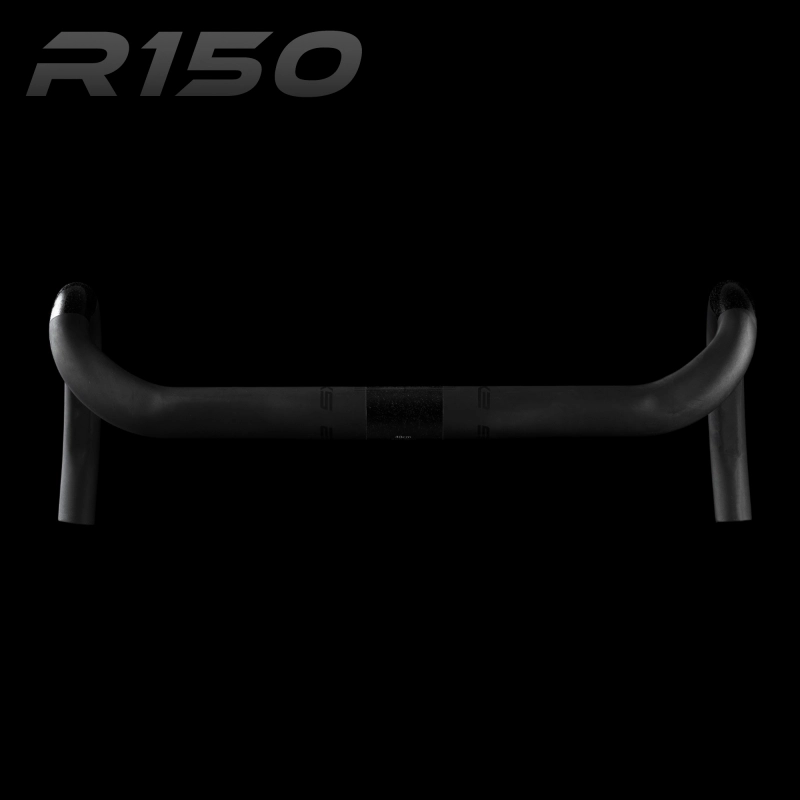

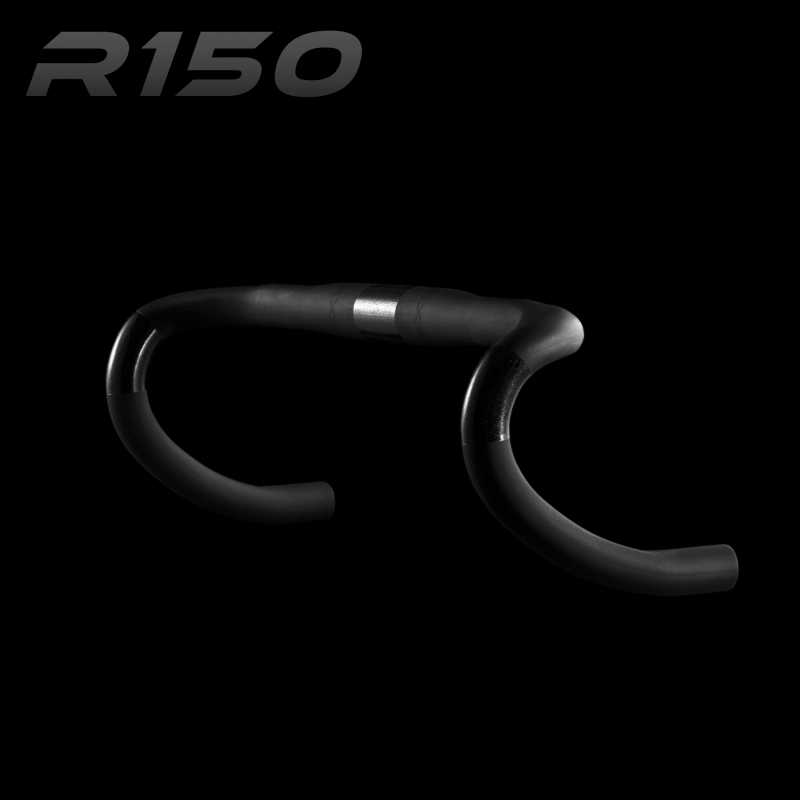

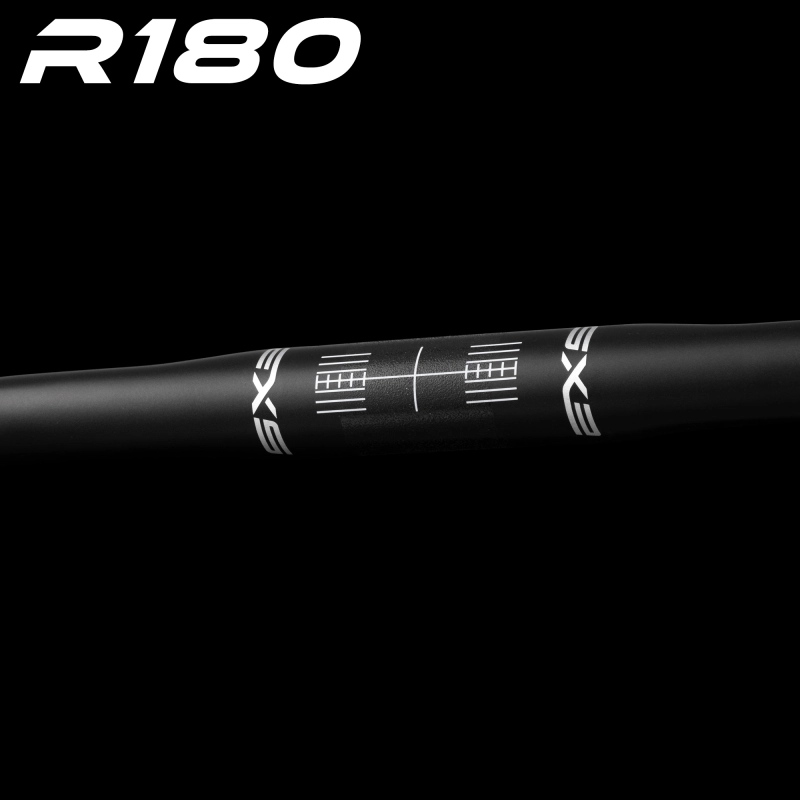

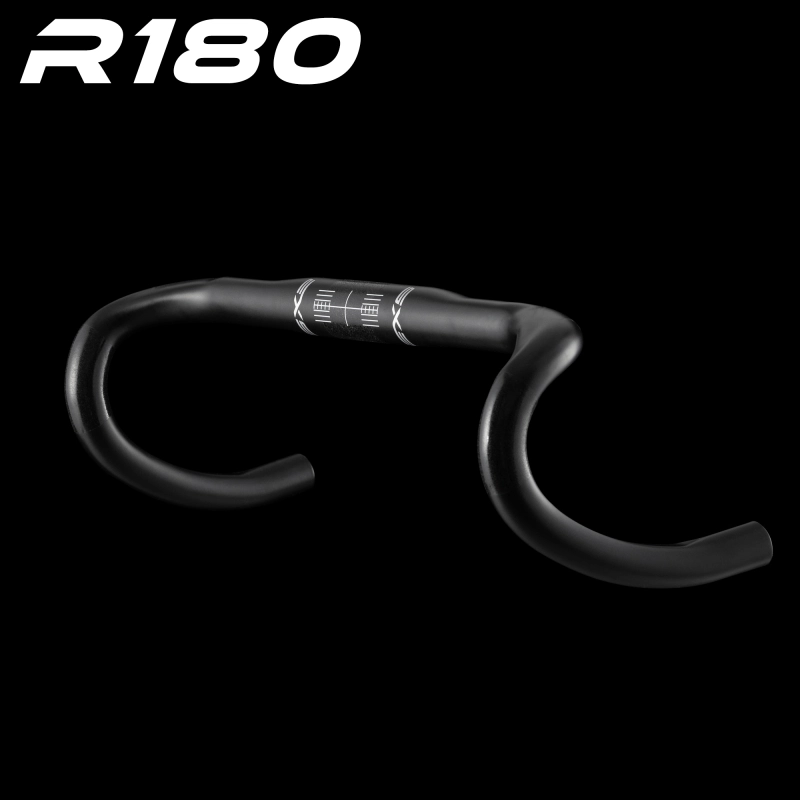

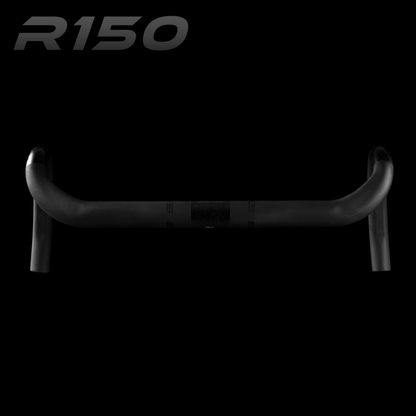

EXS R150/R180 Road Handlebar

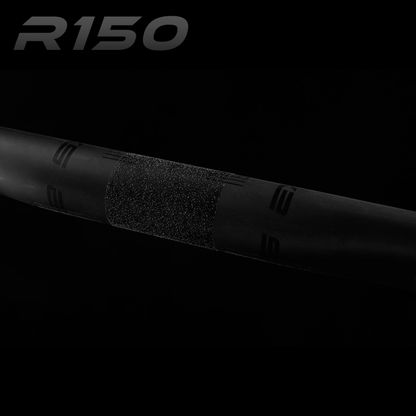

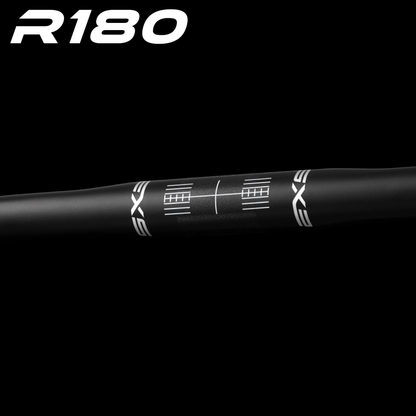

🧠 EXS R150 / R180 Road Handlebar – Where Lightweight Meets Intelligent Ergonomics
Refined through thousands of bike fittings, the EXS R150 and R180 handlebars are engineered to fit a wider range of riders—from elite racers to juniors and women—without compromising on performance. With widths starting from 34cm, and an ergonomically redesigned oval top, this handlebar is about more than weight—it's about fit, comfort, and control.

🏆 Two Models, One Philosophy

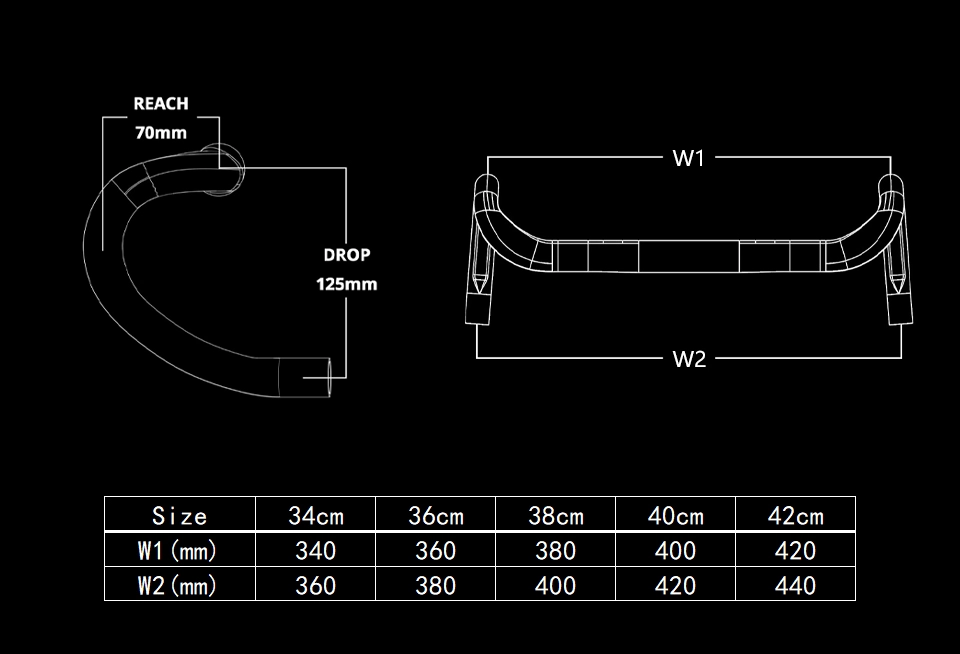

📏 Geometry & Fit
Widths: 34 / 36 / 38 / 40 / 42 cm
Reach: 70mm
Drop: 125mm
Rider Weight Limit: 110kg (ISO 4210 certified)
Short Reach Bend: Supports longer stems for better weight balance and reach management—especially beneficial for Asian riders or smaller body types
No Ramp Drop: Unlike bars with 10° ramp angles (e.g. 3T Ergonova), EXS bars maintain a flatter ramp profile for a higher actual shifter position and reduced spacer use—creating a cleaner cockpit and improved fit.

🧬 Engineered Asymmetry for Real-World Comfort
Special Asymmetrical Oval Top: Based on rider back angle (~40–50°) and shoulder positioning (~80–90°), the ovalized top is shaped for comfort whether you’re cruising or pushing watts.
Corner Shaping Optimized: Enhanced grip comfort for riders who spend long hours on the bar corners.

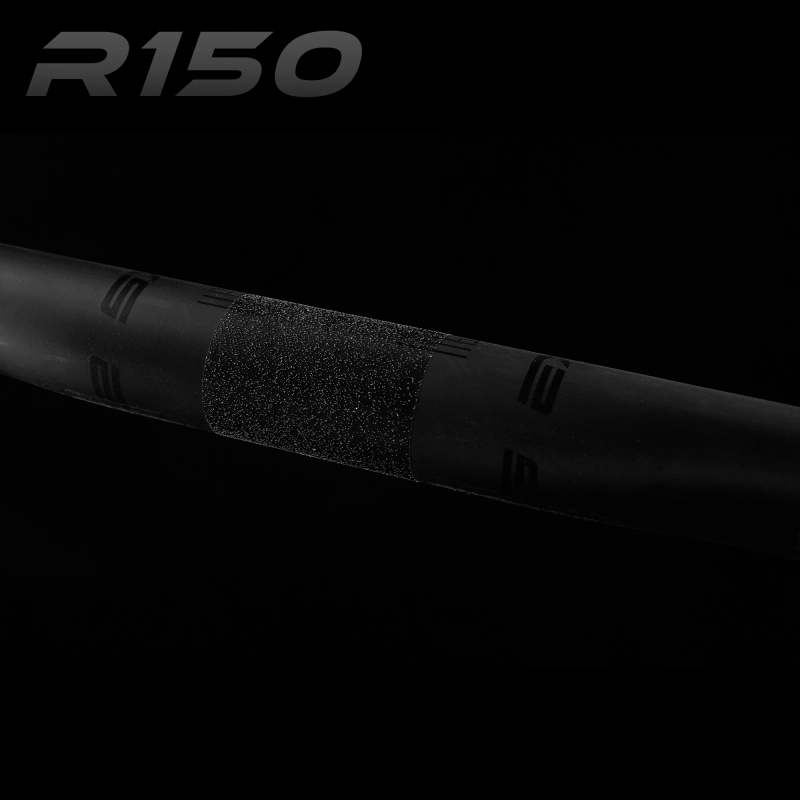

Non-Slip Shifter Zone: Maintains grip under all conditions; ideal for both high and low shifter positions.
Ergonomic Cable Routing: Works seamlessly whether cables go over or under the bar.

🛡️ Certified Safety with Performance in Mind
SGS & ISO-4210 Certified
Impact Test Strength: 32J – exceeds conventional industry standards (ENVE, Easton, 3T)
Warranty: 2-Year, includes non-malicious accident damage (excluding improper installation)
