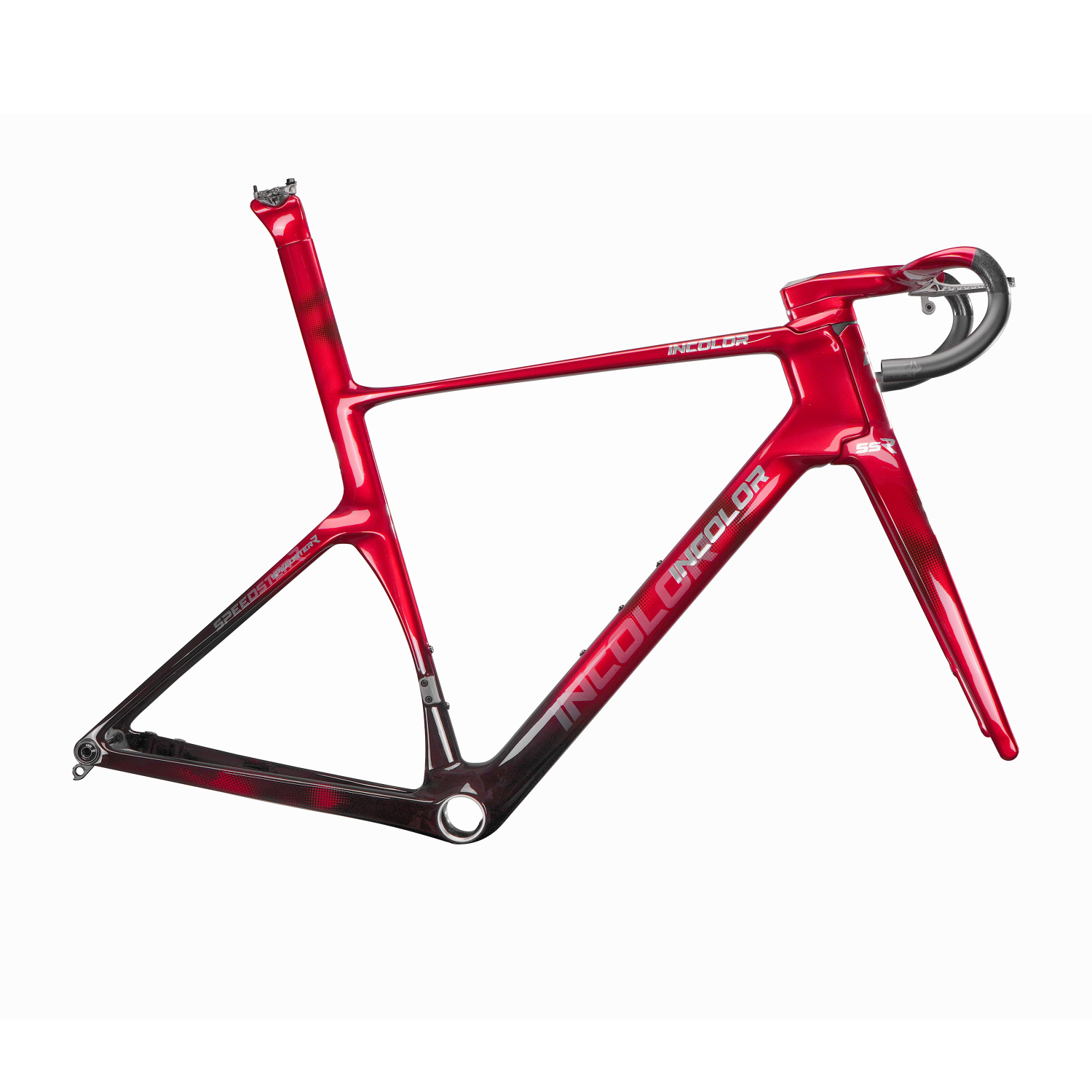

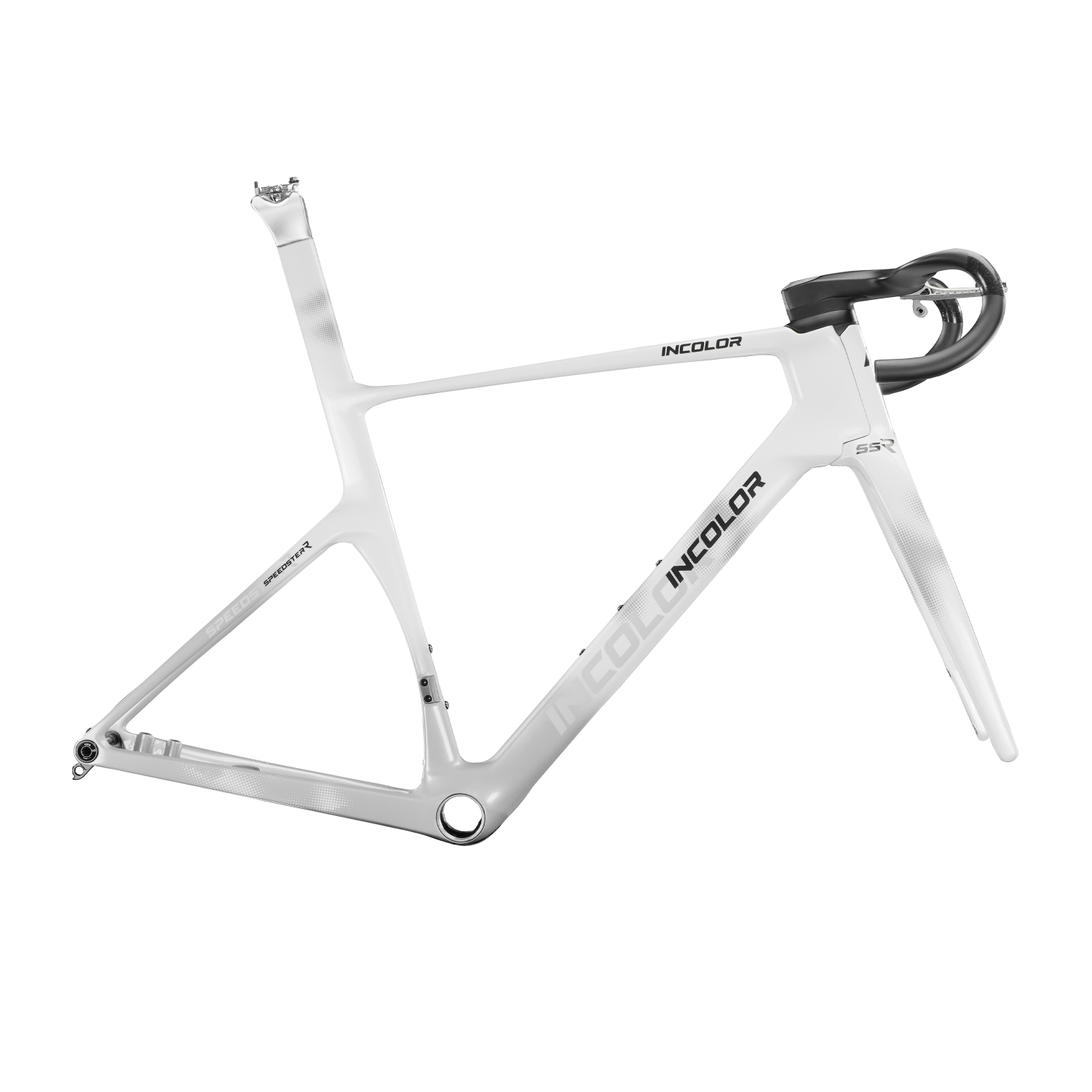

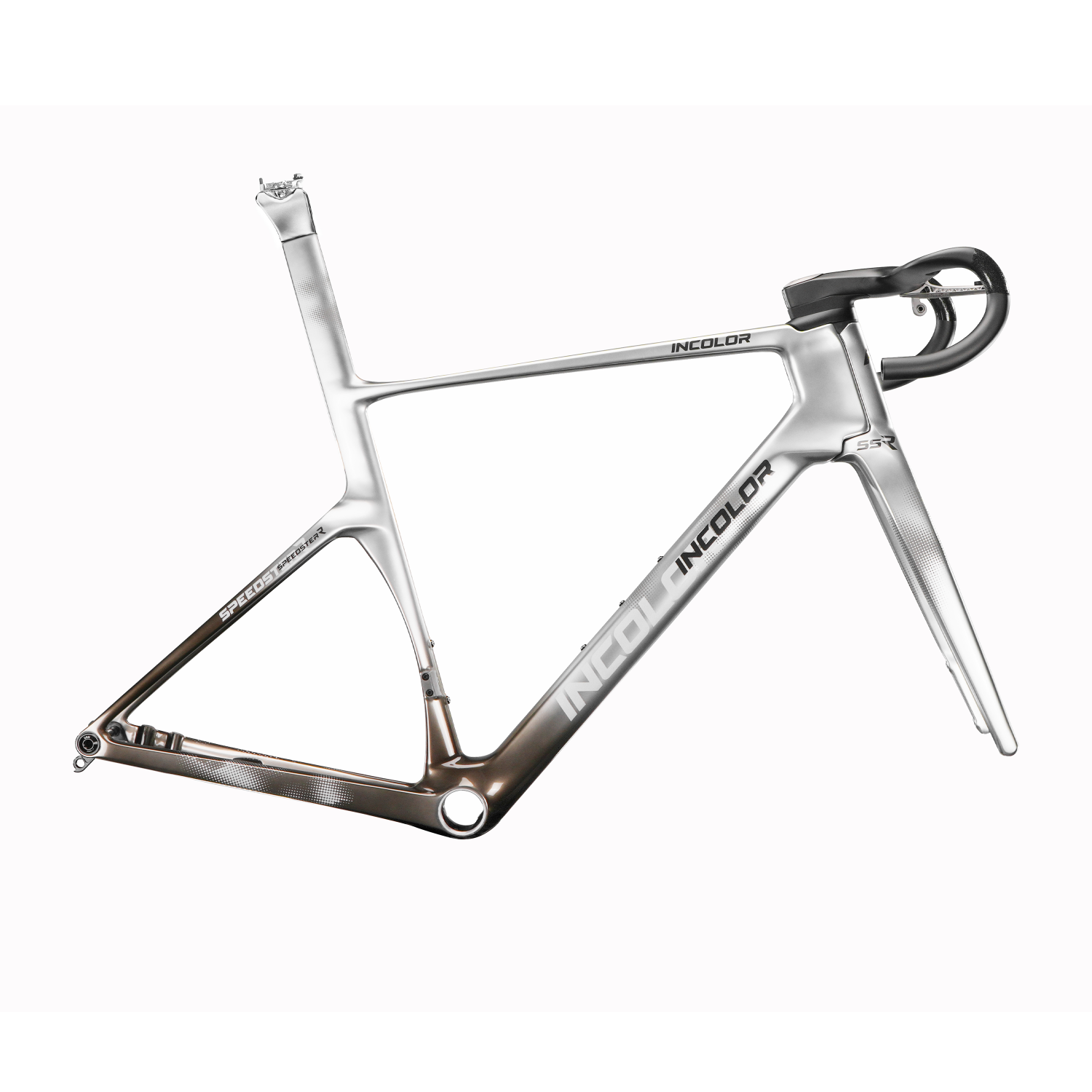

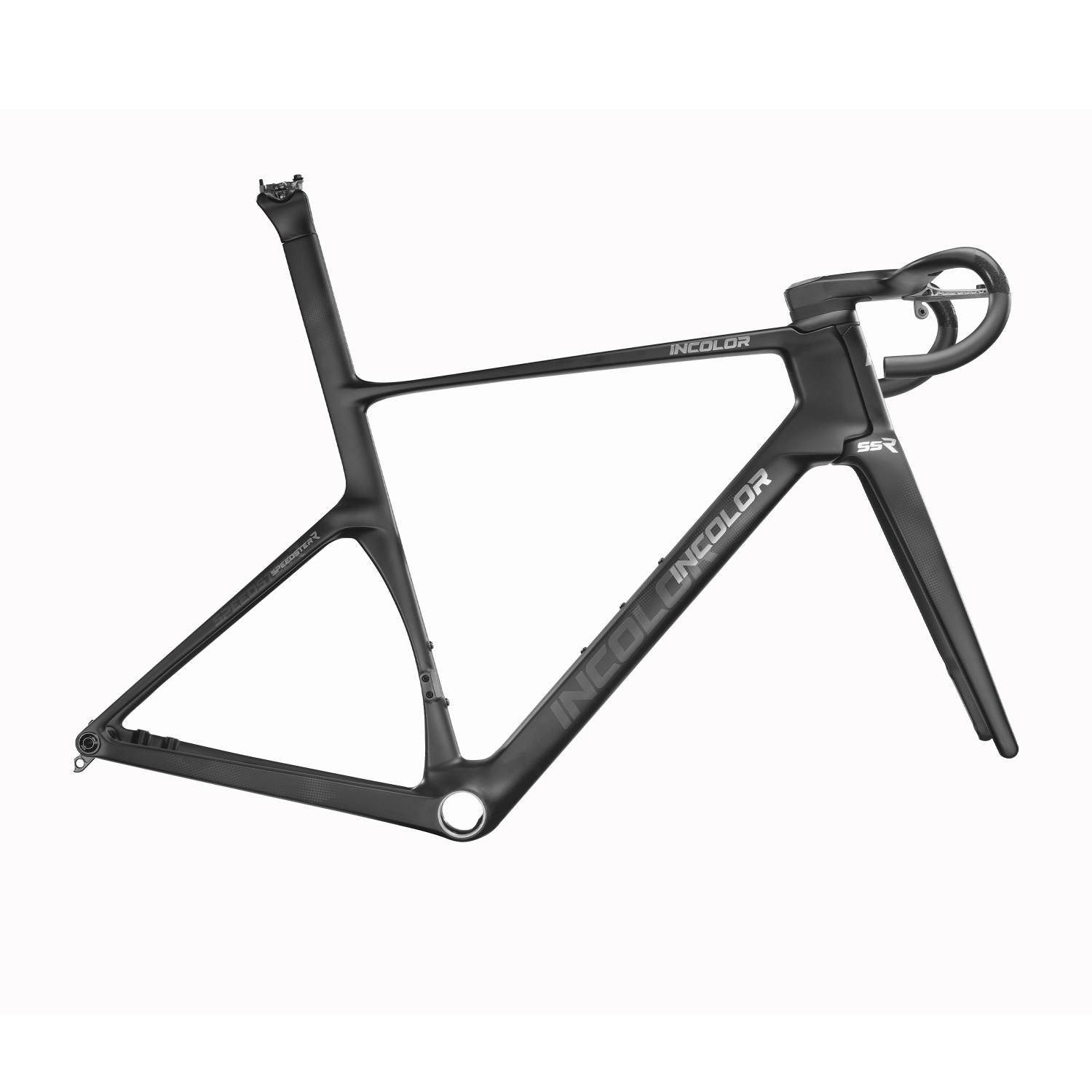

INCOLOR SSR
The SSR represents Incolor’s most advanced expression of precision, stiffness, and aerodynamic refinement.
Every angle was examined.
The SSR was designed to deliver peak performance with seamless elegance.
This bike is an unapologetic demonstration of INCOLOR's engineering DNA.
Every edge slices cleaner, every junction transfers power more directly, and every ride proves that the plies of carbon are working in perfect harmony.
To ride the SSR is to embrace a question that defines progress:
Can it be better?
Specification:
Frame Size: 45, 48, 51, 54, 56, 58, 60
Frame Weight: 750g (M-sized; unpainted, with ISP)
Cable Routing: Internal; Electronic Only
Brake Type: Disc only
Headset Bearing: D39/d30 x h6.5 (45 °)
Limited Rider Weight: 120kg
Wheel size: 700C
Bottom Bracket: Asymmetric T47 (Width 76.75)
Axle: Front: M 12 x 1.0 x 110 taper head thru-axle
Rear: M 12 x 1.0 x 159, taper head thru-axle
Tire Clearance: up to 38c road tyres
Warranty: Limited lifetime warranty
Certification: UCI Certification Pending
FRONTAL AREA
The SSR has had a reduction in frontal area which was tested not only against their own SR frame, but also against the S5 and the SL8. The frame’s frontal area is minimized to just 586.59cm².
DRAG REDUCTION
Tested at the Silverstone Sports Engineering Hub (UK), the SSR demonstrates up to 5.35 W less drag than the SR+ and averages 3.99 W savings over the S5 at 45 km/h across yaw angles of 0–20°.
STIFFNESS
To compete with industry leaders, INCOLOR fine-tuned the bike's exact characteristics by focusing on stiffness in the headtube, bottom bracket, and the fork's lateral performance.

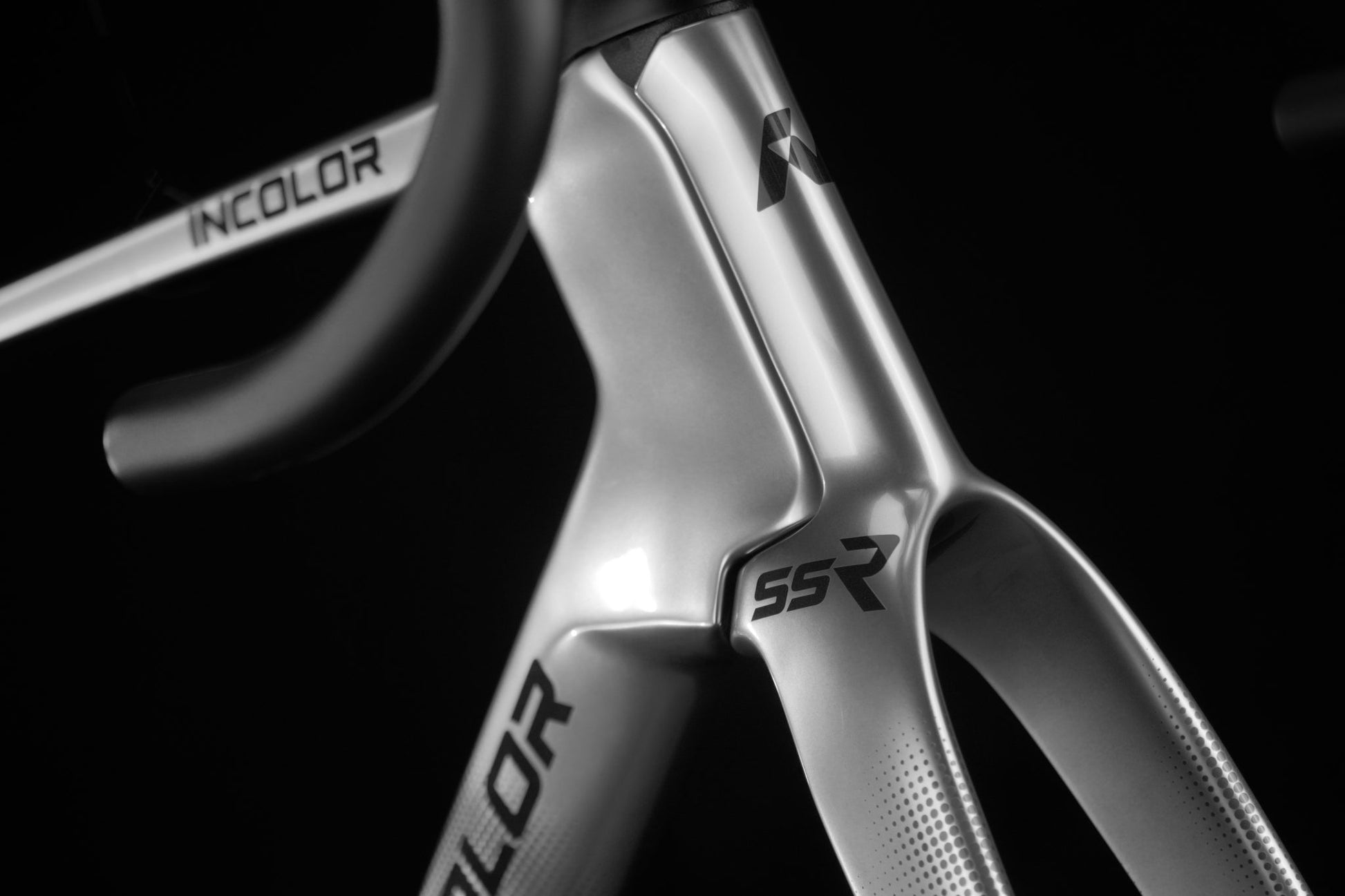

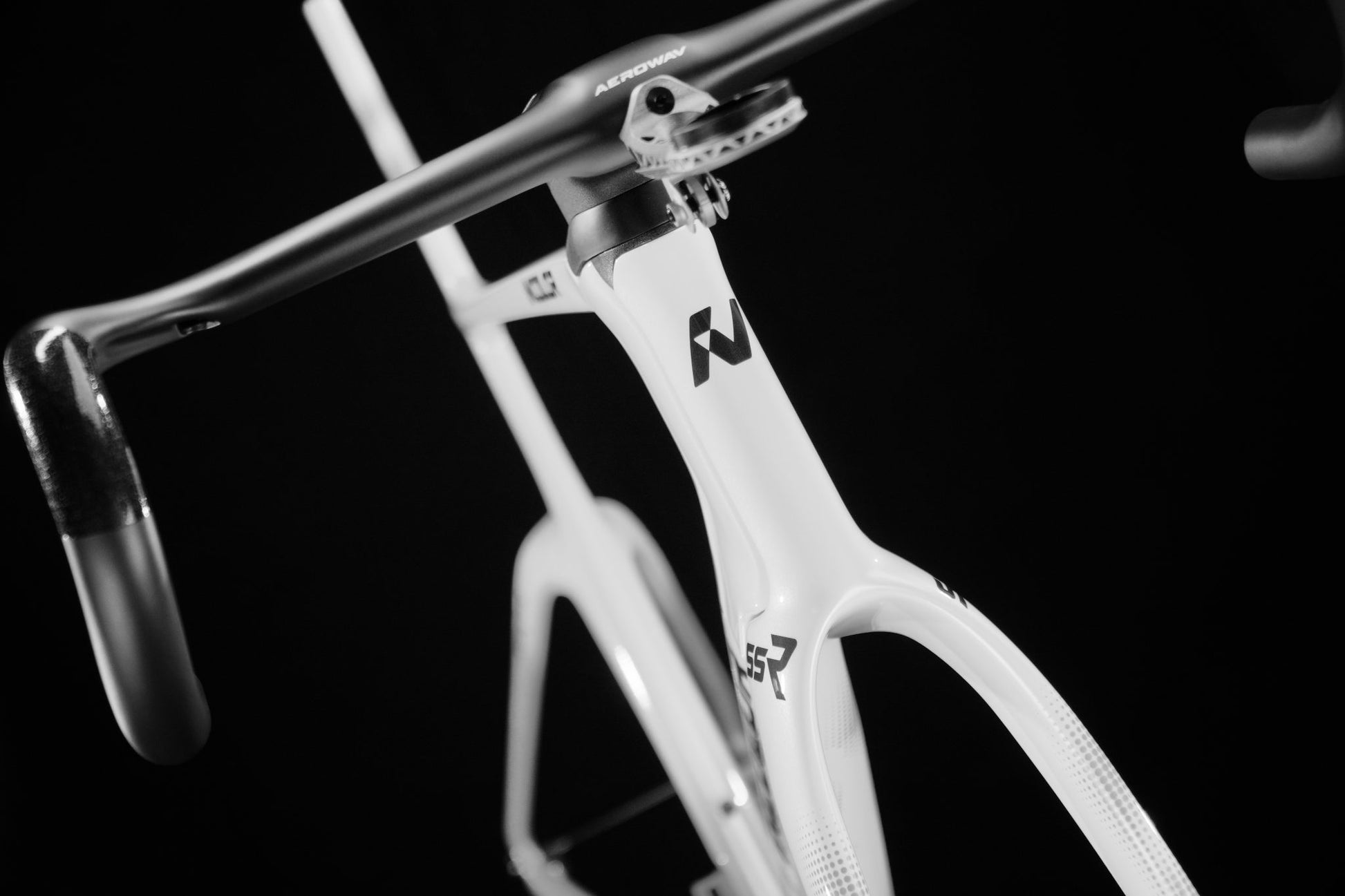

DUAL STEERER TUBE
- The SSR’s radical dual steer tube design narrows the head tube to just 34mm, cutting frontal area by 6.4% over their SR+, while also boosting front-end stiffness.
- By distributing forces between inner and outer tubes, it delivers unmatched steering precision and control.
INTEGRATED SEATPOST
- The SSR features an integrated seatpost, allowing it to drop more weight and increasing compliance by 28%, weighing in at just 750g for a size 54 frame (unpainted without accessories).
ELITE CARBON COMPOSITION
- Crafted from 80T pitch-based and T1100 carbon, the SSR contains nearly three times the high-modulus fiber content of the SR+, achieving extraordinary stiffness and instantaneous power transfer.
VERIFIED AERO PERFORMANCE
- Tested at the Silverstone Sports Engineering Hub (UK), the SSR demonstrates up to 5.35 W less drag than the SR+ and averages 3.99 W savings over the S5 at 45 km/h across yaw angles of 0–20°.

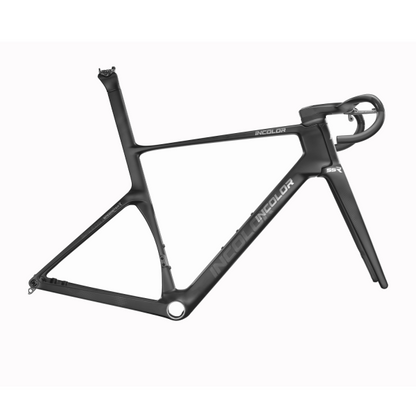

- INCOLOR SSR Frame, Fork and Integrated Seatpost

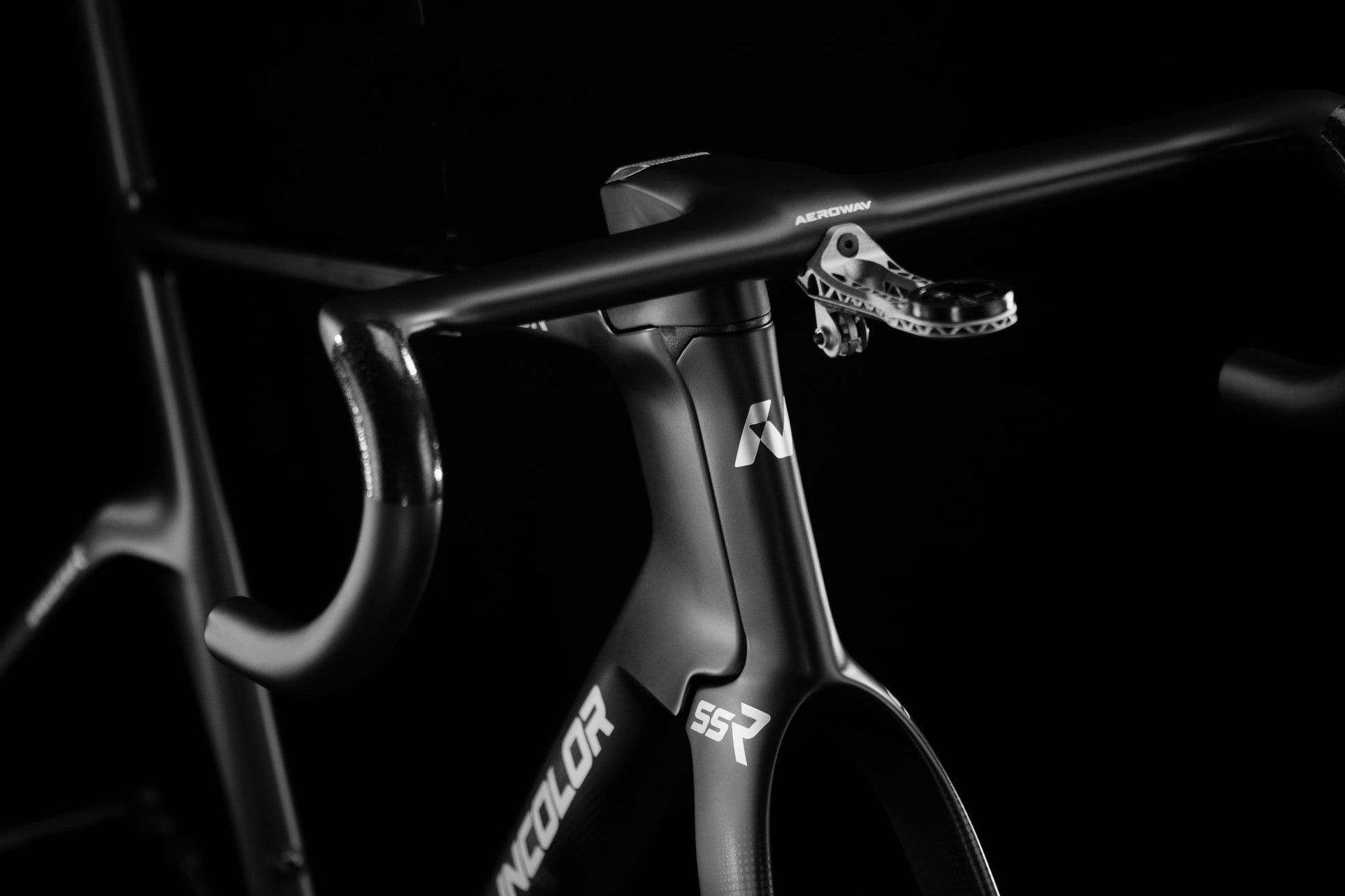

- INCOLOR Aero Cockpit
- Titanium 3D-Printed Accessory Package
INCOLOR Lifetime Warranty:
- Covers all damages caused by material or production issues (excludes human or force majeure causes).
- For major damage, a 30% discount applies toward a new replacement.

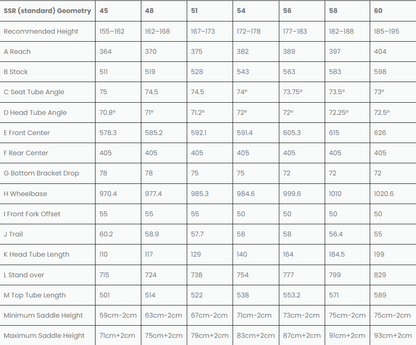

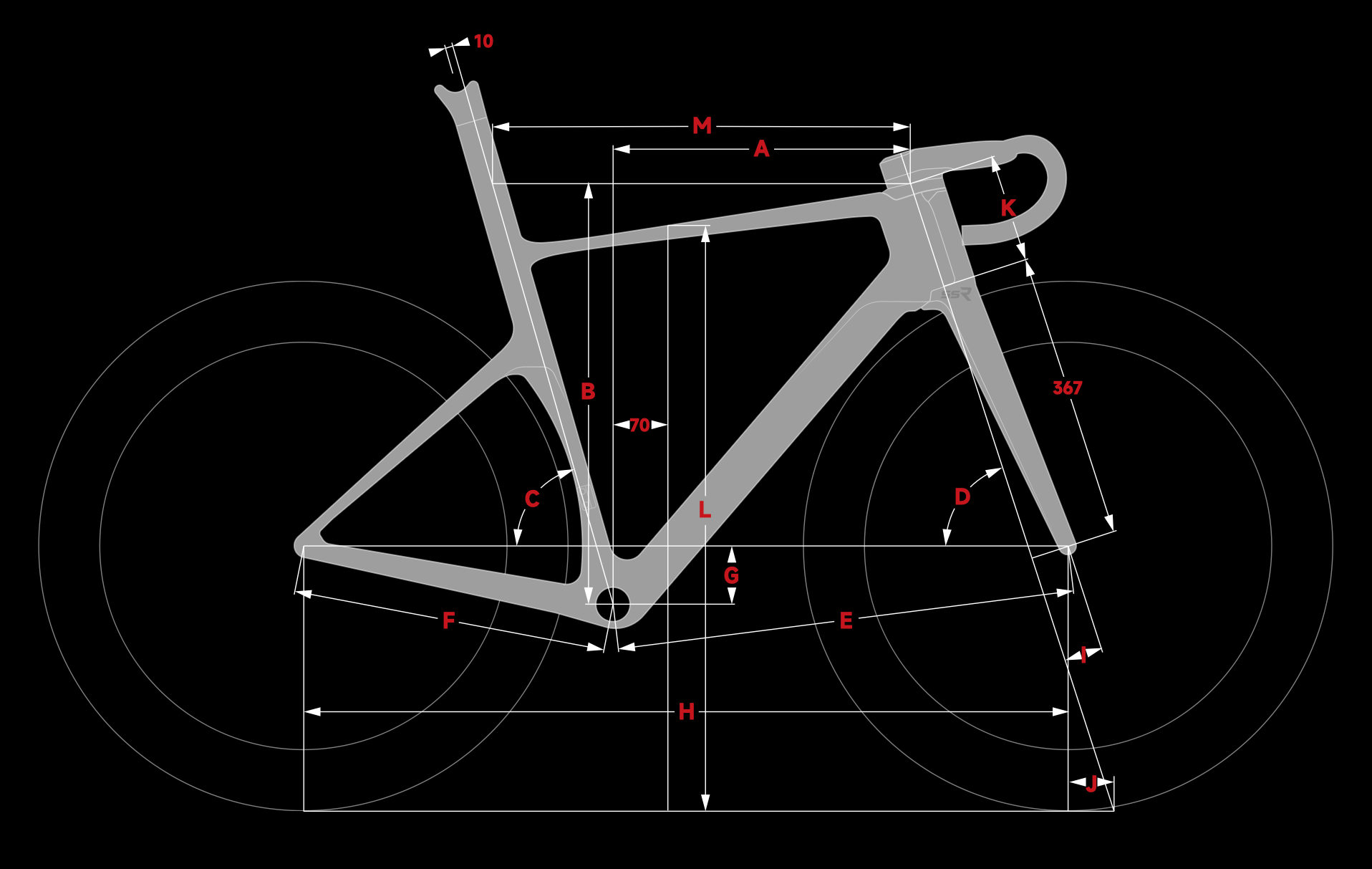

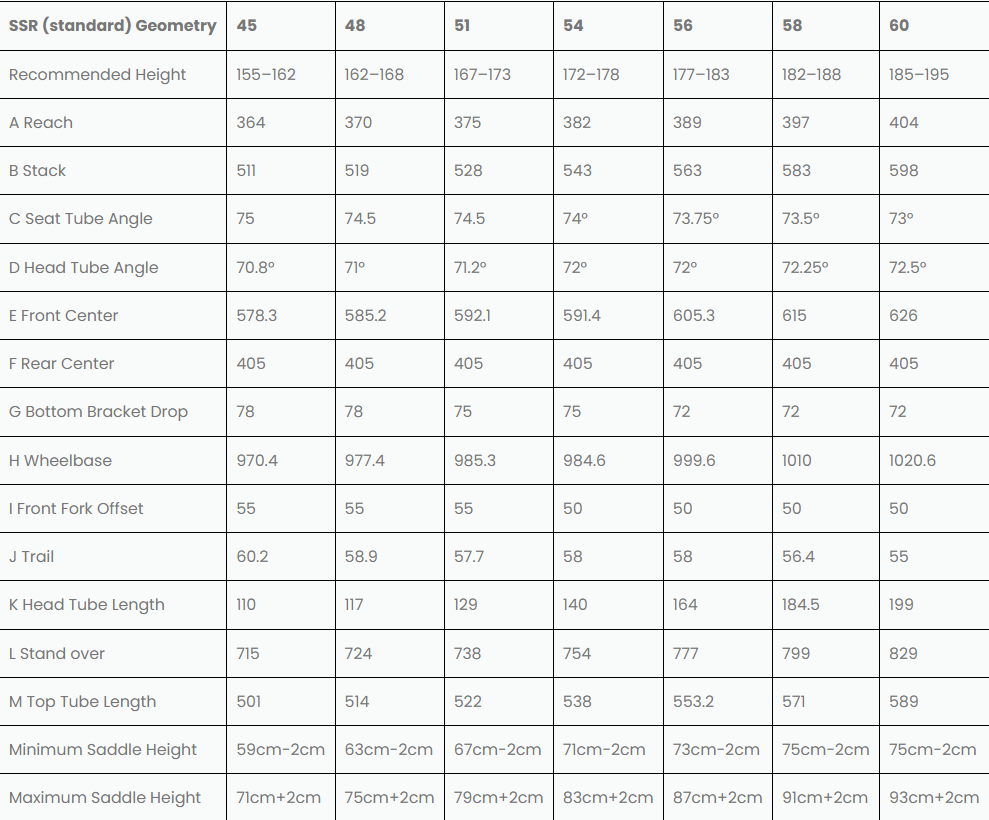

Available in seven sizes (45–60) for riders 155–195 cm tall, the SSR offers three fit profiles
Aggressive, Moderate, and Comfort.
Its integrated seatpost allows precise saddle height and setback adjustments, making it the first performance frame to offer customizable geometry without sacrificing efficiency.
