Magene EXAR Pro Carbon Wheelset

Magene EXAR Pro

HI-MOD Carbon Road Wheelset – 45mm or 58mm, Rim Brake or Disc Brake, from 1350 g

🔥 Race-ready carbon wheels that have passed UCI impact testing 🔥

🚲 Four builds: RB45 / RB58 (rim brake) and DB45 / DB58 (disc brake)

🚲 Wheelset weight from 1350 g (RB45) to 1500 g (DB58)

🚲 HI-MOD carbon rims, 27mm external / 20mm internal width (rim-brake rear 26 / 19.5mm)

🚲 Pillar Wing21 flat spokes and a 36T flat ratchet hub

🚲 Tubeless-ready with factory-fitted rim tape, clincher compatible

🚲 Shimano 11-speed freehub as standard, SRAM XDR available separately

More Information

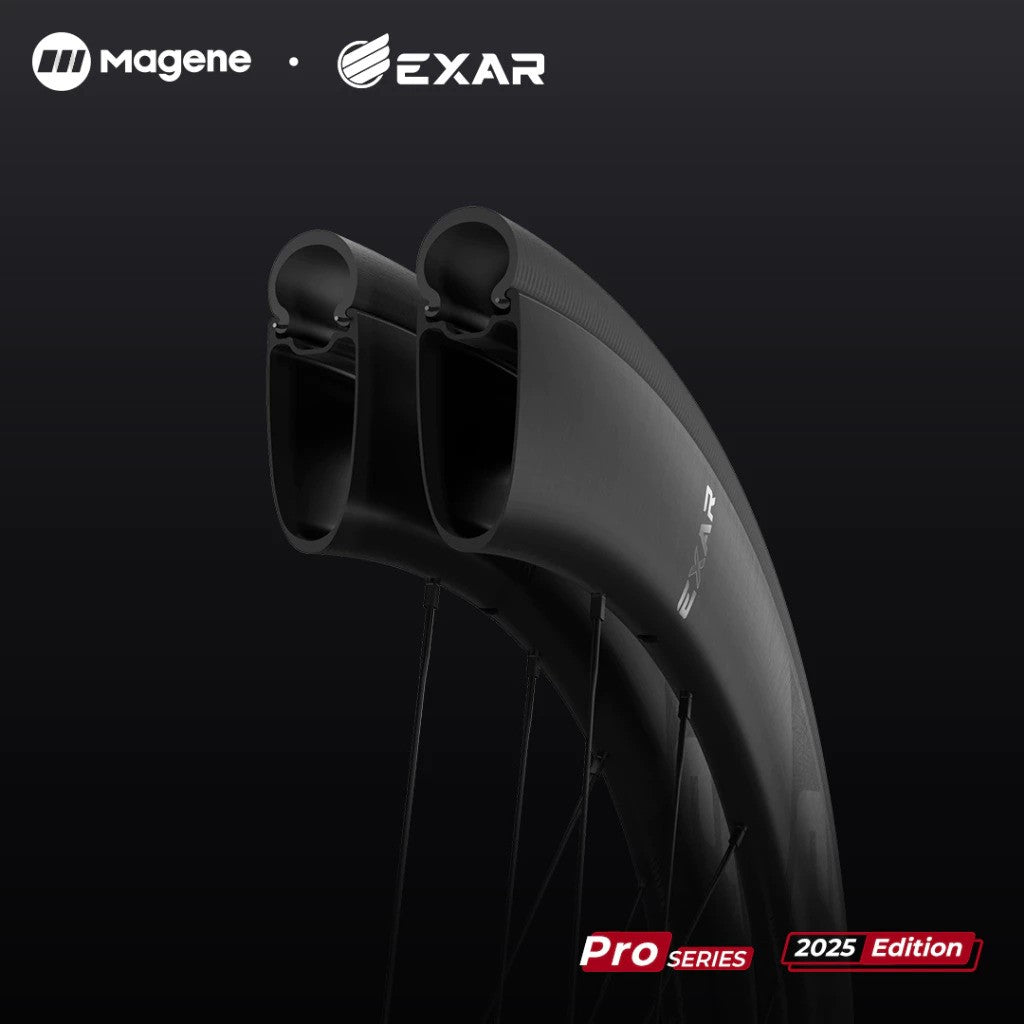

The EXAR Pro is Magene's all-round carbon road wheelset, designed as one integrated product rather than a pile of separate parts. HI-MOD carbon rims keep weight low while staying stiff, and automatic carbon winding pre-stresses the fibre for straightness and consistency.

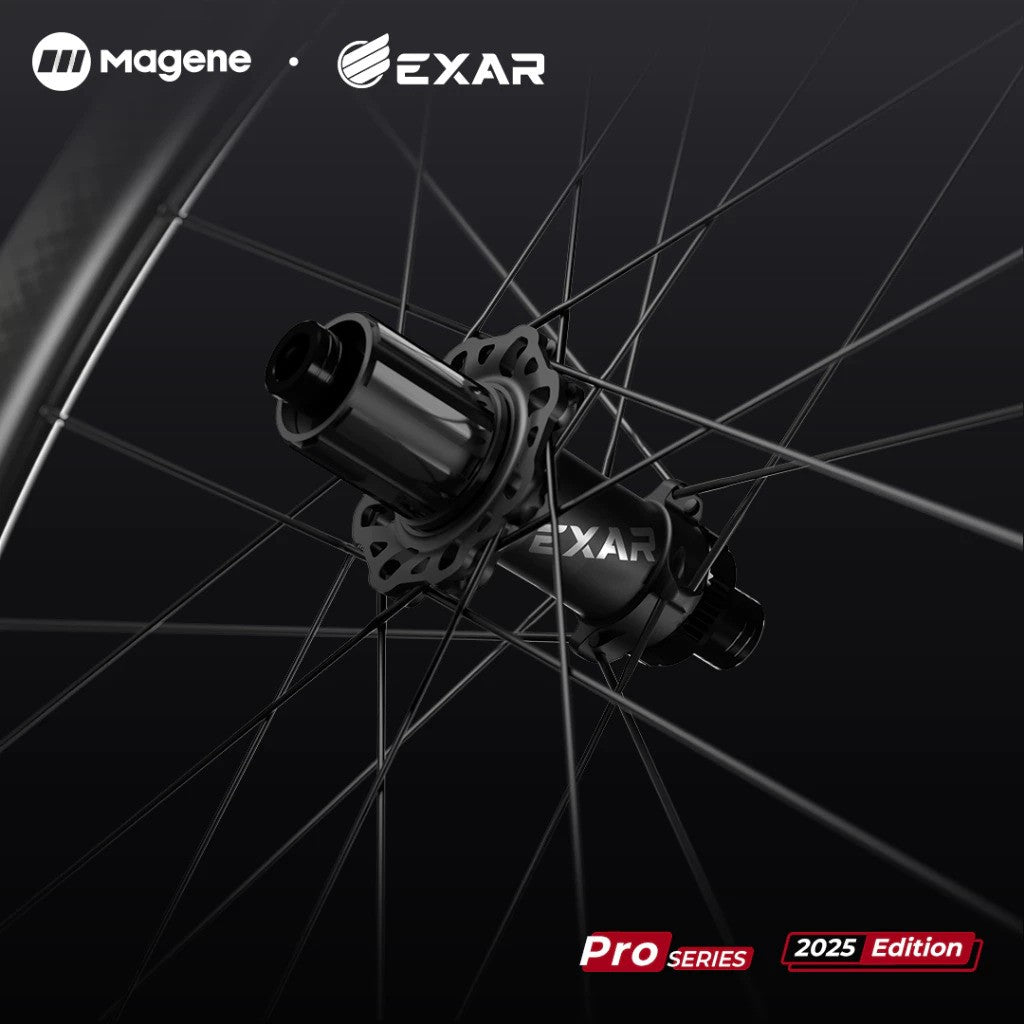

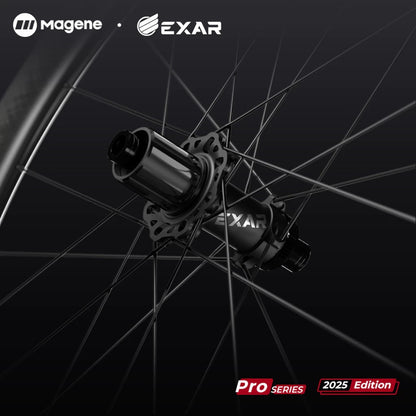

Choose 45mm for climbing and all-round riding, or 58mm for flatter, faster roads. The 45mm rim-brake rear is asymmetric to balance spoke tension, the 58mm rim-brake rear is symmetric to resist deflection in uneven airflow, and the disc rims are symmetric with an optimised flange width so spoke tension is nearly equal on both sides. Hubs are FEA-designed, with an enlarged rear drive-side flange and spokes aligned to the direction of torque.

The 36-tooth flat ratchet gives tight engagement and can be swapped for a different tooth count; a 54T ratchet upgrade for the 2025 Pro wheels is available separately. Rim-brake rims have a grooved dewatering line and a resin brake track, and special carbon brake blocks are included. The bare carbon rim has passed a 40 J UCI impact test.

Available Options

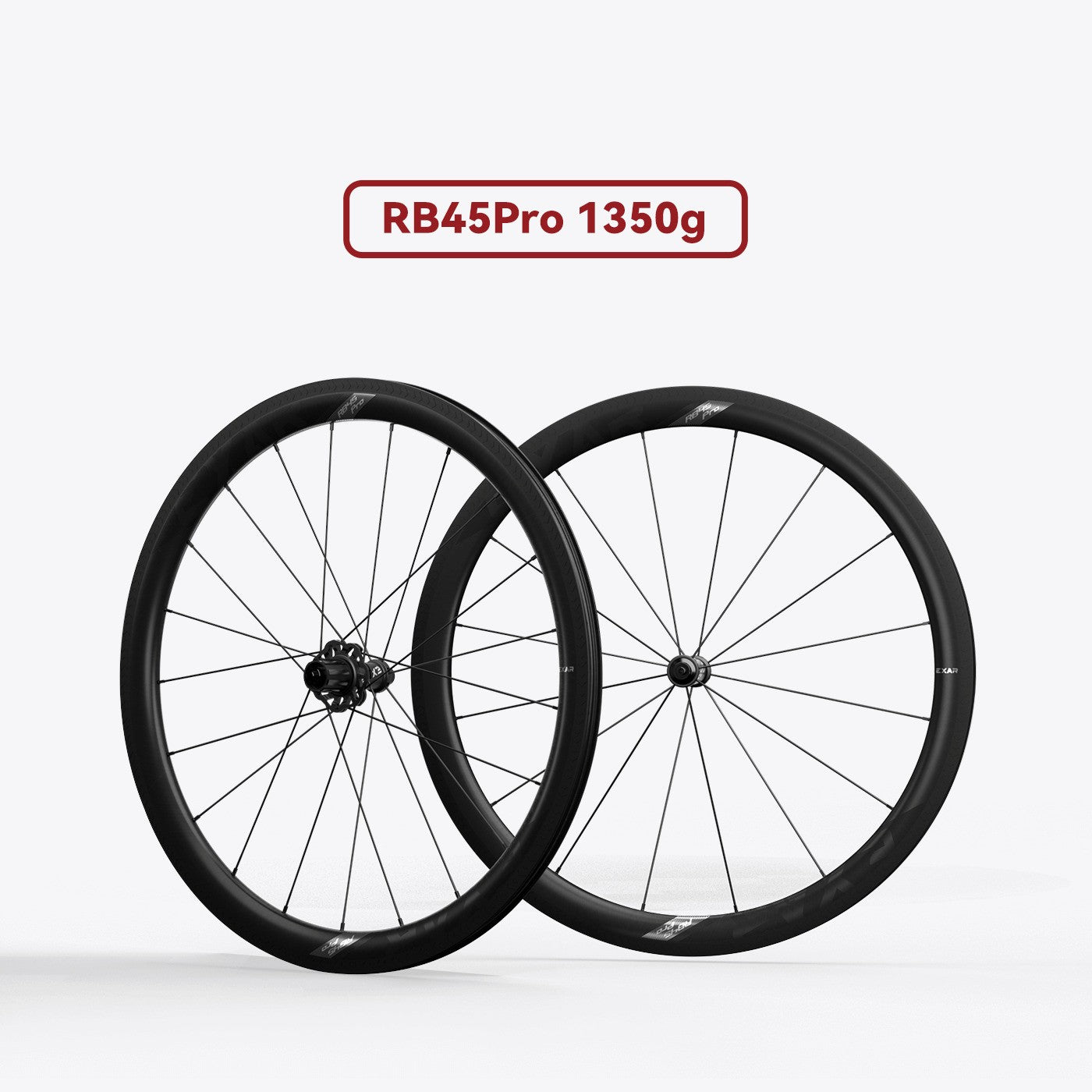

✔ RB45 (Rim Brake) – 45mm rim, 1350 g, 100/130mm quick release

✔ RB58 (Rim Brake) – 58mm rim, 1425 g, 100/130mm quick release

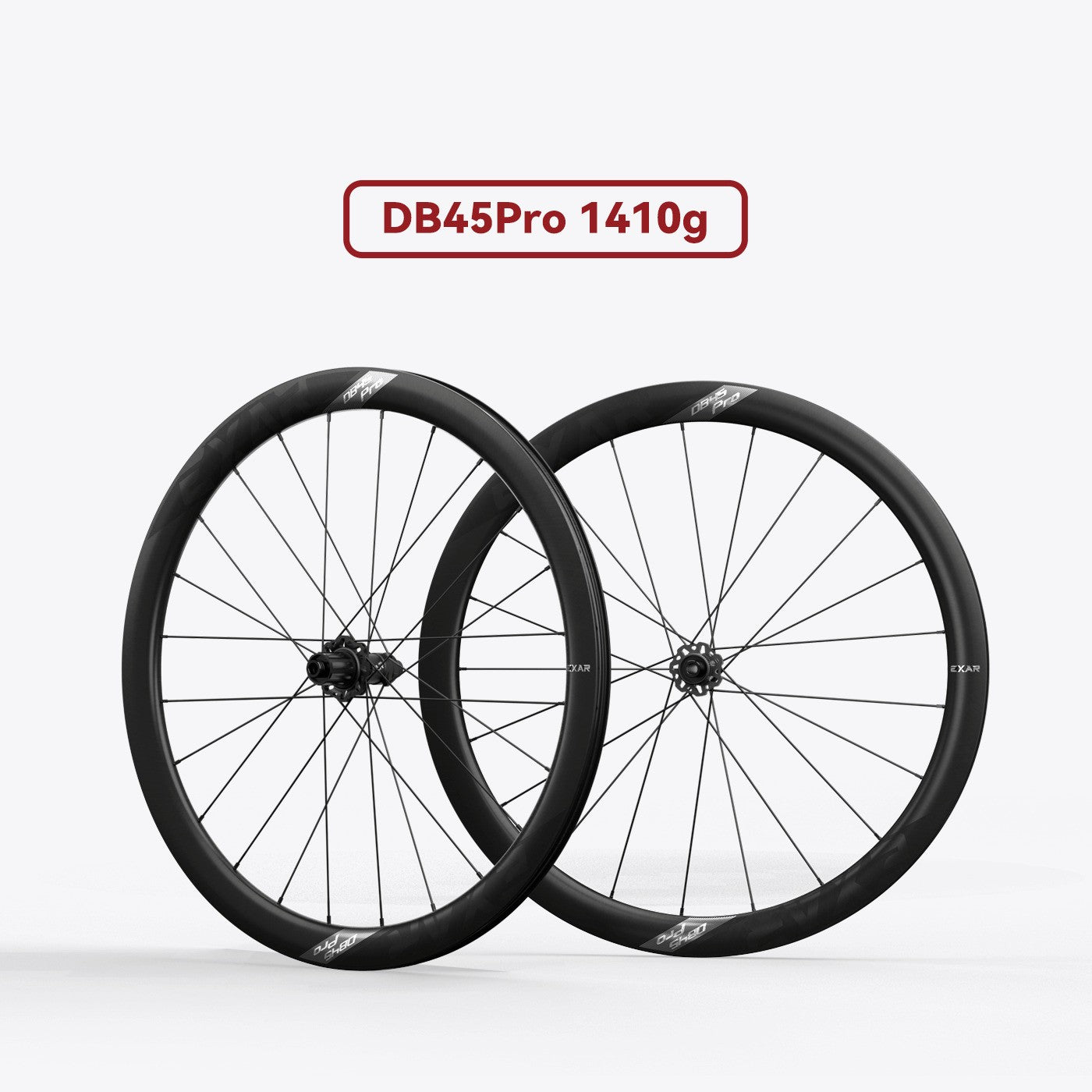

✔ DB45 (Disc Brake) – 45mm rim, 1410 g, 100/142mm thru-axle

✔ DB58 (Disc Brake) – 58mm rim, 1500 g, 100/142mm thru-axle

Freehub

The Pro comes with a Shimano 11-speed freehub as standard. For SRAM XDR (12-speed), order the Magene EXAR Freehub Body separately. WhatsApp us if you need a Campagnolo N3W freehub or a 100/135mm quick-release disc version.

Specifications

✔ Brake: Rim brake (RB45, RB58) or disc brake (DB45, DB58)

✔ Rim Depth: 45mm or 58mm

✔ Rim Width: 27mm external / 20mm internal (rim-brake rear 26mm / 19.5mm)

✔ Weight: RB45 1350 g, RB58 1425 g, DB45 1410 g, DB58 1500 g (wheelset, ±3%, without quick release and rim tape)

✔ Rim Material: HI-MOD carbon fibre

✔ Spokes: Pillar Wing21 flat spokes, self-locking nipples

✔ Hub: FEA-designed, 36T flat ratchet (DT-compatible, replaceable)

✔ Axle Spacing: Rim brake 100/130mm quick release; disc brake 100/142mm thru-axle

✔ Freehub: Shimano 11-speed (standard); SRAM XDR and Campagnolo N3W available separately

✔ Cassette Compatibility: Shimano 8–12s; SRAM 8–12s (XDR freehub for 12s); Campagnolo 8–13s (N3W freehub required)

✔ Tyres: Tubeless or clincher; 25c and wider, 28–32c suggested

✔ Max Tyre Pressure: Clincher 120 / 110 / 100 / 90 psi (25 / 28 / 30 / 32c); tubeless 110 / 100 / 90 / 80 psi

✔ Includes: Front and rear wheel, tubeless rim tape (pre-fitted), 2 x tubeless valves, manual. Rim-brake models also include 4 x carbon brake blocks and 2 x quick releases

Kindly note: stock availability shown online may not be up to date. Please WhatsApp us to confirm before ordering.
