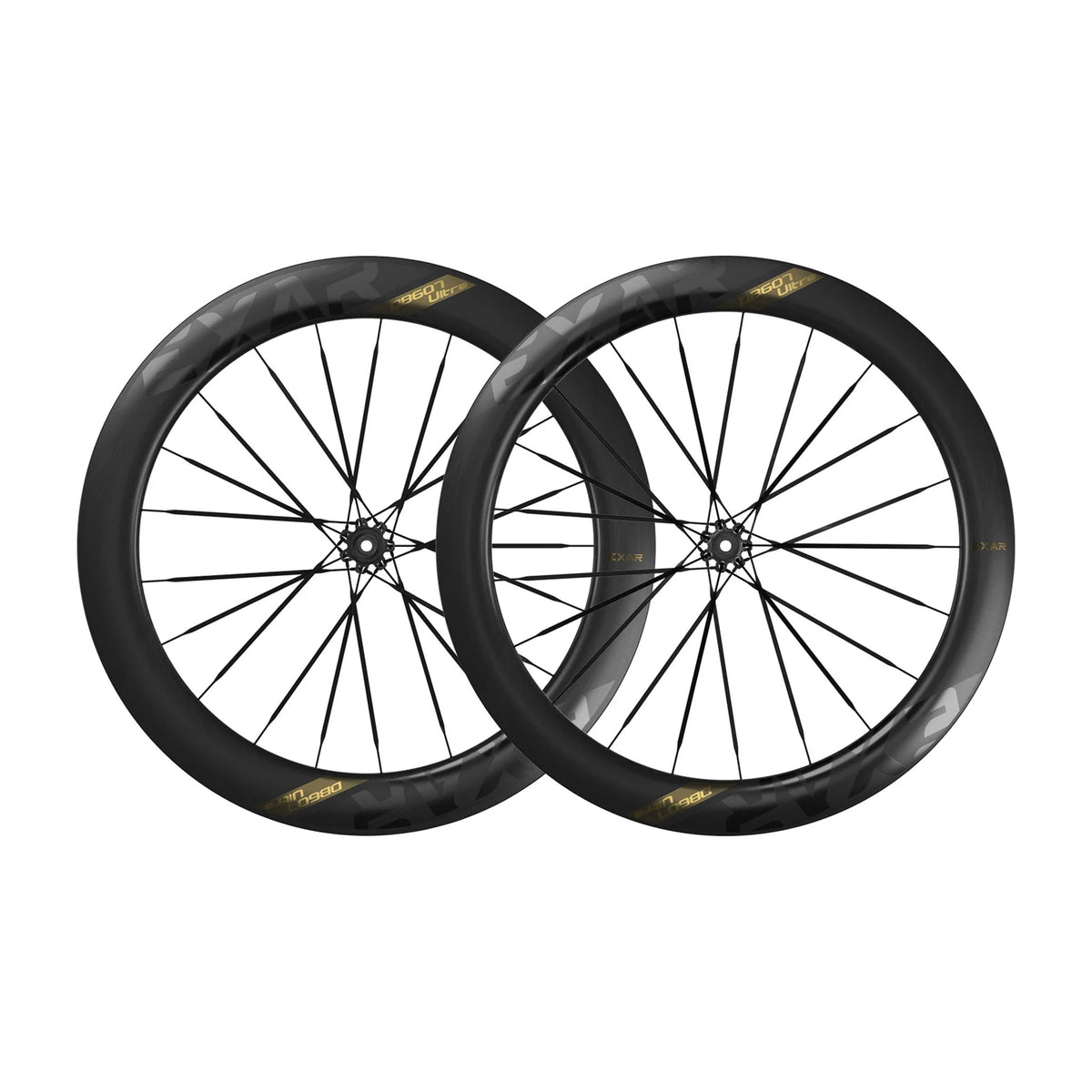

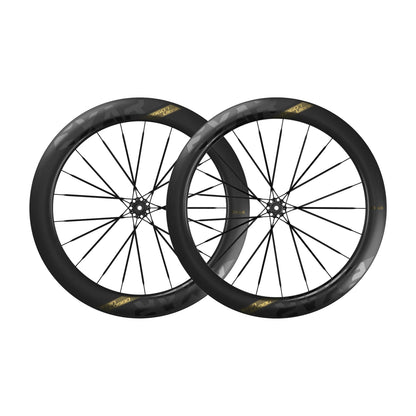

Magene EXAR Ultra Carbon Disc Wheelset

Magene EXAR Ultra

HI-MOD Carbon Disc Wheelset with Carbon Spokes – 40/45, 50/58 or 60/67mm, from 1280 g

🔥 Carbon rims, carbon spokes and ceramic bearings 🔥

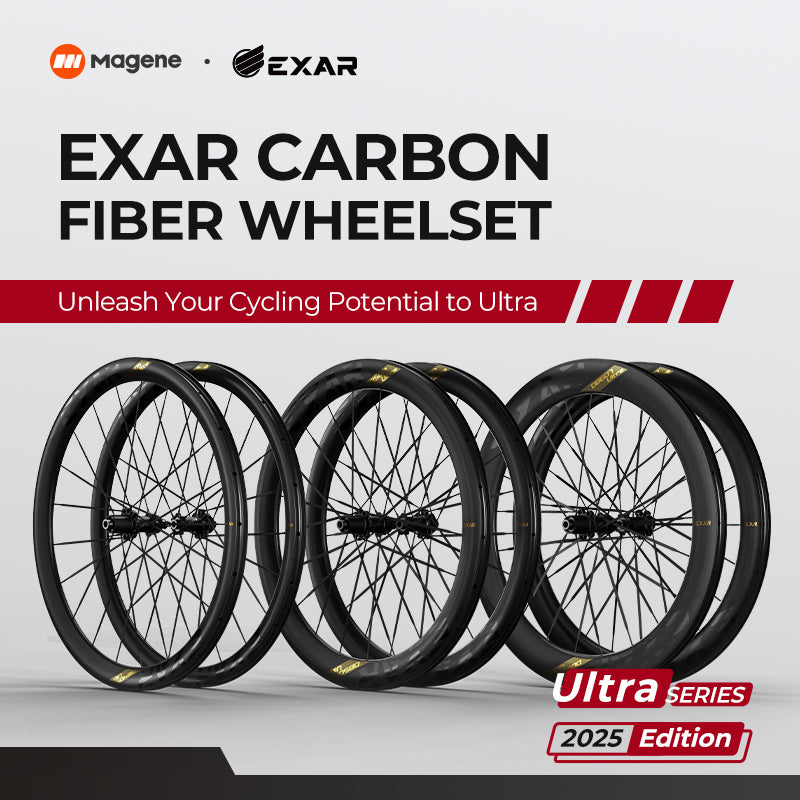

🚲 Three disc-brake builds: DB405 (40/45mm), DB508 (50/58mm) and DB607 (60/67mm)

🚲 Wheelset weight from 1280 g

🚲 HI-MOD carbon rims and VONOA carbon spokes at 2.8 g each

🚲 30mm external / 23mm internal width (DB607 front 32mm), tubeless-ready

🚲 Ceramic bearings and a 36T flat ratchet

🚲 Shimano 11-speed or SRAM XDR freehub

More Information

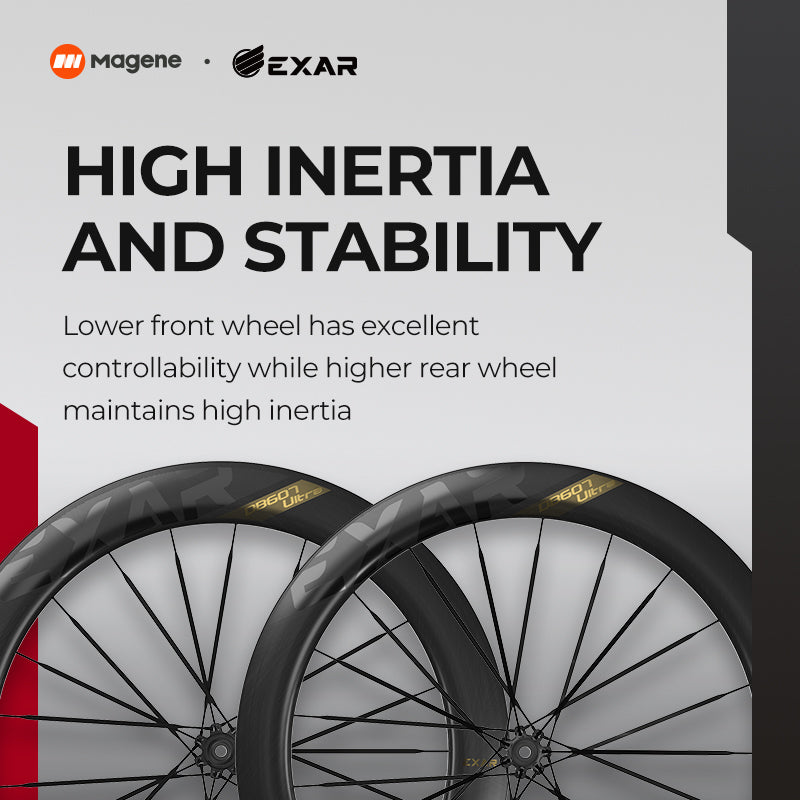

The EXAR Ultra is Magene's premium disc-brake wheelset. The front wheel is lower and the rear is deeper, which keeps steering easy to control while the rear adds stability and aero benefit. DB405 (40mm front, 45mm rear) is aimed at climbing, DB508 (50/58mm) balances climbing and cruising, and DB607 (60/67mm) is aimed at fast, flat cruising.

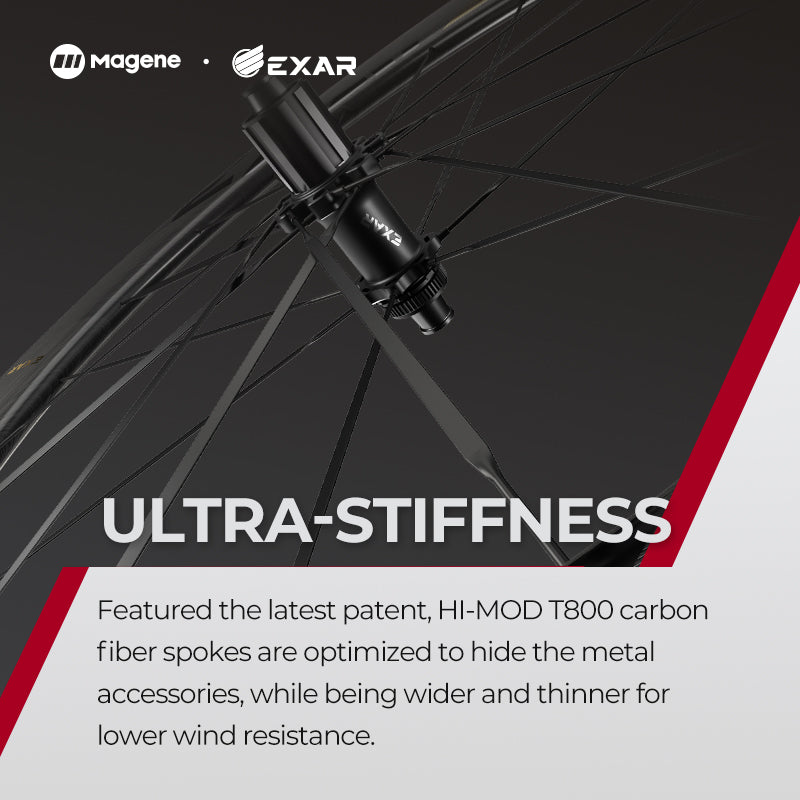

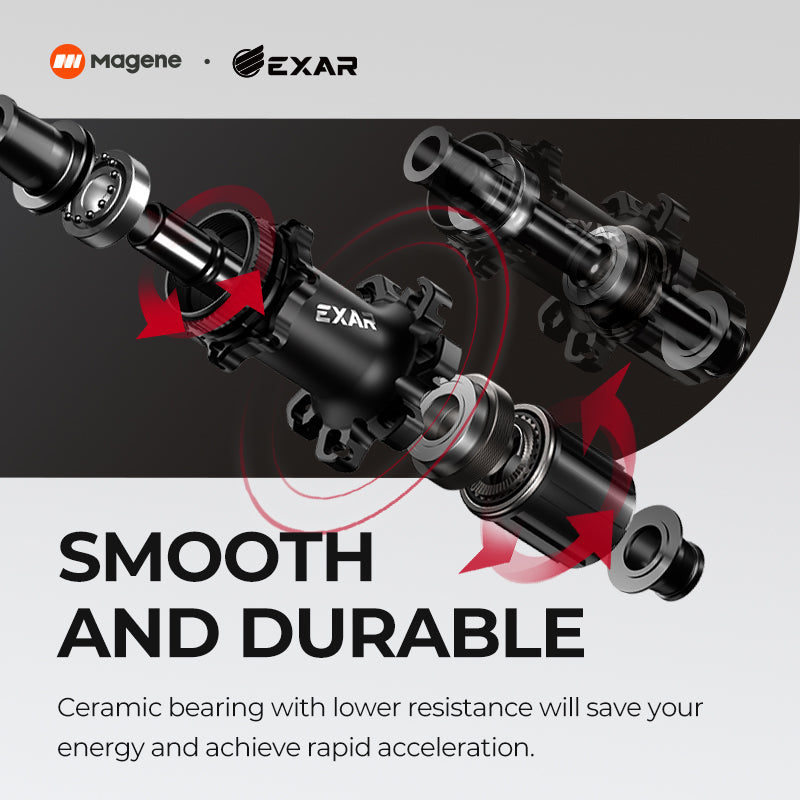

Both the rims and the spokes are HI-MOD carbon. VONOA carbon spokes weigh just 2.8 g each; Magene states they are about 30% lighter and stronger in tension than top-end steel spokes, with hidden metal fittings and a shape that reduces wind resistance. Hubs have an optimised flange diameter to reduce stress at the spoke contact points, smoothed bearing edges, and ceramic bearings to reduce friction.

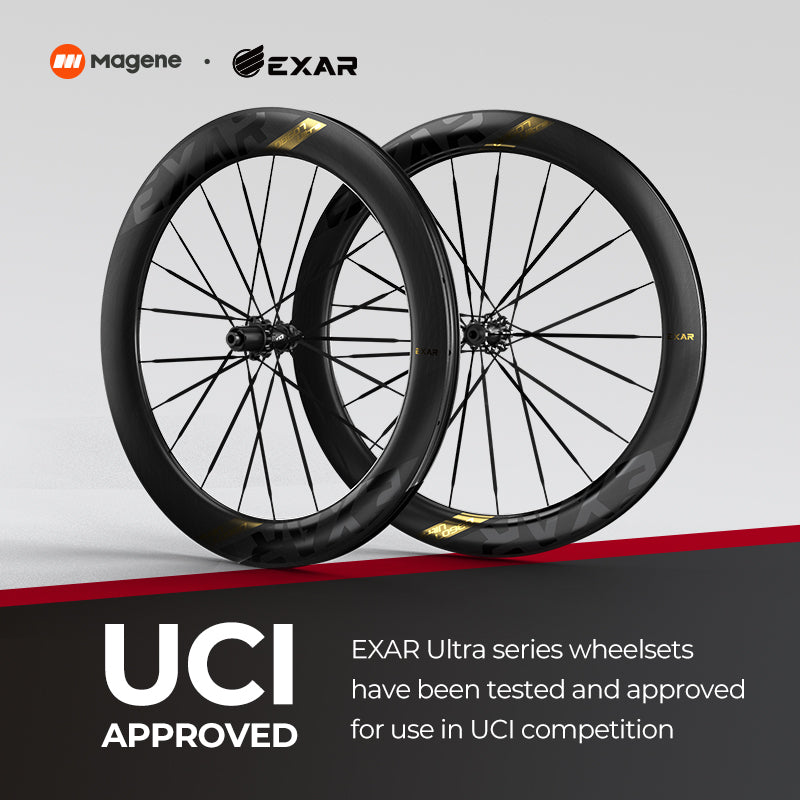

The 23mm internal width gives a flatter tyre profile for aero and comfort, and suits 28–32c tyres. The wheelset works with tubeless and clincher tyres, with tubeless rim tape and rim plugs included, and is designed to run with TPU inner tubes. The bare carbon rim has passed a 40 J UCI impact test.

Available Options

✔ DB405 – 40mm front / 45mm rear, 1280 g, 30mm external width

✔ DB508 – 50mm front / 58mm rear, 1350 g, 30mm external width

✔ DB607 – 60mm front / 67mm rear, 1460 g, 32mm front and 30mm rear external width

✔ Shimano – Shimano 11-speed freehub (standard)

✔ XDR – SRAM XDR freehub for 12-speed SRAM cassettes

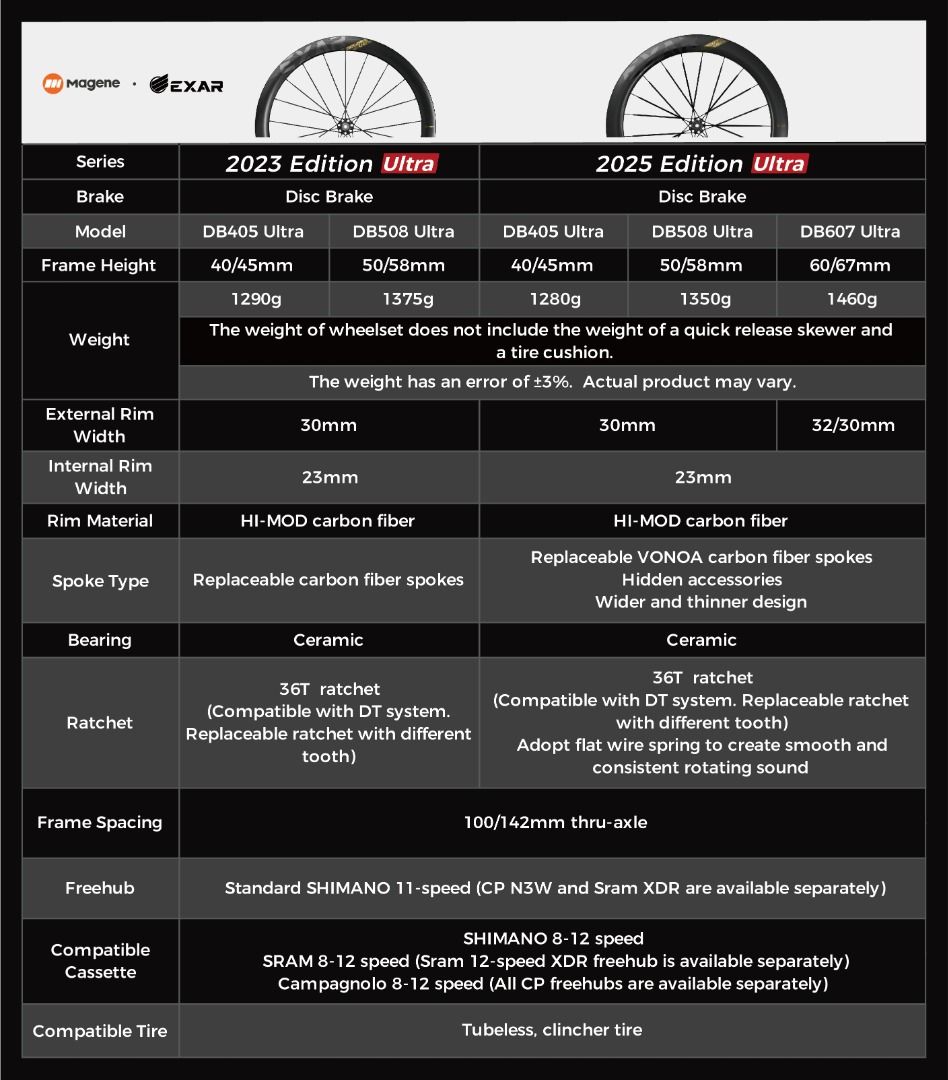

Specifications

✔ Brake: Disc brake

✔ Rim Depth: DB405 40mm / 45mm, DB508 50mm / 58mm, DB607 60mm / 67mm (front / rear)

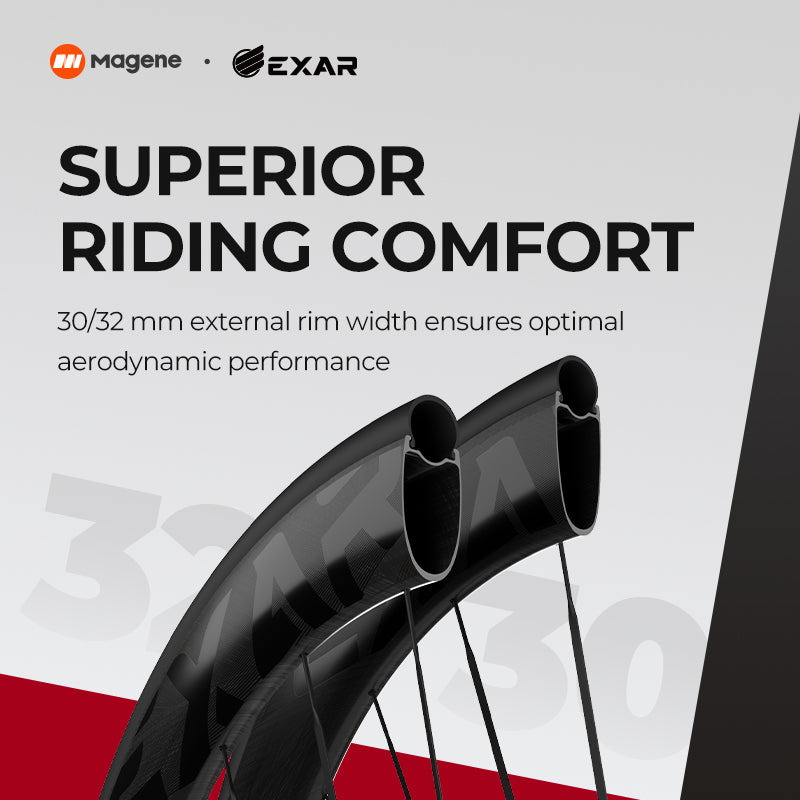

✔ Rim Width: 23mm internal; external 30mm (DB607 front 32mm)

✔ Weight: DB405 1280 g, DB508 1350 g, DB607 1460 g (wheelset, ±3%, without quick release and rim tape)

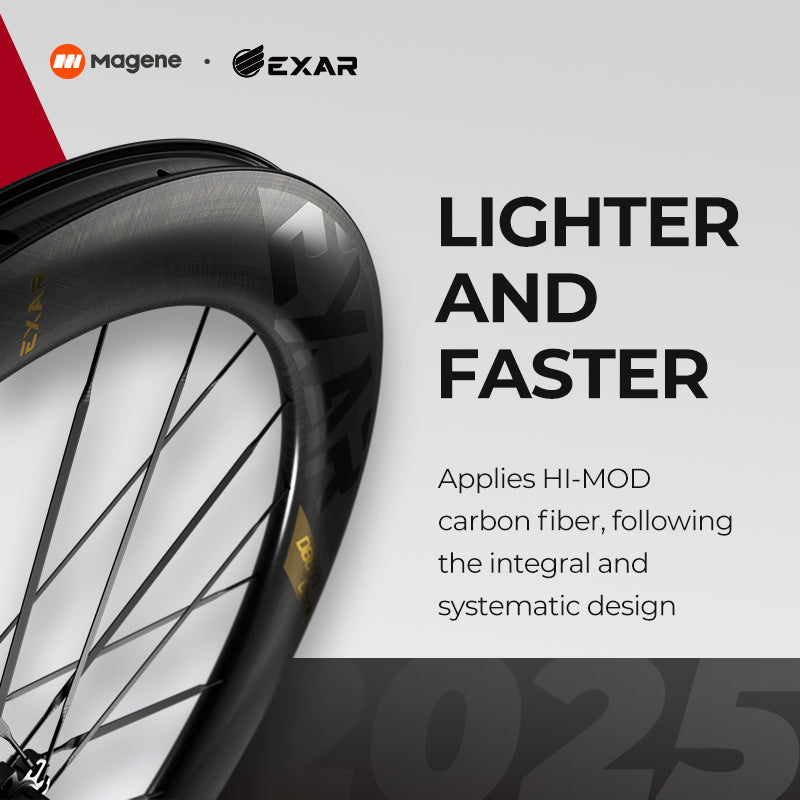

✔ Rim Material: HI-MOD carbon fibre

✔ Spokes: HI-MOD carbon fibre (VONOA, 2.8 g each)

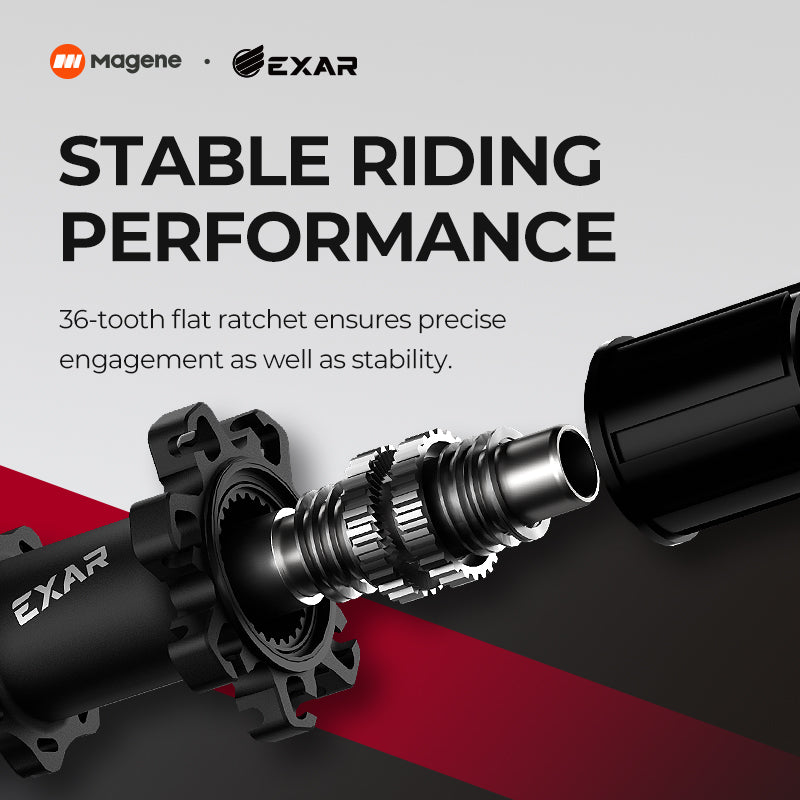

✔ Hub: Ceramic bearings, 36T flat ratchet (DT-compatible, replaceable); front 21H 2:1, rear 21H 2:1

✔ Axle Spacing: 100/142mm thru-axle

✔ Freehub: Shimano 11-speed (standard) or SRAM XDR; Campagnolo N3W available separately

✔ Cassette Compatibility: Shimano 8–12s; SRAM 8–12s (XDR freehub for 12s); Campagnolo 8–13s (N3W freehub required)

✔ Tyres: Tubeless or clincher; 25c and wider, 28–32c suggested

✔ Max Tyre Pressure: Clincher 120 / 110 / 100 / 90 psi (25 / 28 / 30 / 32c); tubeless 110 / 100 / 90 / 80 psi

✔ Includes: Front and rear wheel, 2 x tubeless rim tape, 50 x rim plugs, 2 x tubeless valves, manual

Kindly note: stock availability shown online may not be up to date. Please WhatsApp us to confirm before ordering.
