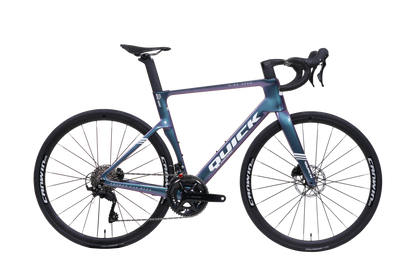

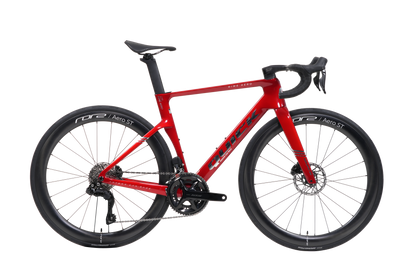

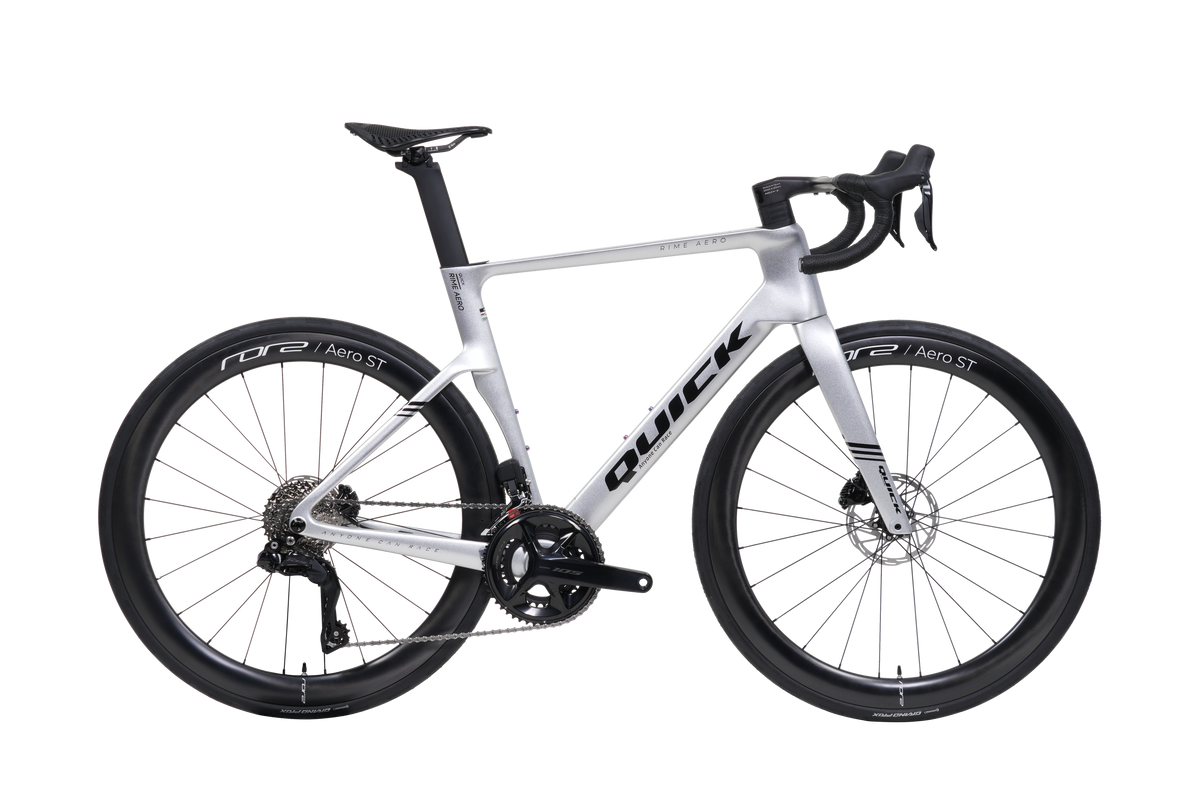

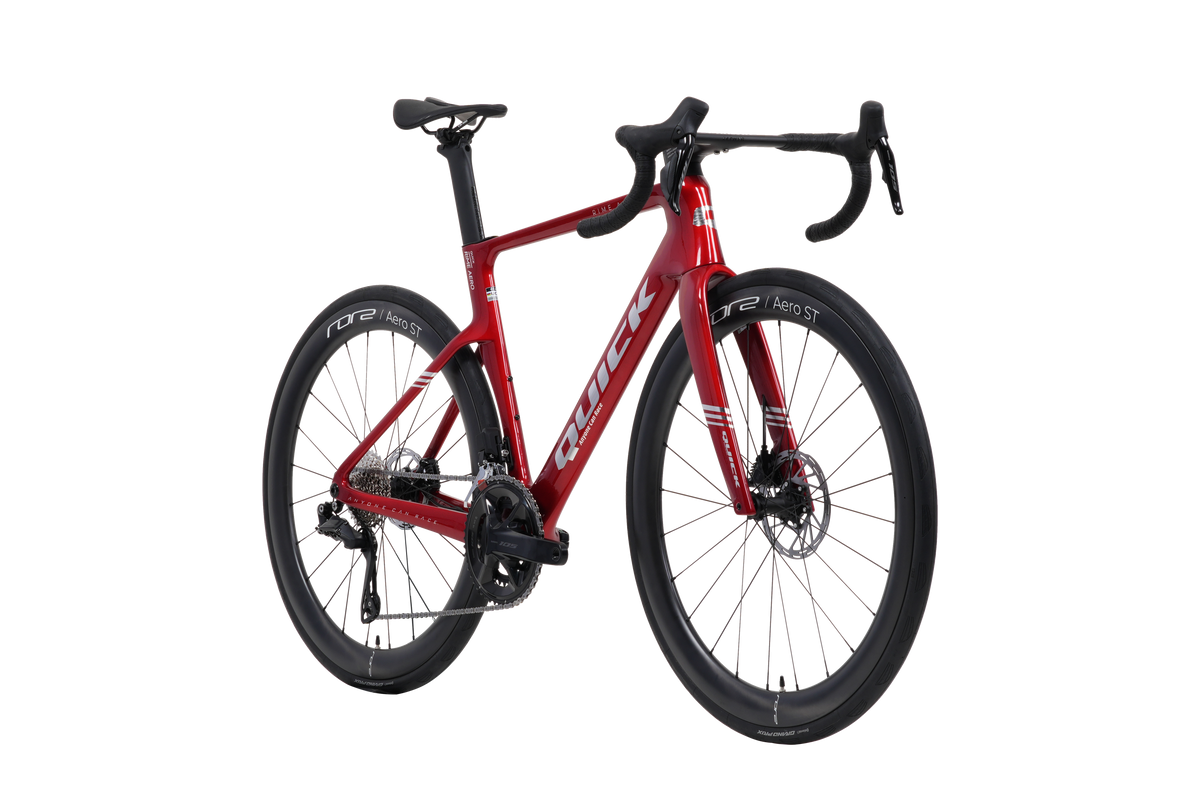

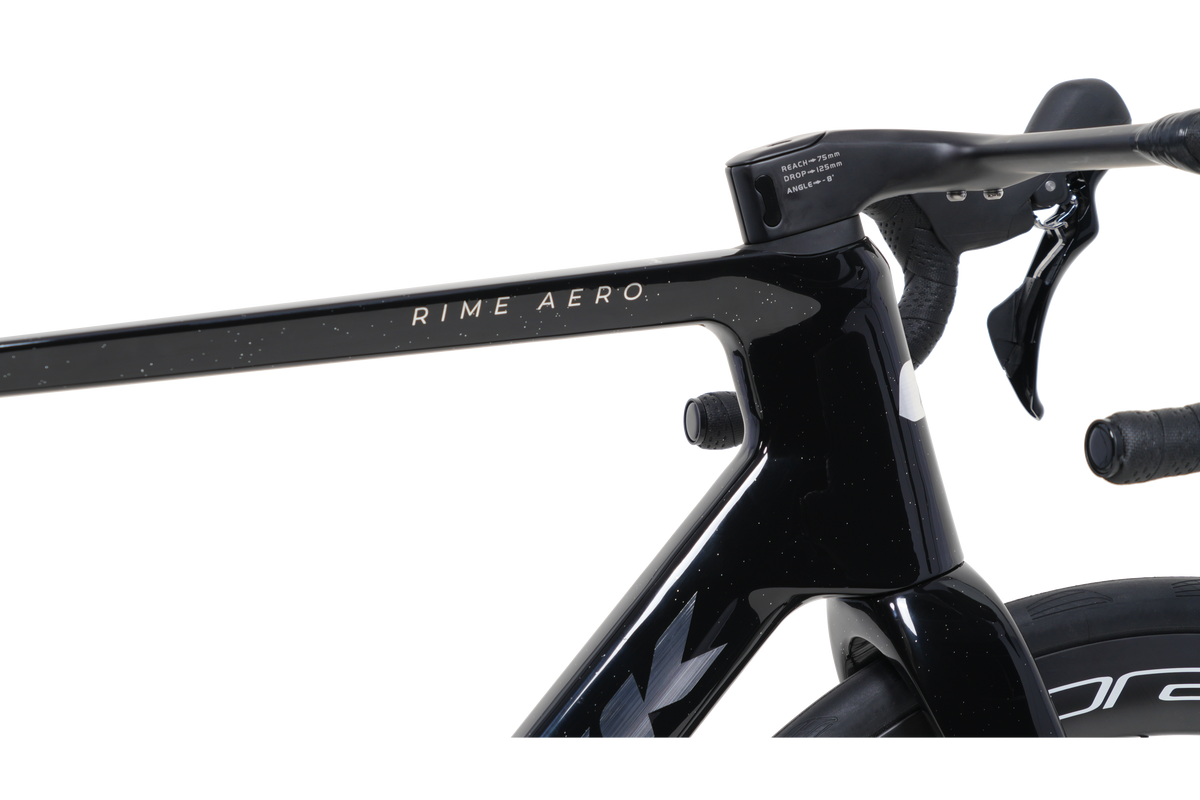

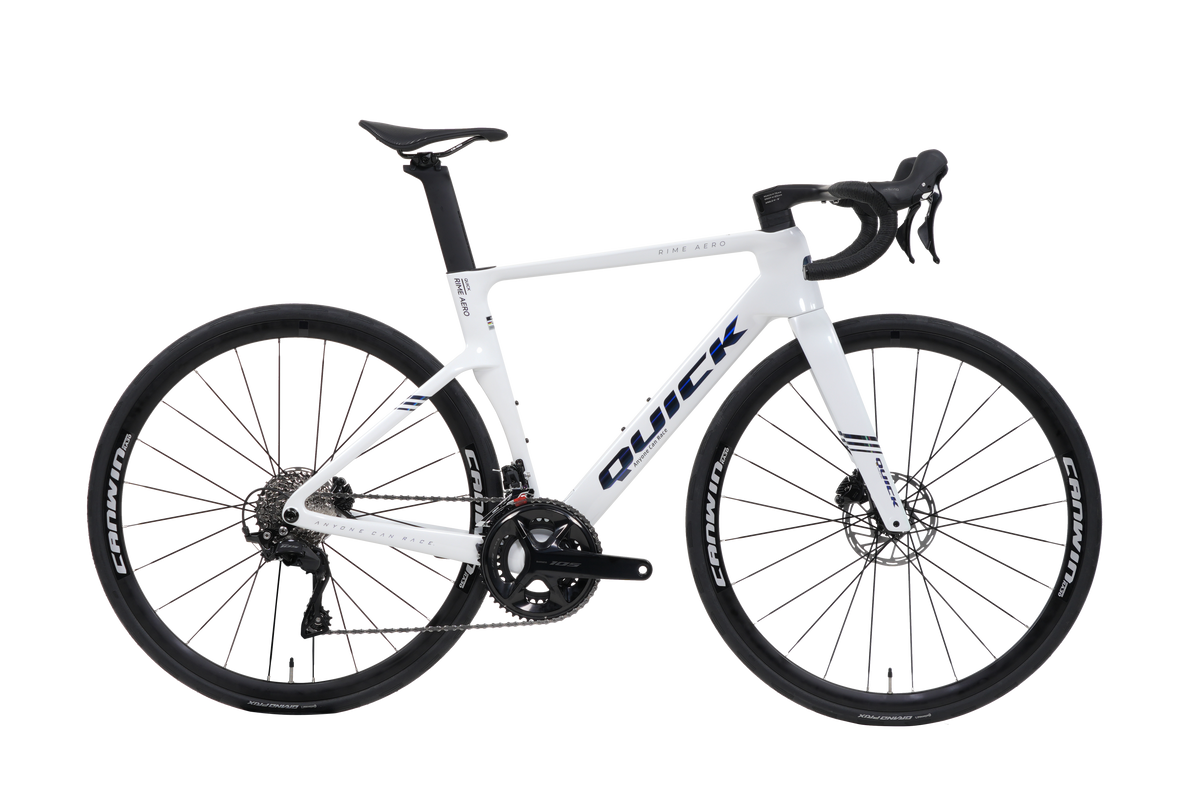

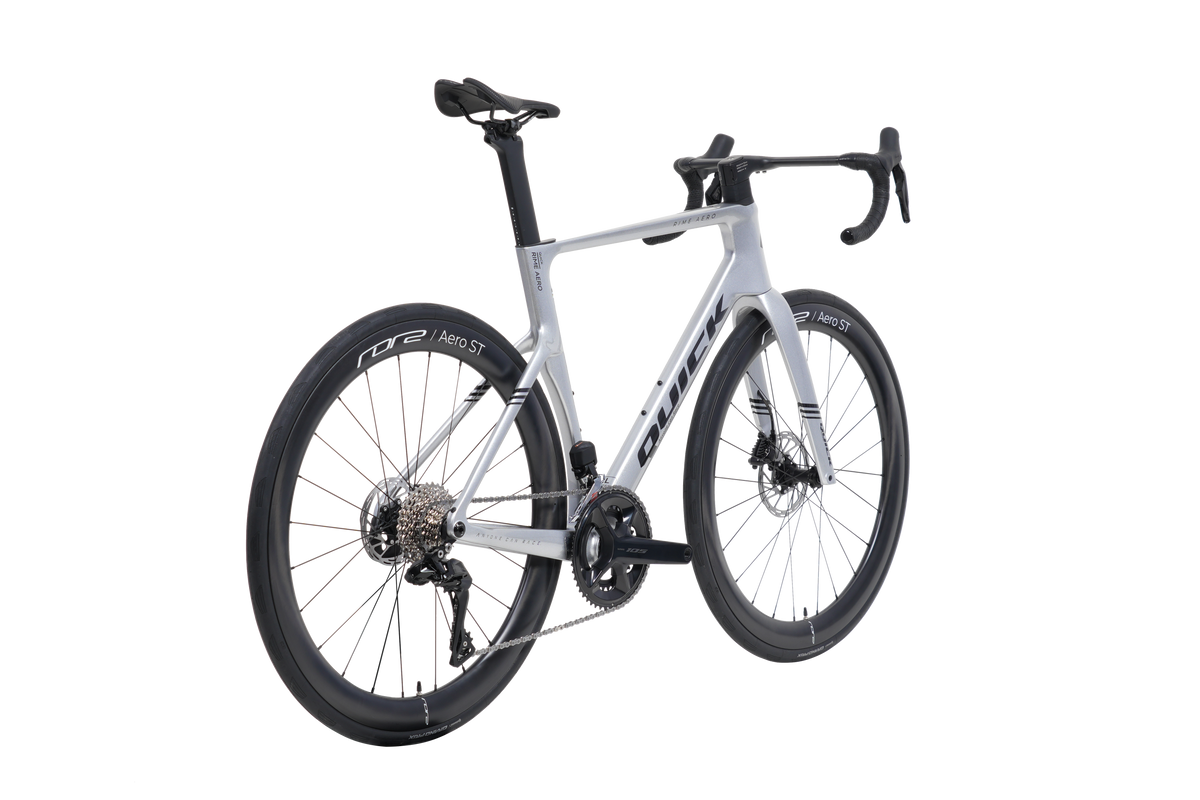

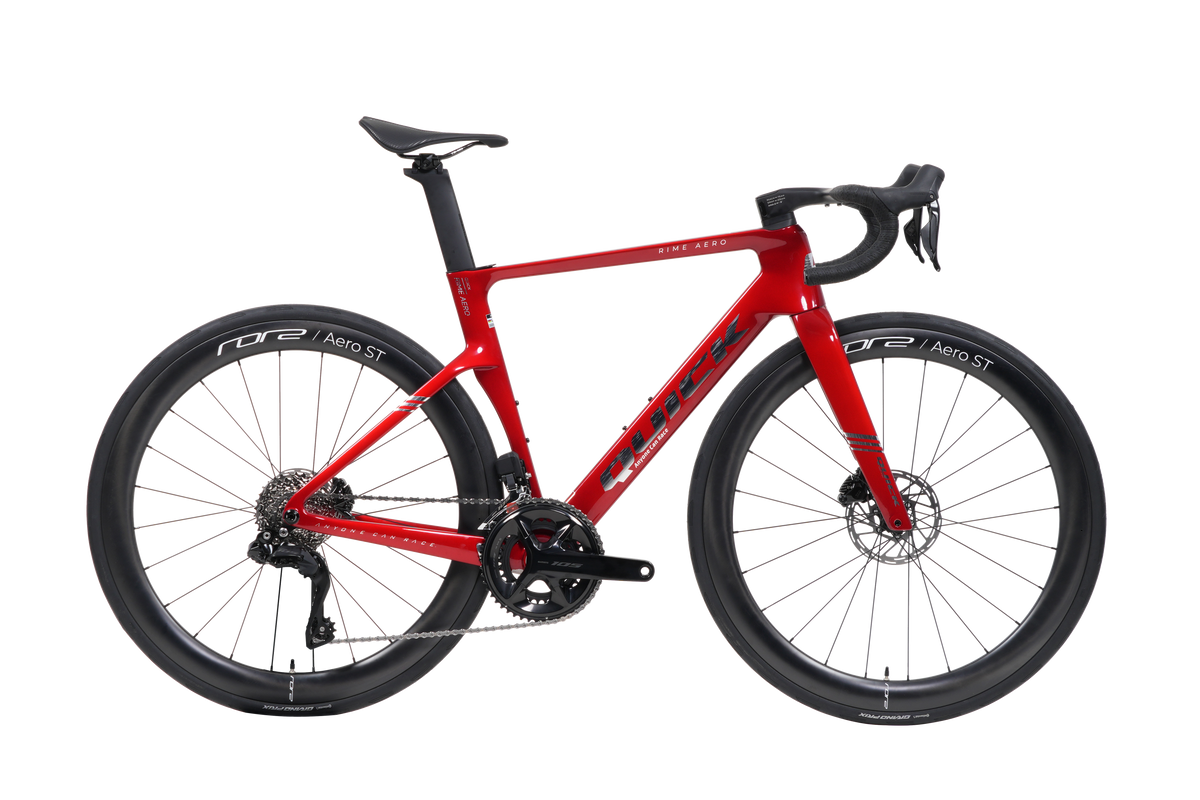

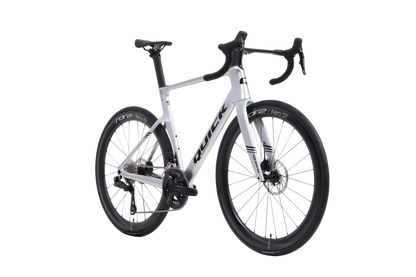

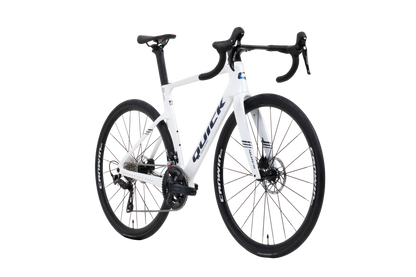

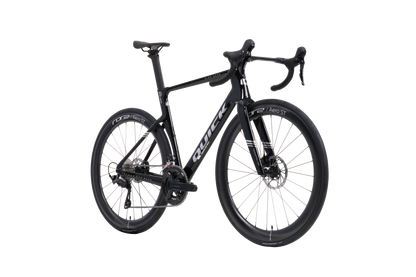

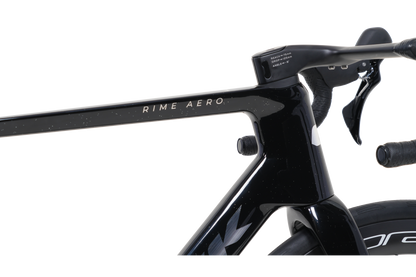

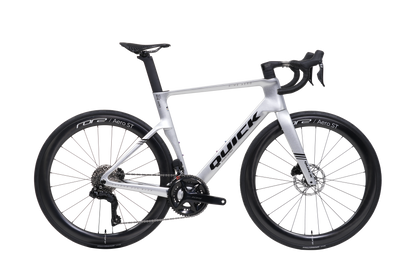

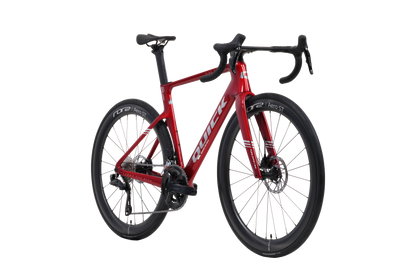

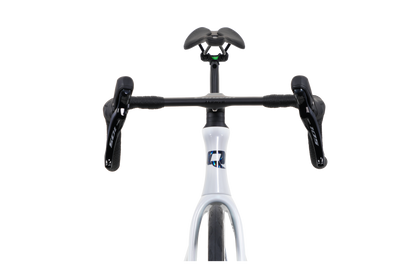

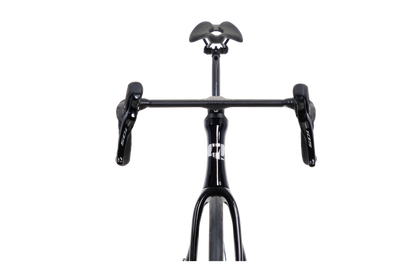

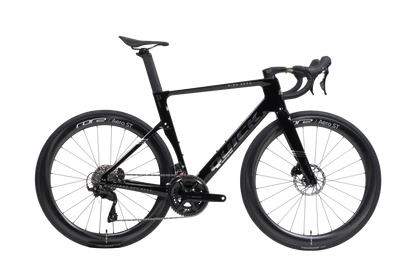

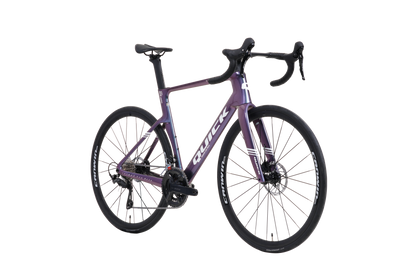

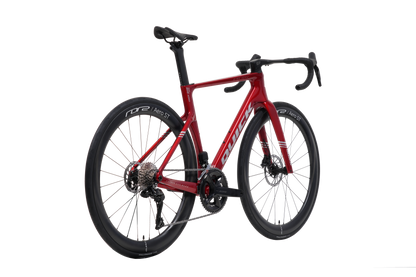

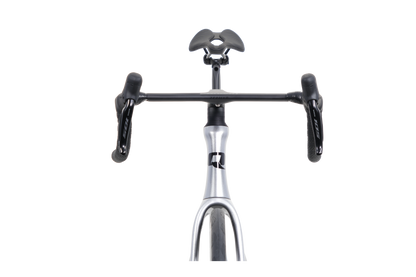

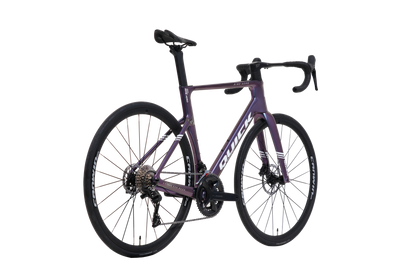

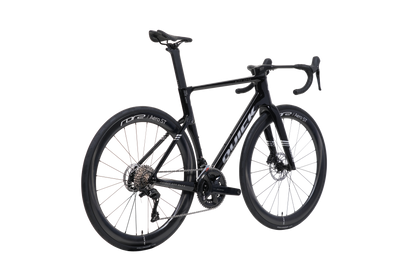

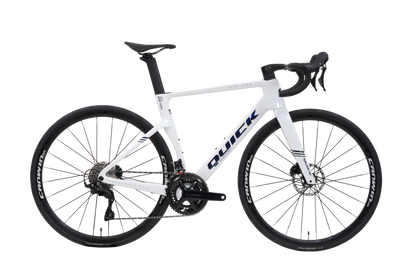

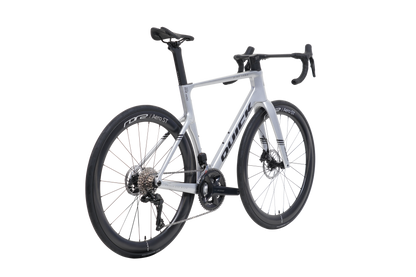

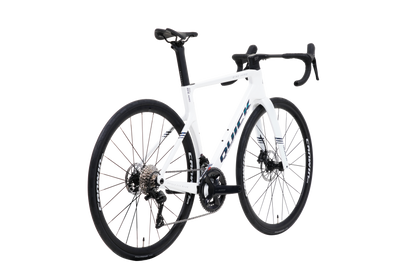

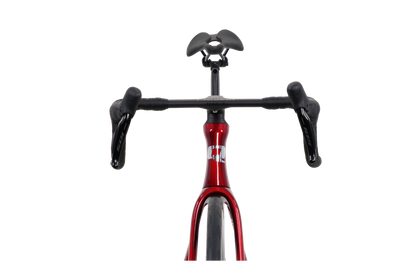

The RIME AERO brings Quick Pro's aerodynamic frame design to a more accessible price point. Streamlined tube profiles help hold speed with less effort, and the race geometry keeps the handling sharp and the power transfer direct — it's built for fast group rides, sprints and racing rather than all-day comfort.
The frame uses a T700/T800 + M46 carbon layup, which is a different platform from the Blade and ER:ONE. Hydraulic disc brakes give consistent braking in the wet, and the full Shimano 105 R7170 Di2 12-speed electronic groupset handles shifting.
To keep the price where it is, the RIME AERO comes in fixed paint finishes with a set cockpit — custom paint and custom cockpit options aren't available on this model.
Key specifications
Model
Rime Aero
Material
T700/T800 & M46 carbon
Headset
52 x 52 mm
Bottom bracket
T47-85.5 mm threaded
Thru-axle
Front 100 x 12 mm / Rear 142 x 12 mm
Max tyre
≤ 35c
Brakes
Flat mount disc
Frame weight
1159 g (±5%)
Fork weight
469 g (±5%)
Wheels
RORE Aero ST50
Tyres
700 x 28c

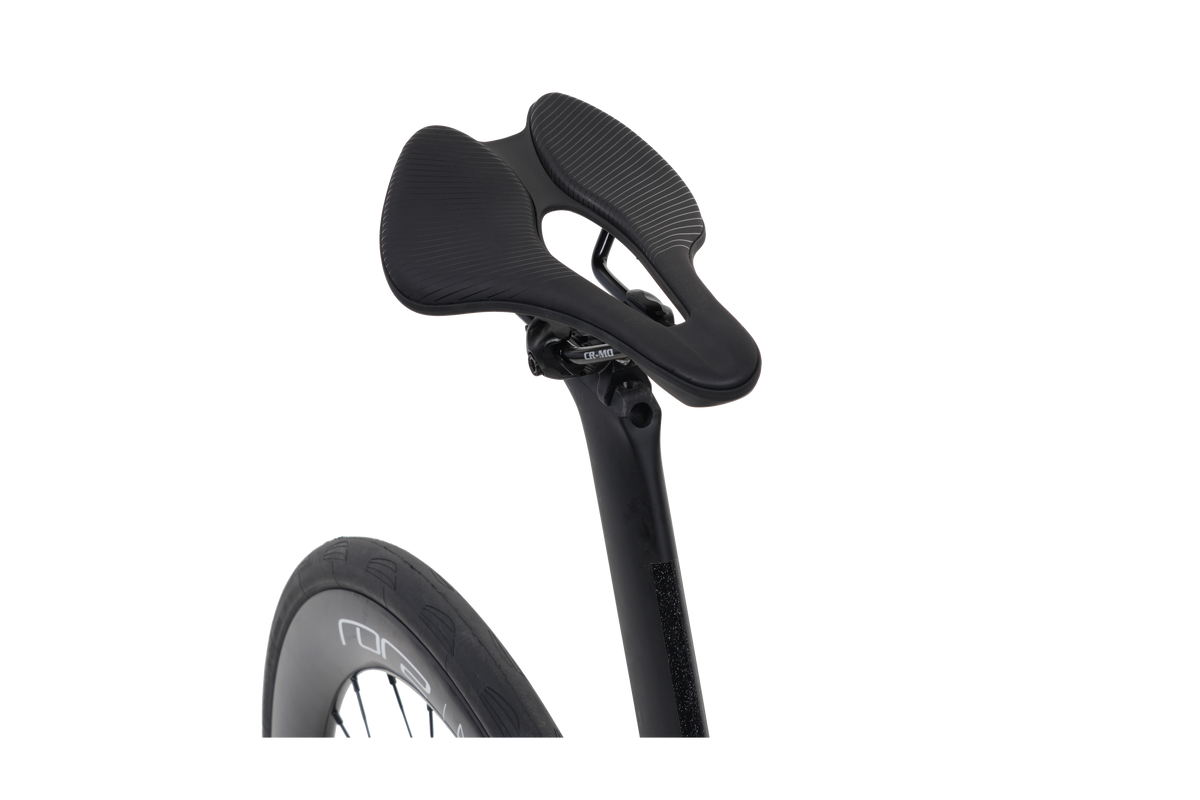

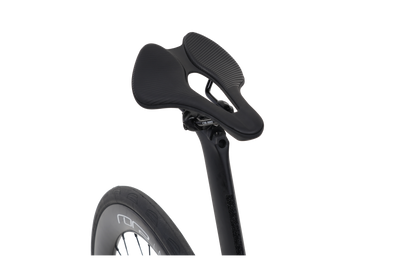

Saddle
Selle Italia Model X Light

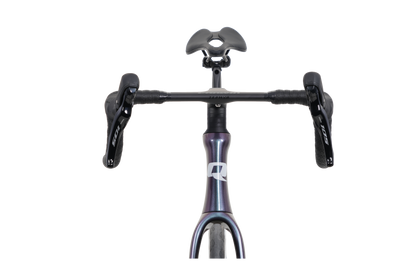

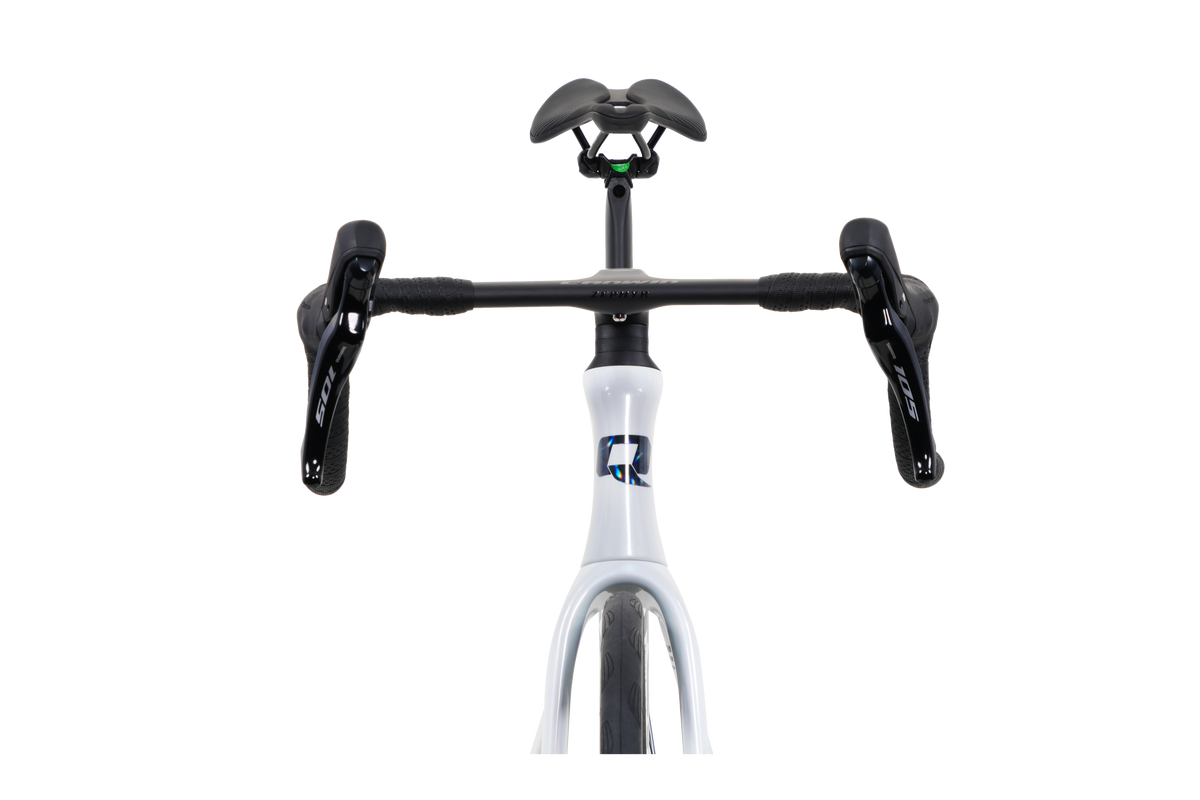

Handlebar
CANWIN Zephyr SL
Groupset
Shift levers
Shimano ST-R7170
Front derailleur
Shimano FD-R7150
Rear derailleur
Shimano RD-R7150
Cassette
Shimano CS-R7101-12 (11–34T)
Chain
Shimano CN-M7100
Crankset
Shimano FC-R7100, 50/34T — 165 mm or 170 mm crank length
Brake calipers
Shimano BR-R7170 (front and rear)
Rotors
IIIP&RO CL — 160 mm front / 140 mm rear
Geometry
Ref
Specification
S / 460
M / 490
L / 520
XL / 550
A
Seat tube length (mm)
460
490
520
550
B
Effective top tube (mm)
531.6
541.7
561.8
577.3
C
Seat tube angle (°)
74
74
73.5
73.5
D
Head tube angle (°)
72.5
72.7
73
73
E
Head tube length (mm)
120
140
160
183
F
Chainstay length (mm)
410
410
410
410
G
Wheelbase (mm)
974.5
983.9
996.2
1012
H
Fork offset / rake (mm)
45
45
45
45
I
BB drop (mm)
74
72
72
72
J
Fork length (mm)
370
370
370
370
K
Standover height (mm)
742
769
796
822
—
Reach (mm)
380
385
394
403
—
Stack (mm)
528.6
546.4
566.5
588.5
—
Stack-to-reach (STR)
1.39
1.41
1.43
1.46
—
Handlebar width & stem (mm)
380-90
380-100
380-110
400-120
—
Seatpost (cm)
35
35
35
40
Not sure on size? Send us your current bike geometry or your fit report and we'll go through it with you before you order.
